Sar Posted October 31, 2005 Share Posted October 31, 2005 It's one of those modeling myths that a double action is better than a single. It's perhaps telling that most double-action airbrushes feature that trigger-limiter on the barrel that allows you to set them up and use them essentially like a single-action... ;-) Quote Link to comment Share on other sites More sharing options...

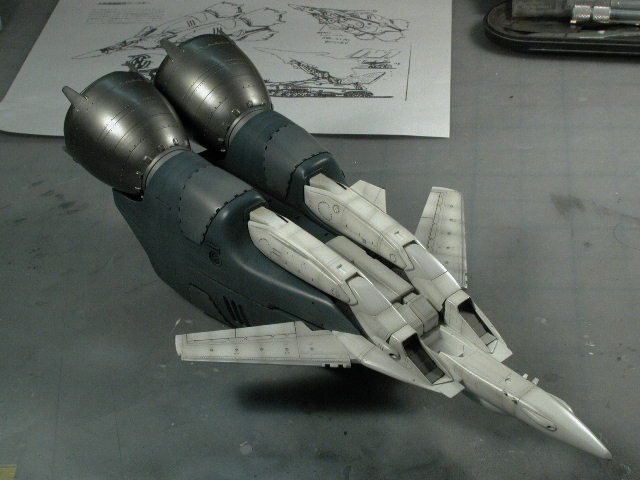

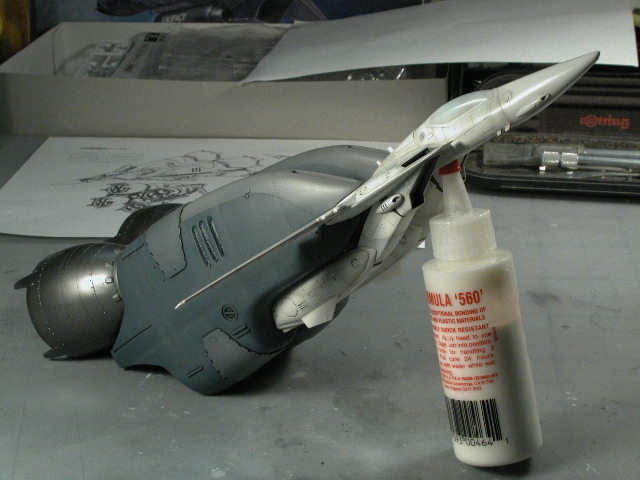

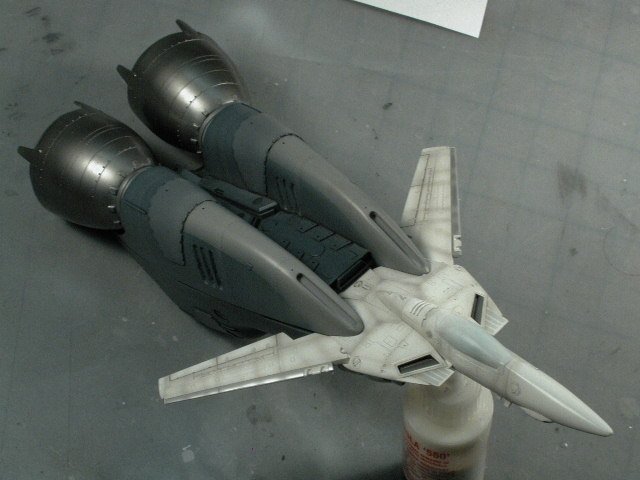

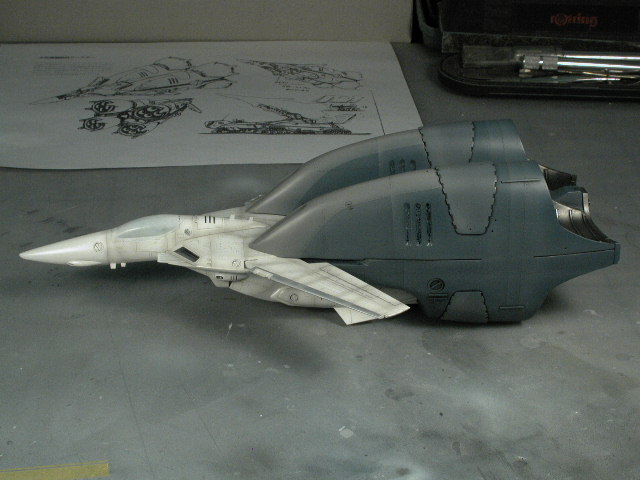

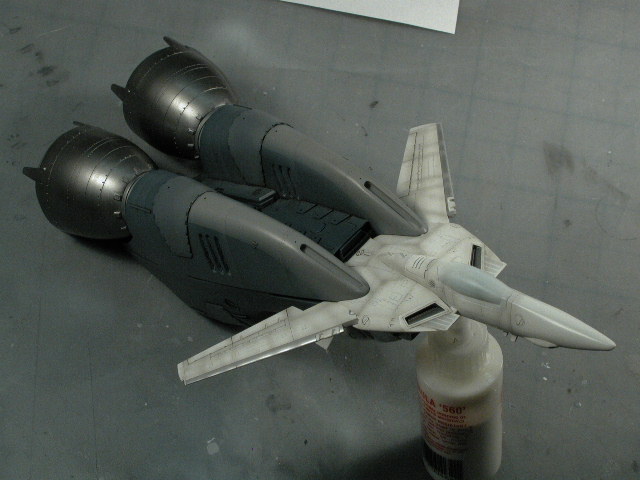

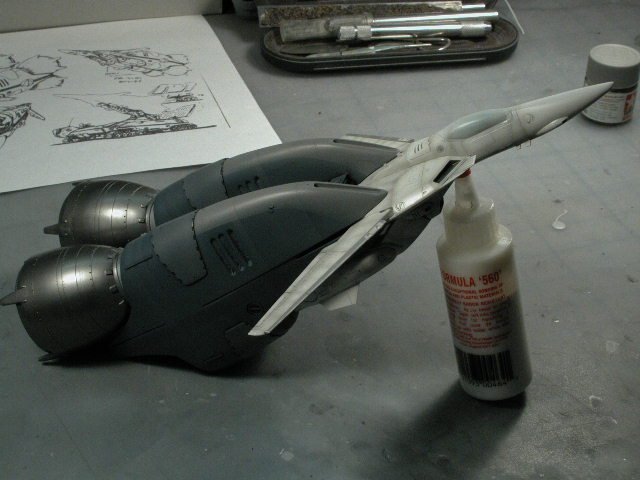

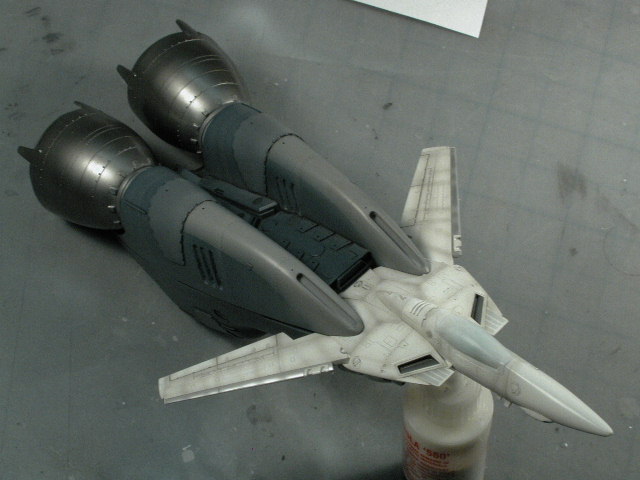

wm cheng Posted October 31, 2005 Author Share Posted October 31, 2005 OK, everybody - I'm so excited, I just got the resin launch arm kit that Gundamhead and Jesse produced! and promised them that I'd drop this to start on their wonderful kit. It shouldn't take too long - and I will resume the Booster when I finsh their kit (I already have a Max VF-1A Super ready for it). So here are a few parting shots of the stage at where I am for now. The Valk is ready for decals and the Boosters are ready for the black stripe to be painted on and decals as well. I plan on doing the engine bell metallic shading with all those shades of burnt metal at the end - that will take the longest. Join me over at the Launch Arm thread!! Quote Link to comment Share on other sites More sharing options...
Berttt Posted November 13, 2005 Share Posted November 13, 2005 Now that all the things that have been getting the in the way of my version of this project, I can start to post some more updates. ATM I am just fixing a few spots with the white paint on the Valkyrie itself, then I will be ready for weathering. Cheers, Berttt Quote Link to comment Share on other sites More sharing options...
Viceland Posted November 27, 2005 Share Posted November 27, 2005 (edited) Ok, the Launch-Arm-Work-of-Art is done. No rest for the wicked modeler! time to get back to this baby, chop chop! (Wicked as "extremely awesome", not wicked which implies that the devil will not allow wm cheng to rest from his evil doings, er... modeling . But then, how do we know wm cheng has NOT sold his soul to the devil in exchange for jaw-droping talent in the scale modeling hobby? ) *Look who's avatar is talking! Edited November 27, 2005 by Viceland Quote Link to comment Share on other sites More sharing options...

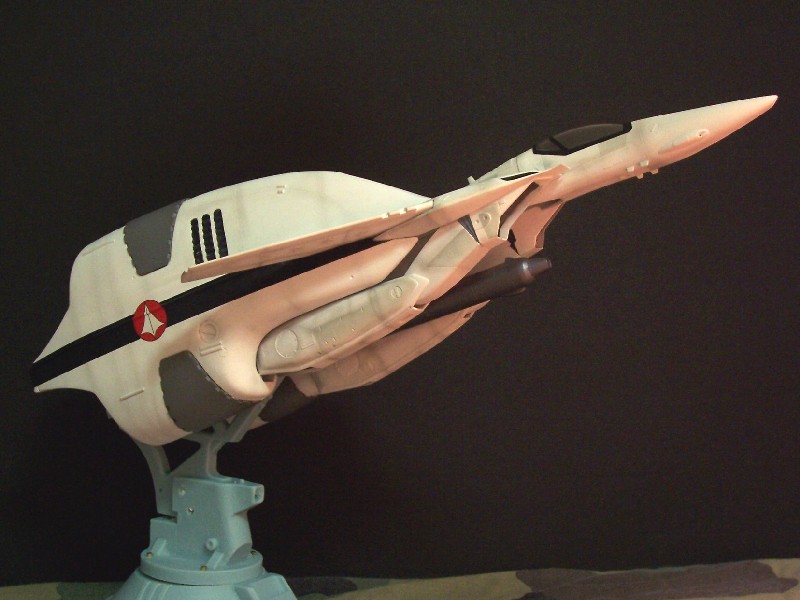

Berttt Posted November 28, 2005 Share Posted November 28, 2005 A quick update pic. The weather here is overcast so it is a bit hard for me (an amatuer) to get suitable shots. Initial weathering is done. Decals are next before further weathering and finishing the cockpit. Cheers, Berttt Quote Link to comment Share on other sites More sharing options...

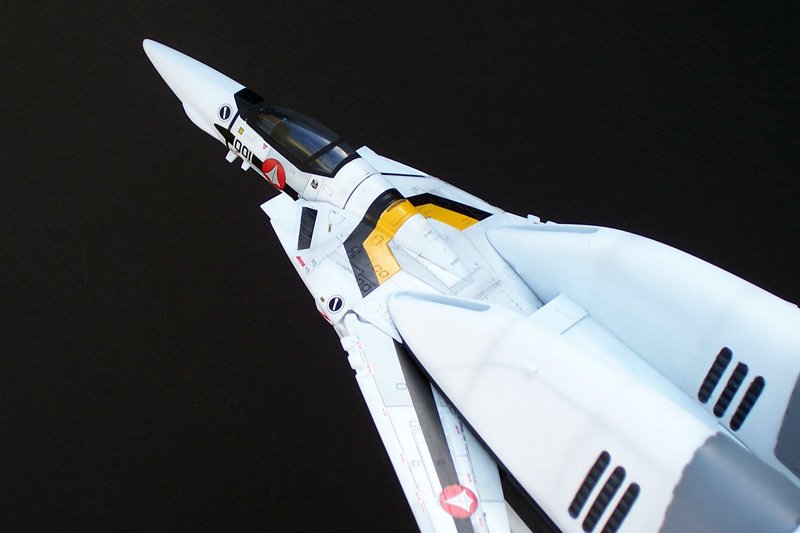

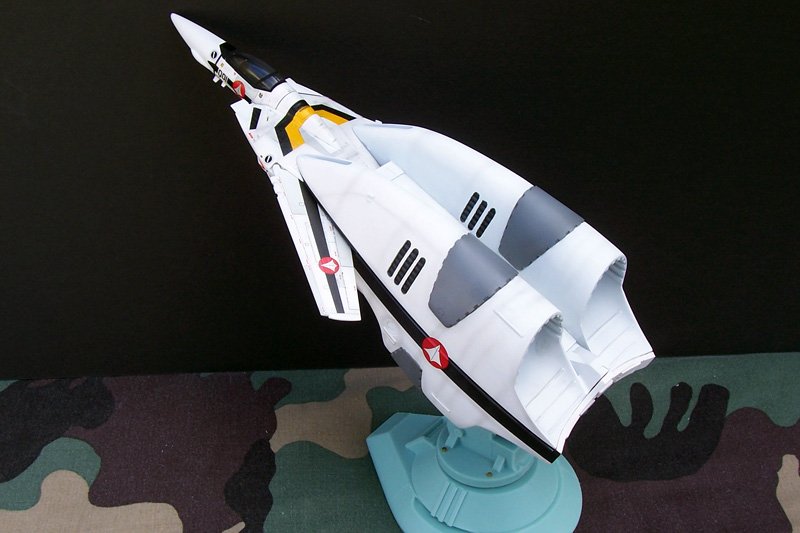

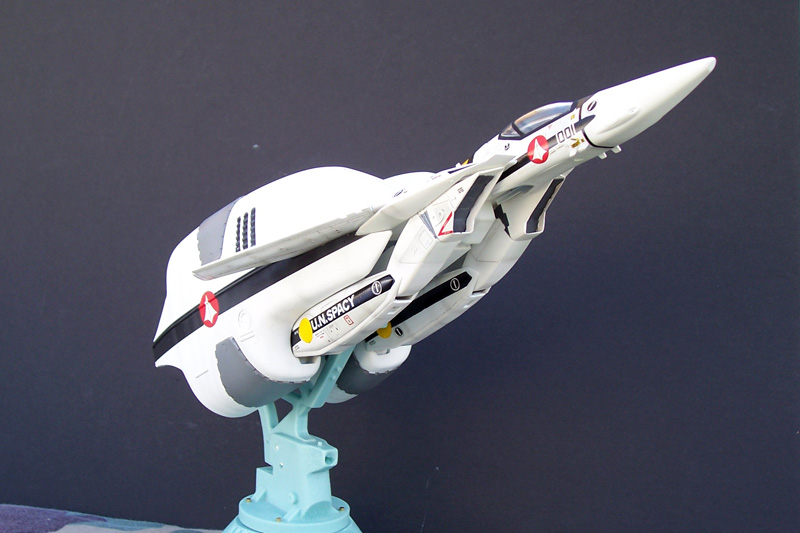

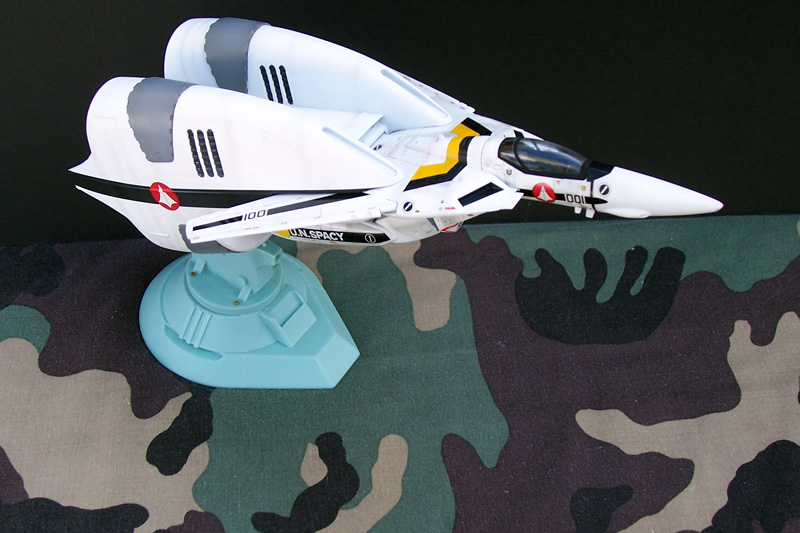

Berttt Posted December 11, 2005 Share Posted December 11, 2005 Some more pics woth most of the decals on: Thw wings are not yet attached permanantly and there is still weathering. cockpit and engines etc. to be done. Slow going. Cheers, Berttt Quote Link to comment Share on other sites More sharing options...
Knight26 Posted December 11, 2005 Share Posted December 11, 2005 Wow both of those look great Quote Link to comment Share on other sites More sharing options...
kensei Posted December 11, 2005 Share Posted December 11, 2005 That really is excellent work Bertt, I'm lovin it! Quote Link to comment Share on other sites More sharing options...
Chewie Posted December 29, 2005 Share Posted December 29, 2005 You guys are AMAZING. The guys who made them, build them, paint them. ALL of you. I wish I had a single ounce of the talent you guys show. Truly baffling. /bow Quote Link to comment Share on other sites More sharing options...
Berttt Posted December 31, 2005 Share Posted December 31, 2005 (edited) Chewy the trick is to use as many of WM's tips as you can (as well as others) I have plagerised many of thses techniques to get the result you see. Cheers, Berttt Edited December 31, 2005 by Berttt Quote Link to comment Share on other sites More sharing options...

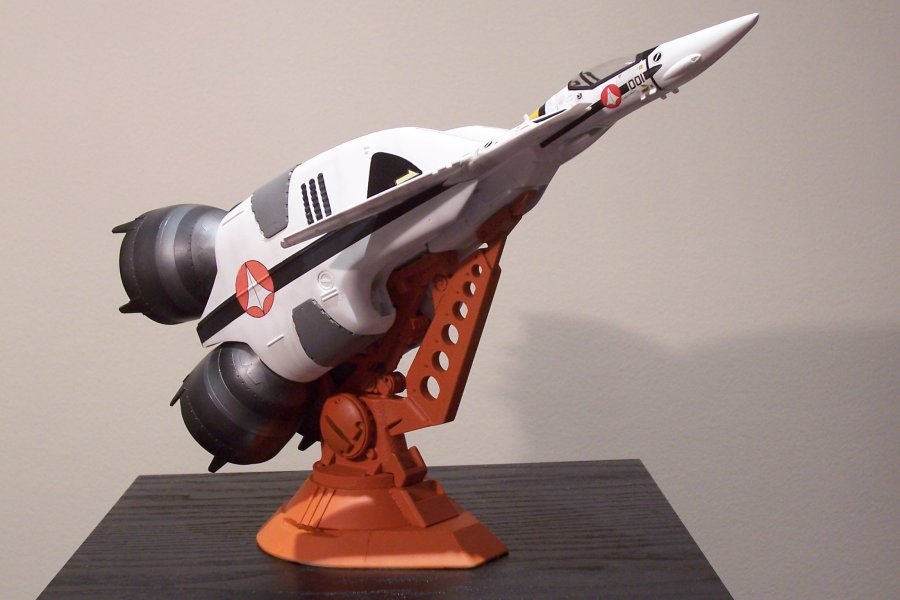

Berttt Posted January 8, 2006 Share Posted January 8, 2006 Quick update. All I have to do now is finish weathering the launch arm, attach the amrs wing and legs, fit the cockpit ans she's done. Cheers, Berttt Quote Link to comment Share on other sites More sharing options...
robokochan Posted January 8, 2006 Share Posted January 8, 2006 Wow Brettt! That looks awesome! Rob Quote Link to comment Share on other sites More sharing options...
007-vf1 Posted January 8, 2006 Share Posted January 8, 2006 Yes indeed. Nice model. Post other angles when you have it finished... Where's the pilot?? Quote Link to comment Share on other sites More sharing options...
MechTech Posted January 8, 2006 Share Posted January 8, 2006 Looks great! Great coloring on the nozzles. Just add fuel and space now! Quote Link to comment Share on other sites More sharing options...
masterqq Posted January 11, 2006 Share Posted January 11, 2006 Wow look great ... and very inspiring, in fact, I have to watch the series again on the episode with booster after seeing your model.. Quote Link to comment Share on other sites More sharing options...

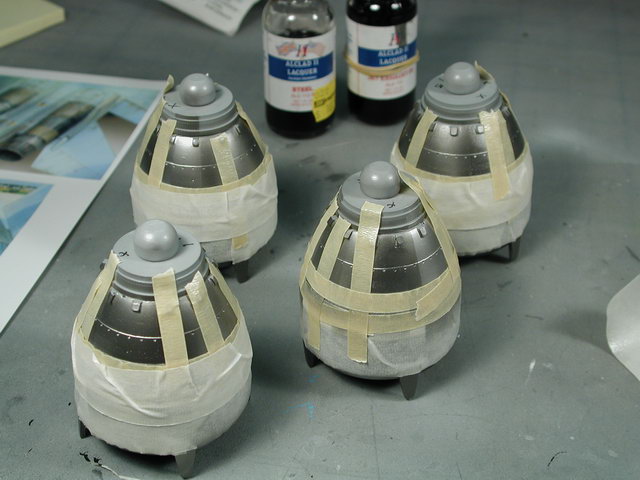

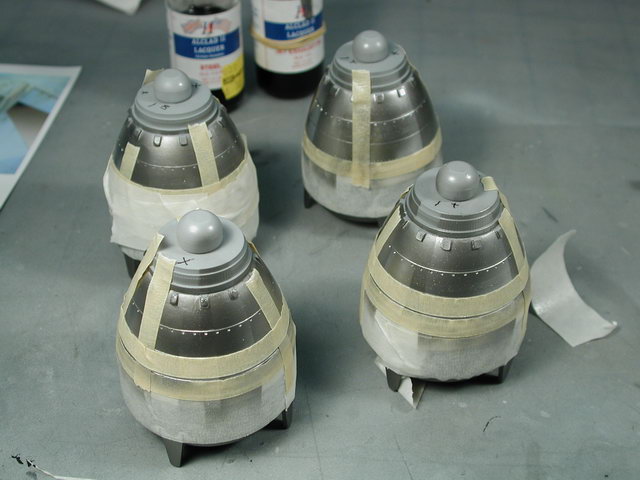

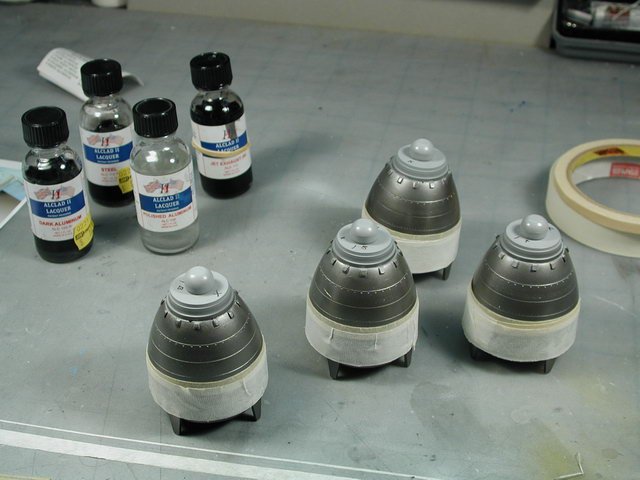

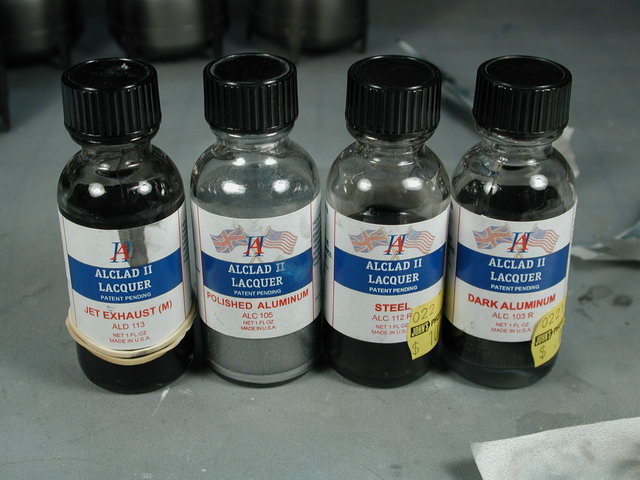

wm cheng Posted January 31, 2006 Author Share Posted January 31, 2006 That looks great Brett! Well, got a little time to get back to work on these Boosters. I wanted to experiment - learn to age/weather the booster nozzles like the SU-27 references I got from the tips section of ARC (Aircraft Resource Center). So I started to layer up the multiple shades of metallics I had lying around. First I masked off the nozzles starting with the bottom working my way up towards the front. I only had on hand four Alclad colours. Quote Link to comment Share on other sites More sharing options...

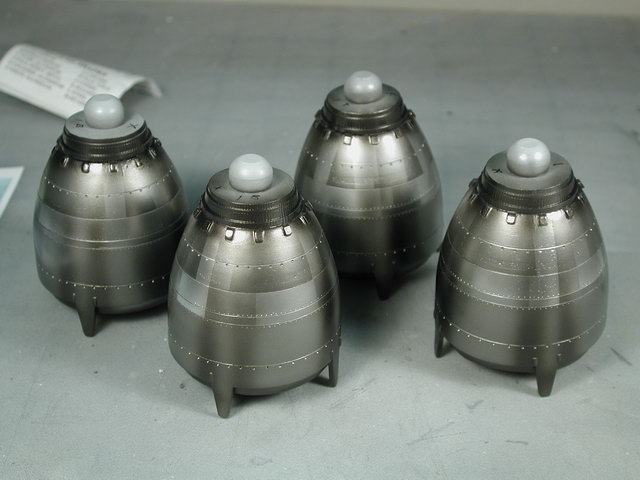

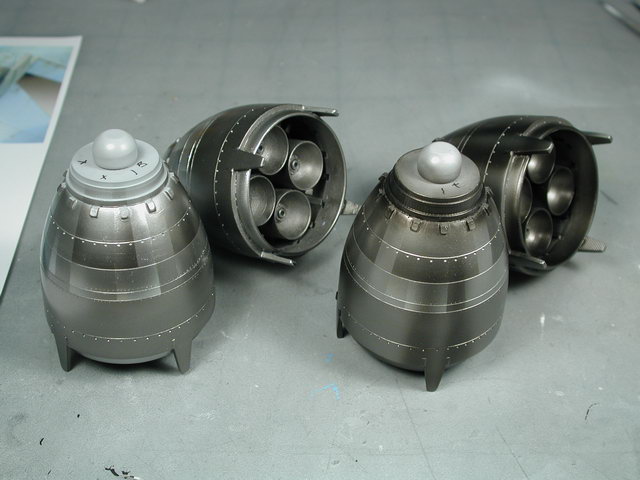

wm cheng Posted January 31, 2006 Author Share Posted January 31, 2006 Using the Captn's scribed rings as a guide, I sprayed varying patterns as I moved forward - I masked the next section, trying to make a random plated pattern. Quote Link to comment Share on other sites More sharing options...
wm cheng Posted January 31, 2006 Author Share Posted January 31, 2006 For the real anal freaks out there - I guess I should of applied a thin coat of Mr. Surfacer to seal in some of the resin surface imperfections, but I didn't mind it, it will give it a worn patina when I'm done with the weathering. I've been asking myself whether I should weather or not, since the Booster is probably not a re-usable piece of equipment, so the engine bells should look new. But hey, I've been dying to try out the SU-27 techniques, its more fun to weather, and it gives it a sense of scale. Now I took the last colour; Jet Exhaust and started to airbrush burnt markings and streaks and darkening the tips of the bell nozzles with this colour. Quote Link to comment Share on other sites More sharing options...

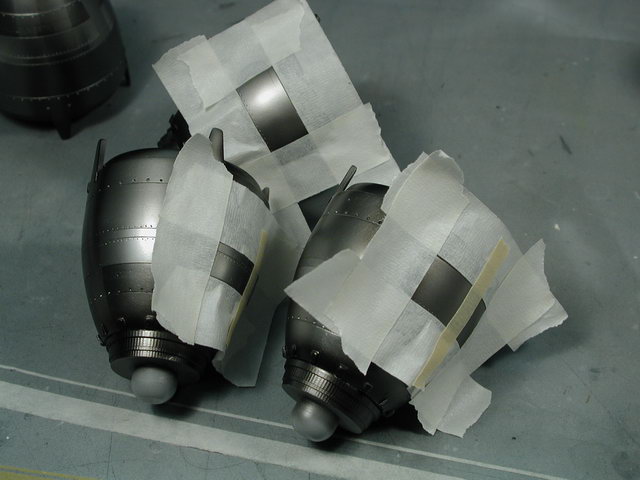

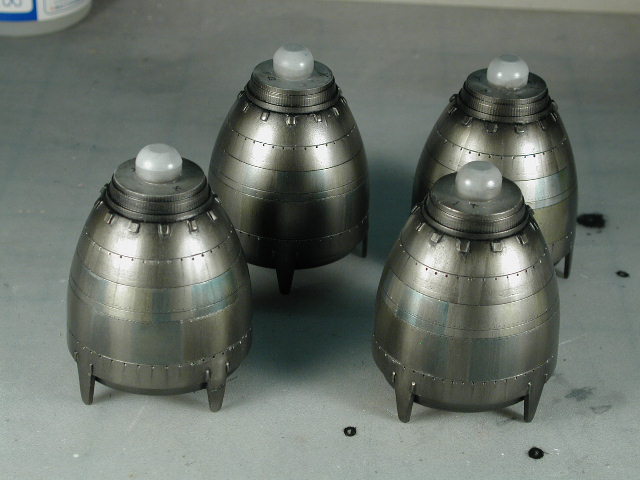

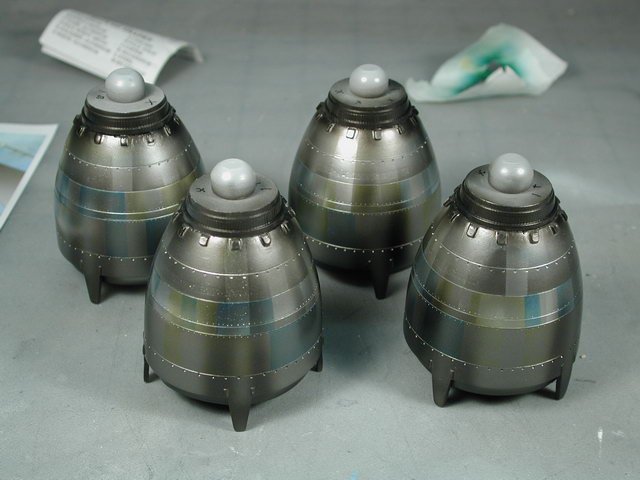

wm cheng Posted January 31, 2006 Author Share Posted January 31, 2006 Now to add the clear blue and yellow to various panels to denote different materials and various stages of burnt staining. I masked off a few panels, and I reused these masks in various places to get all the "random" panels. Then I thinned down Tamiya Blue Clear and Yellow Clear and lightly sprayed in the panels. I think I might of over done it with the blue, but the yellow looks convincing. Although the panels might seem a little too random. However, I'll reserve judgement till after I weather it, I may need them to be a little overly contrasty or strong for it to show through after the weathering. Quote Link to comment Share on other sites More sharing options...

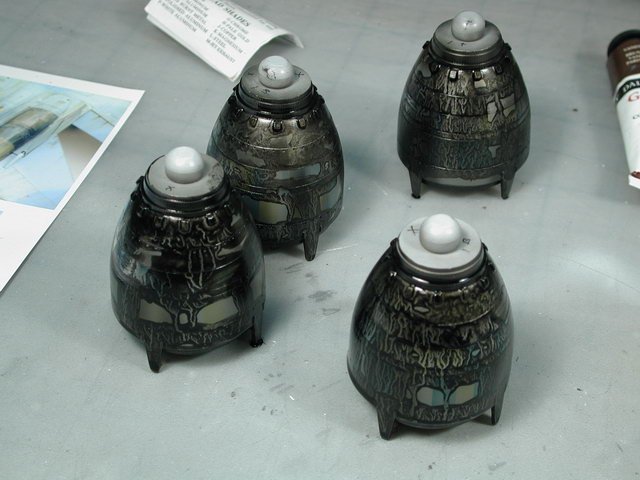

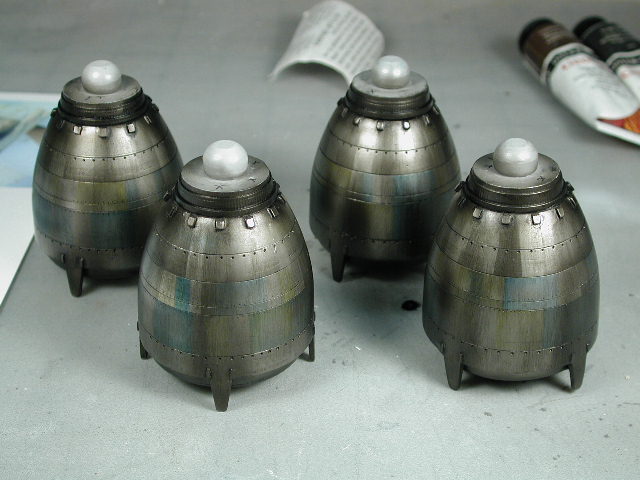

wm cheng Posted January 31, 2006 Author Share Posted January 31, 2006 Now I've applied a thick black oil wash over most of the bell nozzles. It will seep into all the rivet and scribed details as well as provide a darker base for me to wipe away to reveal the metal panels below. I made the wash much thicker than I usually do, because I want some of it to stay behind (not just in the crevices). Now I'll let it dry over night (so it doesn't all get wiped away so easily). Quote Link to comment Share on other sites More sharing options...
Ignacio Ocamica Posted January 31, 2006 Share Posted January 31, 2006 The nozzles are turning out great!!! Thank you very much for this how to, master cheng Quote Link to comment Share on other sites More sharing options...
wm cheng Posted January 31, 2006 Author Share Posted January 31, 2006 Thanks, I tried to wipe some more excess oil wash away today - but even after 24hrs, its still too wet (I guess I laid it on a little too thick) it just smears... a little too evenly. I wanted sections to wipe off while leaving other sections intact - when its too wet, it just evenly smears - so I just wiped in the airflow direction so that the smear lines are in a single direction and I will have to wait till tomorrow. Hoping that it will dry more thoroughly - and I can remove some of it in patches. Quote Link to comment Share on other sites More sharing options...
Sdf-1 Posted January 31, 2006 Share Posted January 31, 2006 Wow, they look just amazing already. Especially the different color panels, I just love them. Quote Link to comment Share on other sites More sharing options...
jardann Posted January 31, 2006 Share Posted January 31, 2006 I agree, they're looking pretty good WM! Quote Link to comment Share on other sites More sharing options...
Skull-1 Posted February 1, 2006 Share Posted February 1, 2006 Quick update.All I have to do now is finish weathering the launch arm, attach the amrs wing and legs, fit the cockpit ans she's done. Cheers, Berttt 358433[/snapback] Looks great (as usual). But man, that design looks...well...frightening. What was Kawamori thinking? Quote Link to comment Share on other sites More sharing options...
mojacko Posted February 1, 2006 Share Posted February 1, 2006 wow..nice valk w/ super boosters....excellent work Quote Link to comment Share on other sites More sharing options...

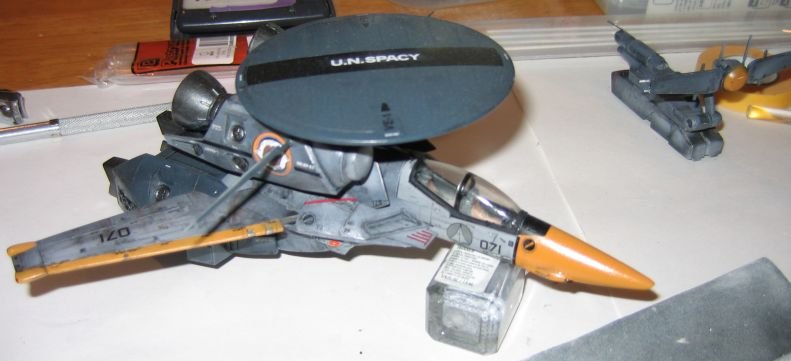

Spatula Posted February 1, 2006 Share Posted February 1, 2006 (edited) THE MASTER HAS RETURNED! Good to see you again, Mr William-Super-Dee-Duper! Remember about my whole fiasco with the Elintseeker where I cried and cried for days and days with the whole putty issue? Well, man it's still waiting patiently for a base for me to mount it on. I'm thinking of getting a round/circular acrylic base about 3/4 inches thick that can be drilled and get a acrylic dowel to support it. I connect the model to the rod with magnets, so I can remove the Valkyrie away from the base whenever I please. Meh, so lonely, what a lonely Elintseeker. (psst, apologies for stealing your thread again...sorries) Meh, okay this one I blame the stupid digi cam. I'm terrible with that thing, so no, the Elintseeker doesn't look nearly as horrible in the pic. Really! Plus all the detail of the panel seems to be gone in the picture. Edited February 1, 2006 by Spatula Quote Link to comment Share on other sites More sharing options...

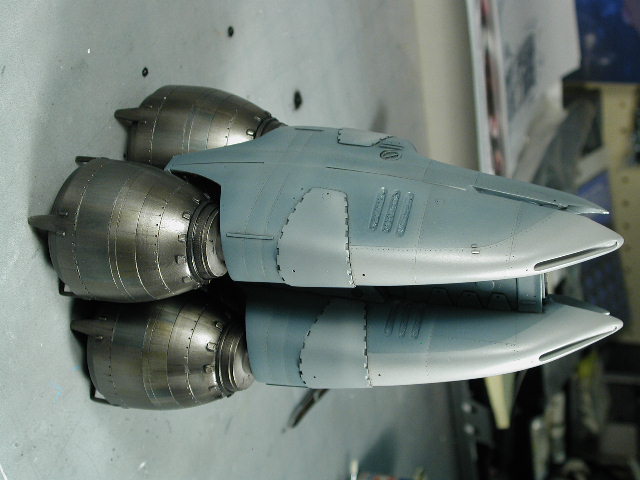

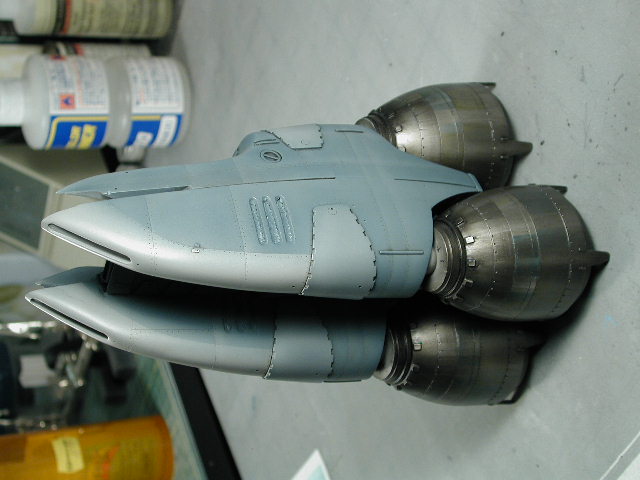

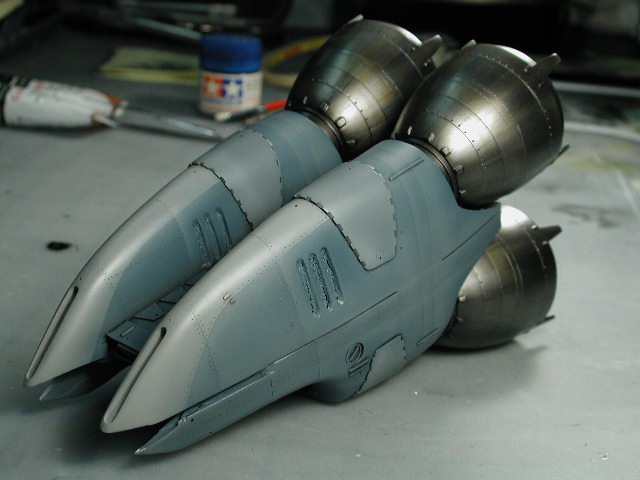

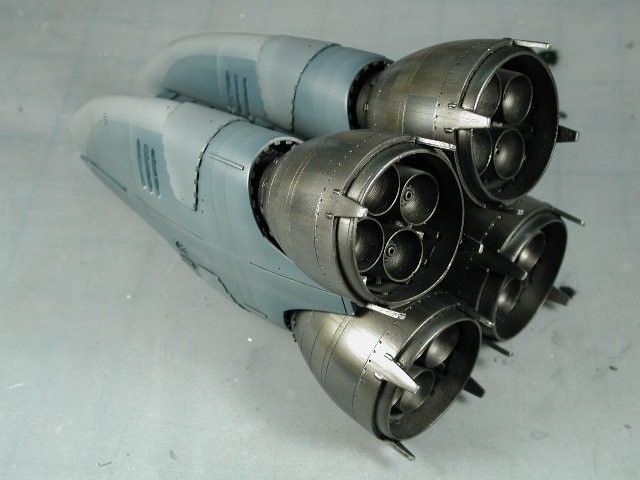

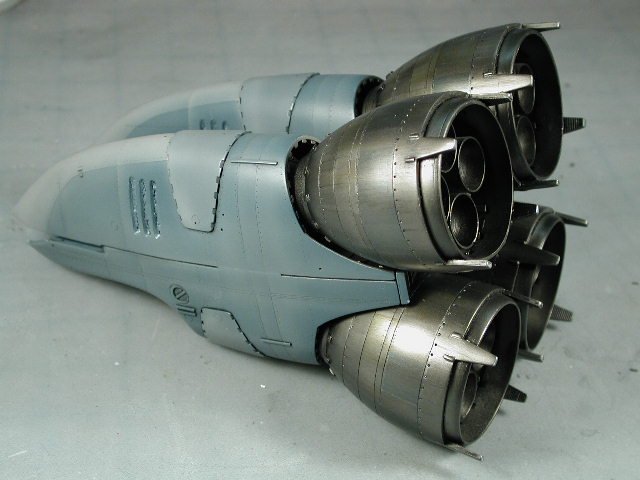

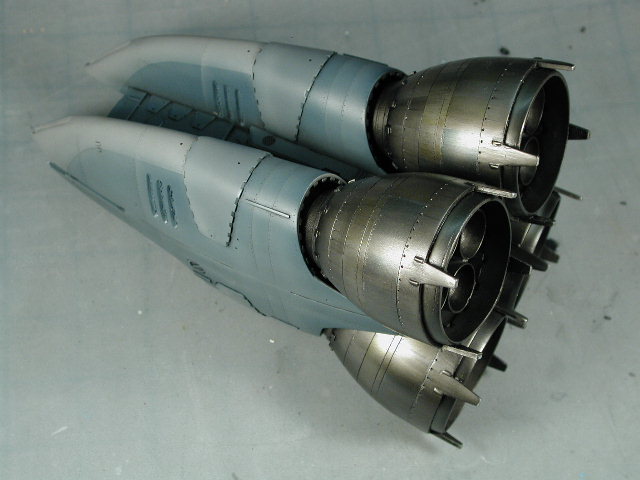

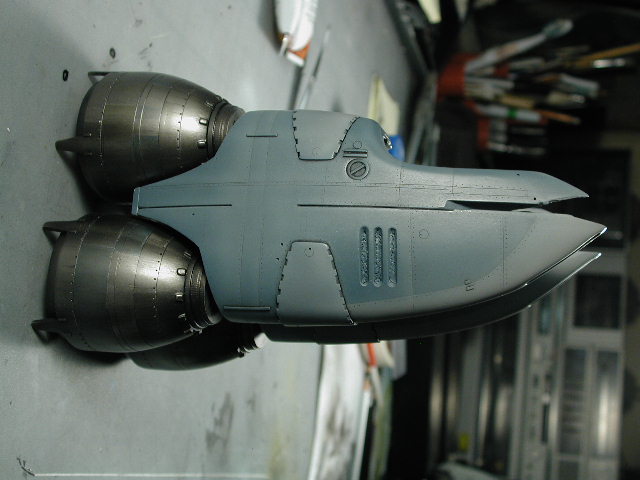

wm cheng Posted February 2, 2006 Author Share Posted February 2, 2006 Hey great to hear you've rescued the melting putty model - how did it dry out? Did you have to fill and resand it or did you just leave it alone and it dried on its own? Good to finally see it, looking good - you should post more photos of it when you get your stand completed. Good idea about the magnet thing for the stand, will it be strong enough? Let me know when you try it, I'd be interested in ripping it off if its sucessful Ok, I added some pencil crayon silver to the edges of the scribbed lines - its pretty subtle though, the pencil was a little too hard to really bite, so it just really cleaned off some of the oil wash at those areas. It wasn't too bad, but it didn't work the way I thought it should. I sealed in the oil wash and pencil crayon and brown/black conte streaks from the boltheads in with another coat of ModelMaster semi-gloss clear. Overall its not too bad, it was a little too heavily weathered (great for rebel starships though...) but when I placed it next to the blue/grey boosters it seemed too heavily used. So I gave the nozzles another dusting of Alclad Steel to brighten it up a bit, tie in all the bluish panels together and hide some of the darker weathering. I like the fact that you can just make out that the nozzles might be made from several different types of metals, instead of one big sheet of some non-descript metal - but it doesn't look patched together from junk. Quote Link to comment Share on other sites More sharing options...

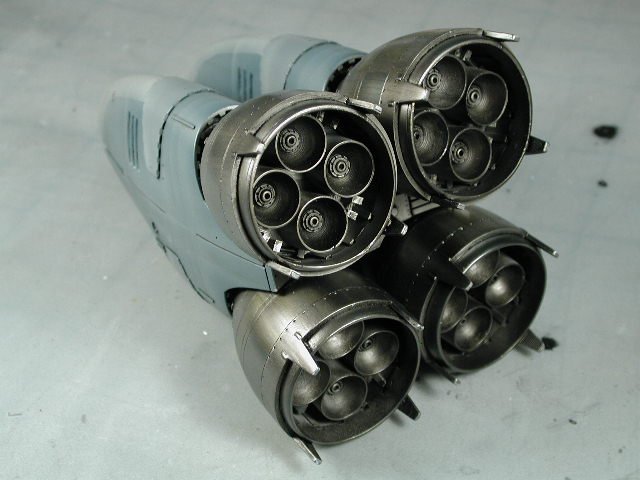

wm cheng Posted February 2, 2006 Author Share Posted February 2, 2006 Yay! finally decals... I think I'll start with the Valkyrie first, then moved my way to the boosters. There's still a final weathering over the decals to tie them all together and a final clear-coat over the decals to protect them, the Boosters will get a final coat of clear flat and some drybrushing before I actually glue the nozzles on. While the Valkyrie will get a semi-gloss final clearcoat and some light grey oil wash over the darker decaled sections. Its important to keep piecing together the various components so that you get a sense of how all the colours and weathering goes together. The blue in the engine bells picks up on the blue in the grey boosters. Can't wait to peel that masking away from the three meshed grilled portions! Its like peeling the canopy masks (the best last steps) Quote Link to comment Share on other sites More sharing options...
Grayson72 Posted February 2, 2006 Share Posted February 2, 2006 The nozzles look amazing man, wow! Quote Link to comment Share on other sites More sharing options...
cobywan Posted February 2, 2006 Share Posted February 2, 2006 They look really nice. I wonder if a little rust inside the engine bell might be appropriate? Quote Link to comment Share on other sites More sharing options...

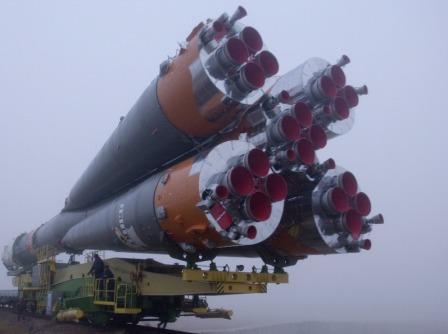

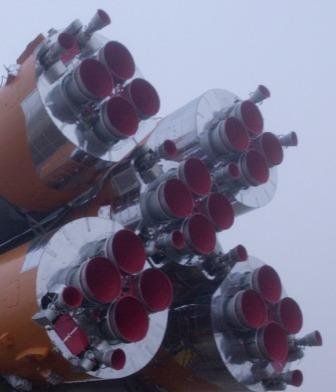

fernarias Posted February 2, 2006 Share Posted February 2, 2006 (edited) Looks good but I would add some color. Here's the russian Soyuz which this booster was probably based on. F. Edited February 2, 2006 by fernarias Quote Link to comment Share on other sites More sharing options...
izzyfcuk Posted February 3, 2006 Share Posted February 3, 2006 that's juz freaking awesome Quote Link to comment Share on other sites More sharing options...
J A Dare Posted February 5, 2006 Share Posted February 5, 2006 Okay, who ever is the new MW admin should be assigned to developing a WM Cheng Buildups Hall of Fame! Quote Link to comment Share on other sites More sharing options...
wm cheng Posted February 7, 2006 Author Share Posted February 7, 2006 This is on the back/slow burner for a while - got a job that actually pays Hope to get some time on the weekend. Quote Link to comment Share on other sites More sharing options...
