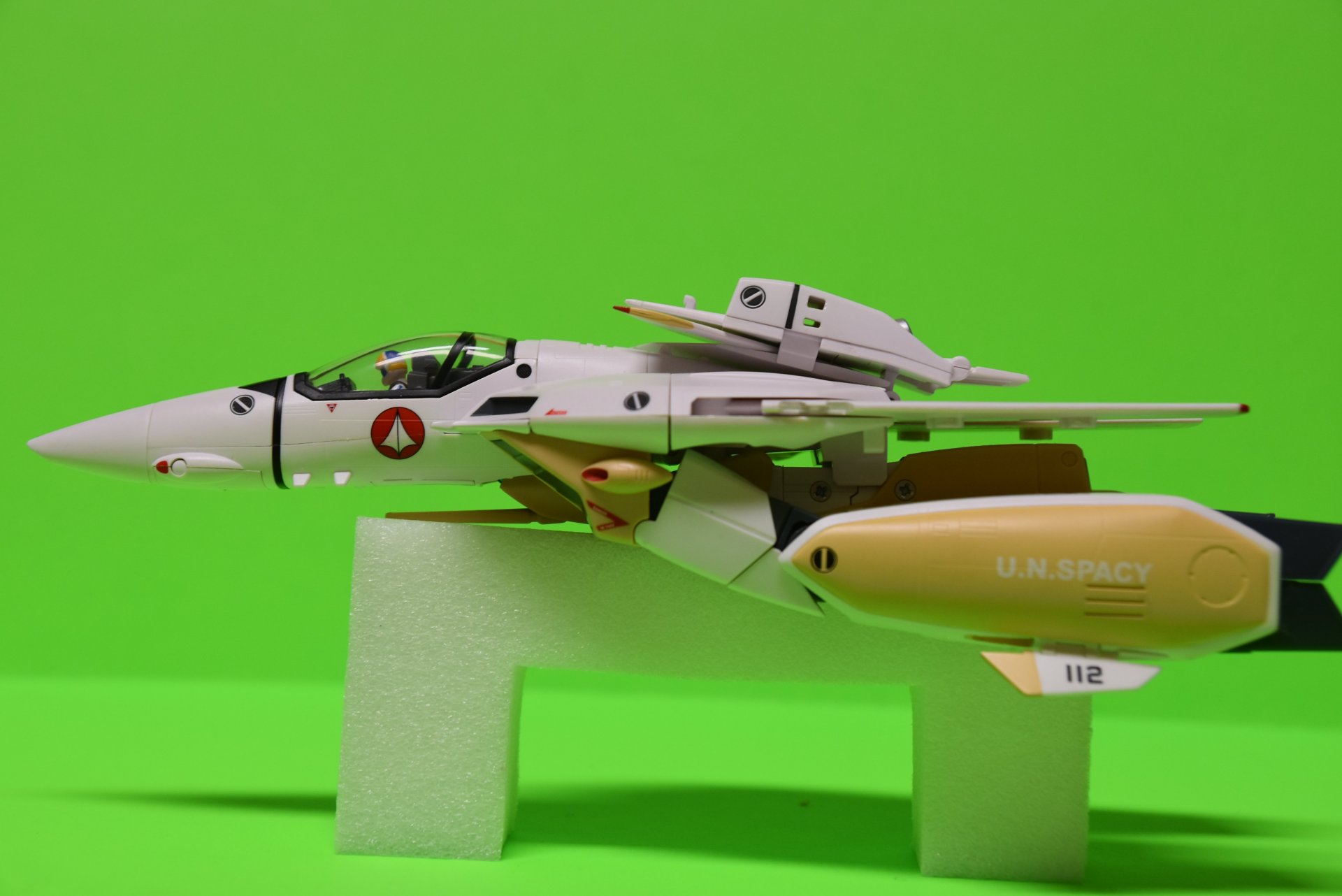

wmkjr Posted September 30, 2019 Share Posted September 30, 2019 (edited) Stampede valk. Either you love it or you really love it! Build completion 60% Hello everyone. I've seen Majestic's 1/48 custom and I've never seen any other builds other than the 2 in that thread. I always wanted one in 1/60 scale so I decided to give this a try. This is the build up. Edit: To save everyone's eyes from pic spam in just gonna put the pics in spoilers. First thing I did was look for reference material. I couldn't find too much info or lineart. I found some courtesy of Mr. March's Macross Mecha Manual and used those as reference. Next thing I did was take some pics of a 1/60 for reference. I'm using a VF-1A Kakizaki. Something like these. Spoiler I just took measurements with a caliper to get the general idea. I then started to sketch up some ideas and used plastistruct to build some mock ups. Here I built a mock up of the right shoulder missile pod and used my VF-1J as the model. As Majestic pointed out, lineart vs what you got to work with is a huge pain. Spoiler I'm not gonna lie, doing it this way is a pain which is why I give Majestic and the other custom builders here props for the skills and patience. I'll add to this more as I go along. Okay so after doing it like this for a couple of days and losing my mind, it dawned on me that I had an unbuilt Prusa MK2 3d printer I bought a few years ago and never got around to building it. Now looked like a perfect time to crack it open and give it a spin. After a day I finished building the printer. I also decided to give 3D modeling go so I used Fusion 360 and crash coursed it enough where I can make the basics. I was thinking about converting a S/S parts set but the more I looked at the line art the more it looked like I'm gonna have to make my own from scratch. I then started to print out the general parts and then tweaked some of the dimensions to see if it fits. Here is one of the rear booster housing: Spoiler Edited September 30, 2019 by wmkjr Quote Link to comment Share on other sites More sharing options...

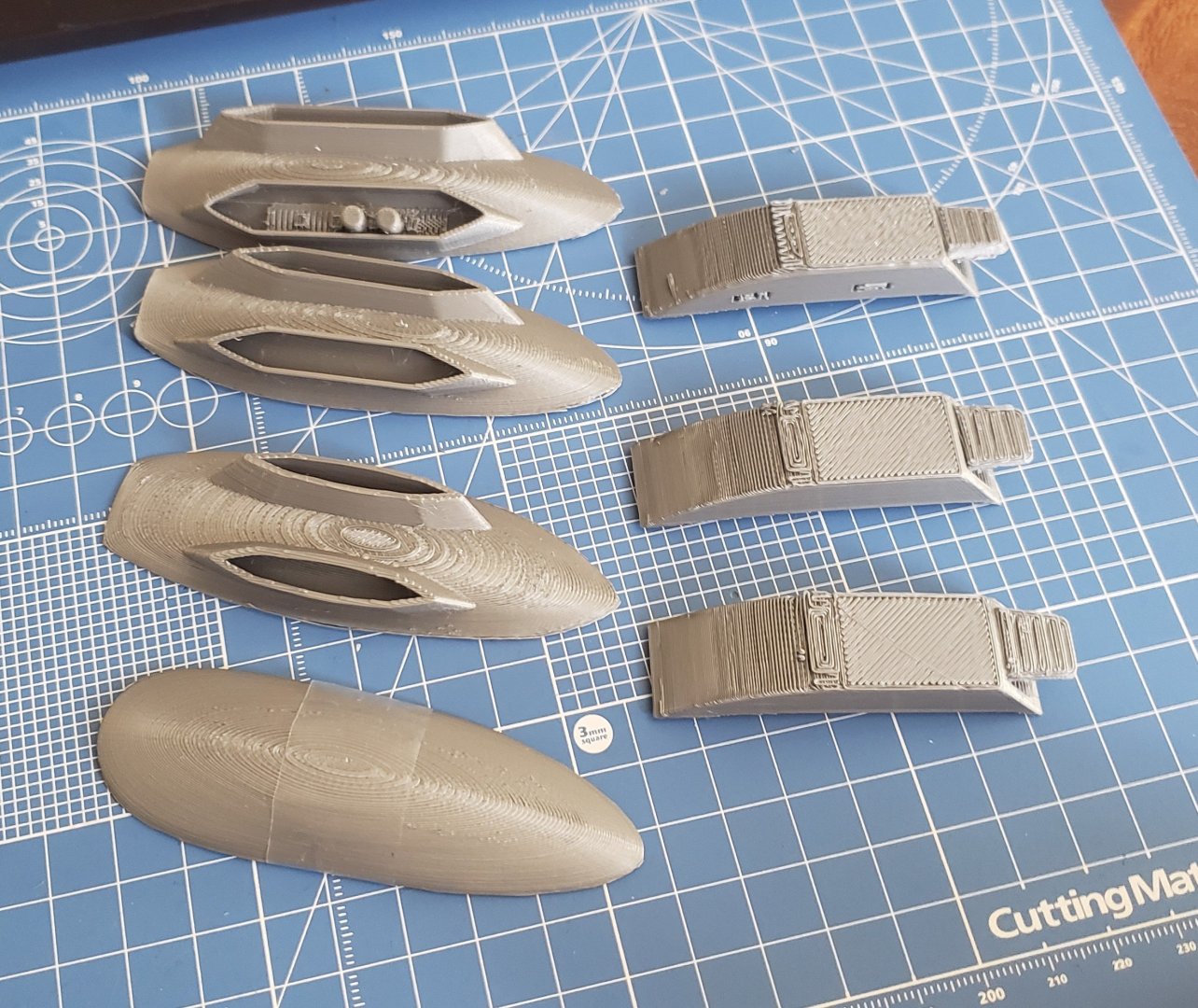

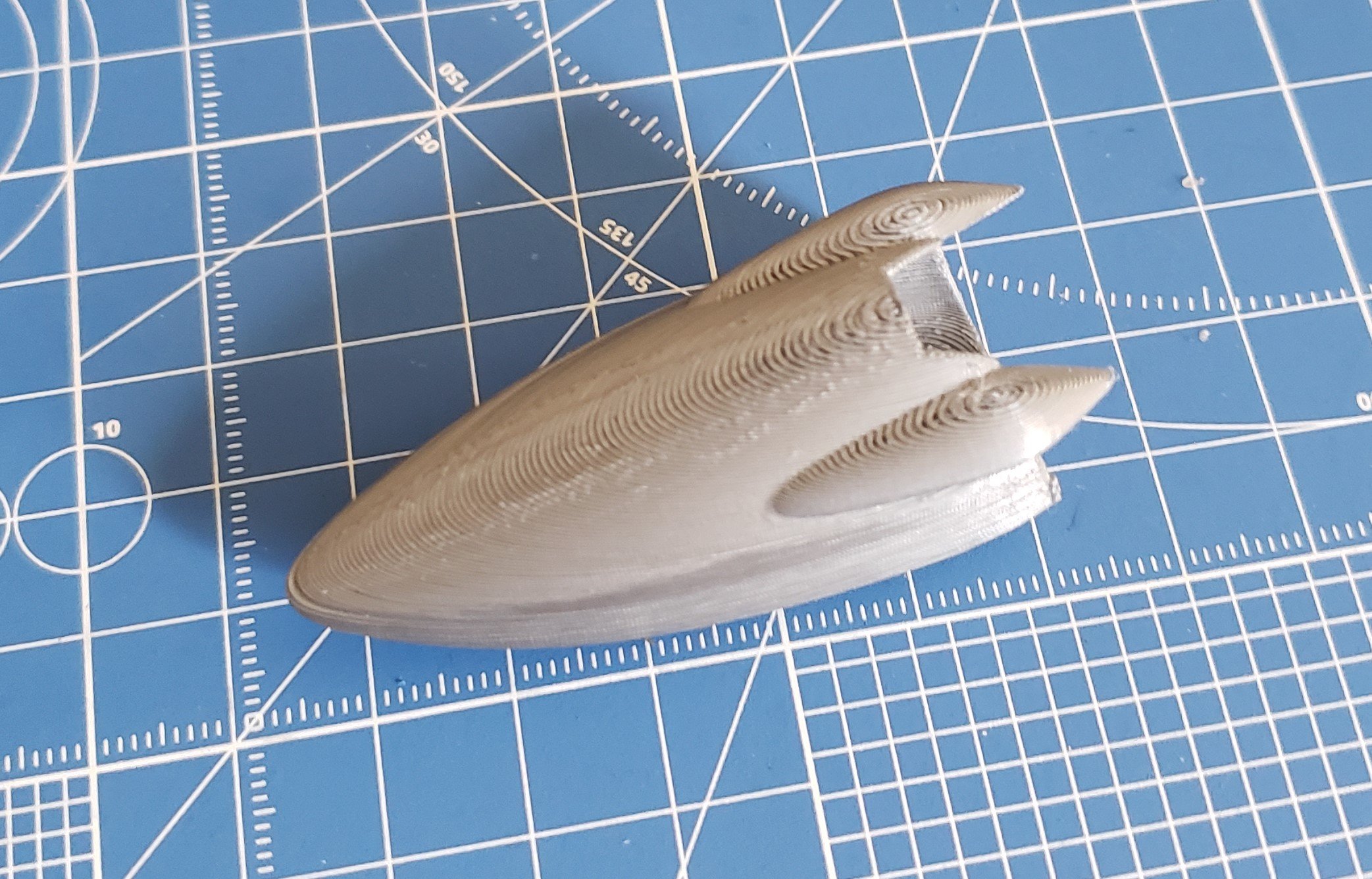

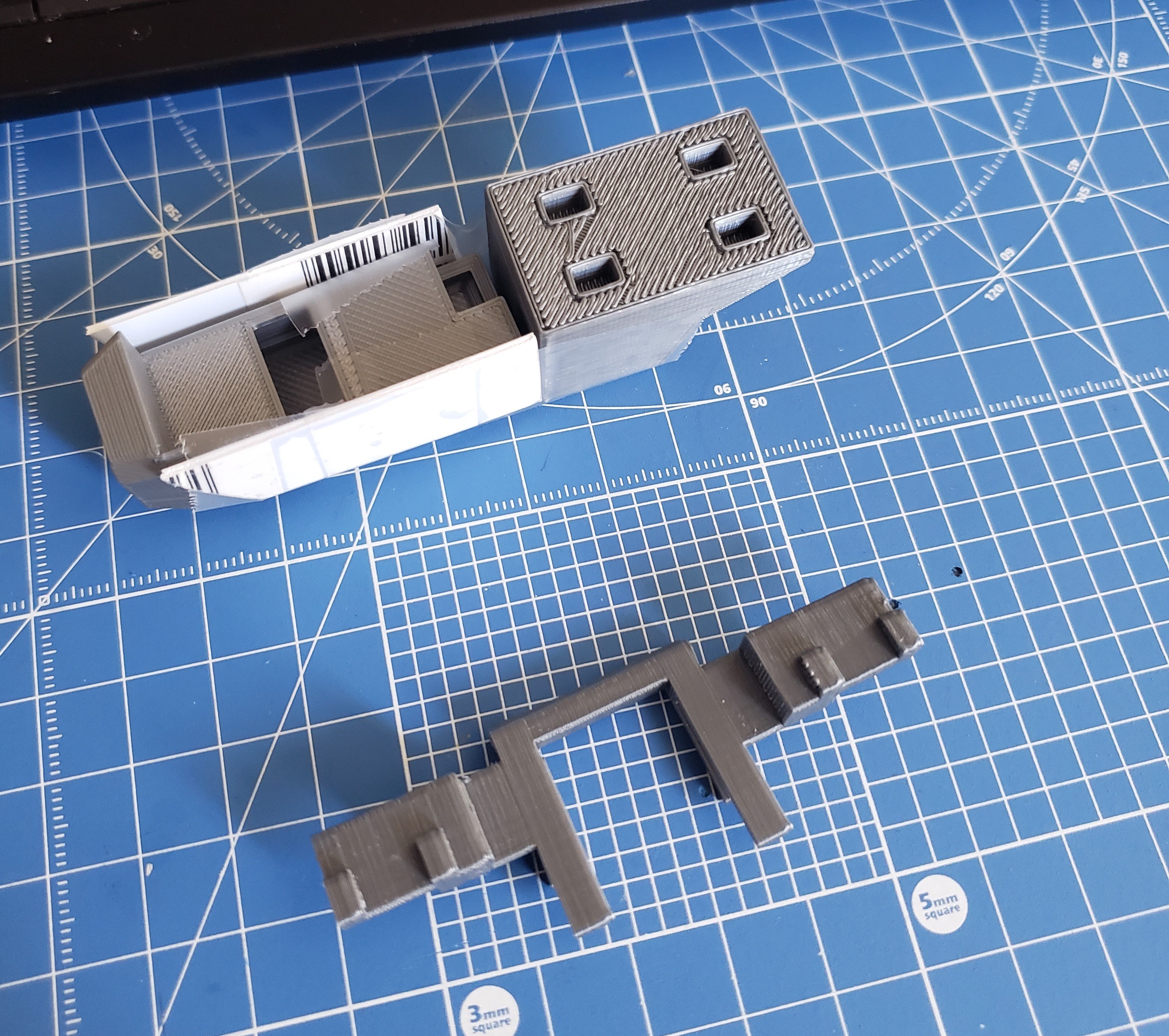

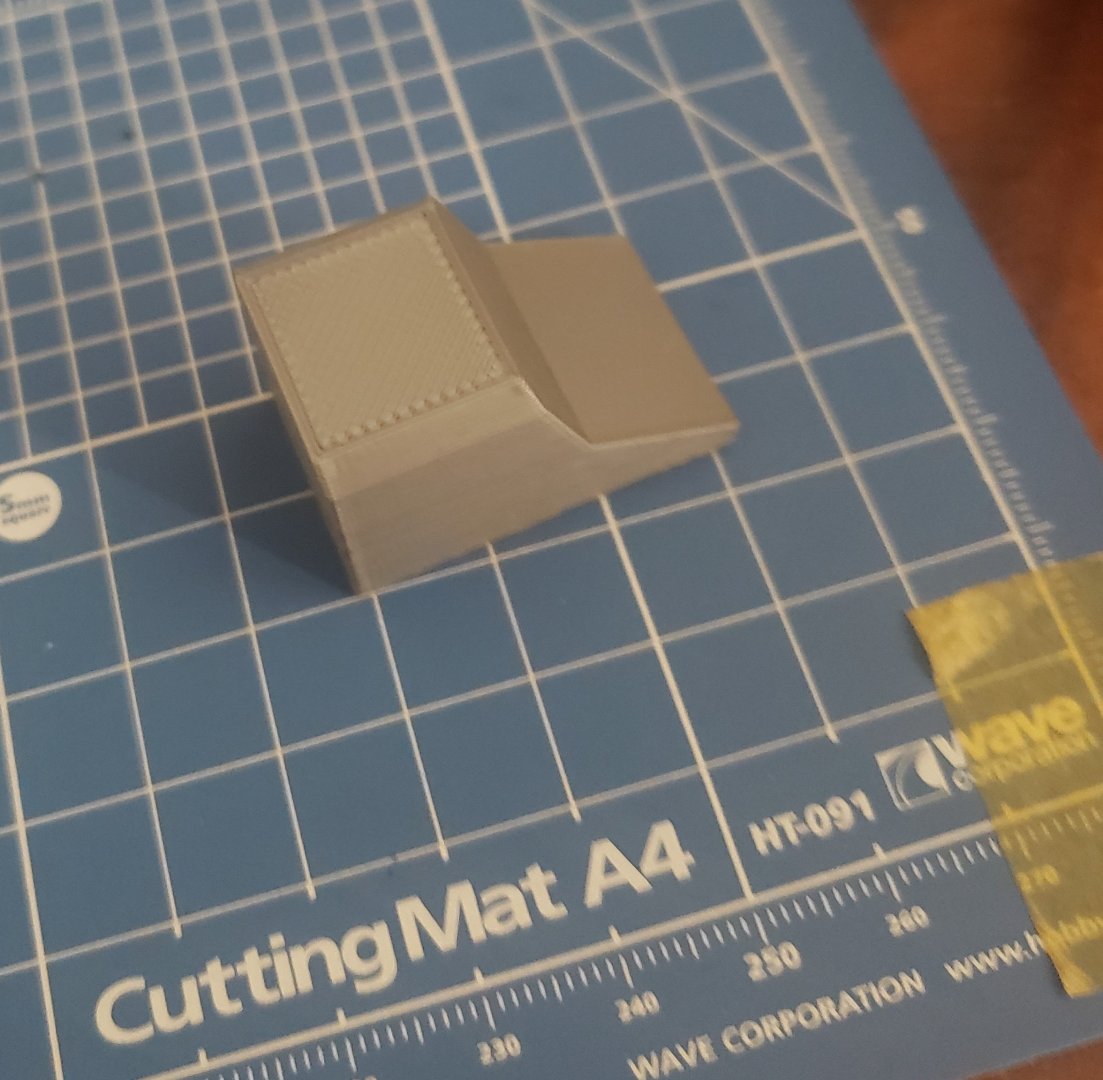

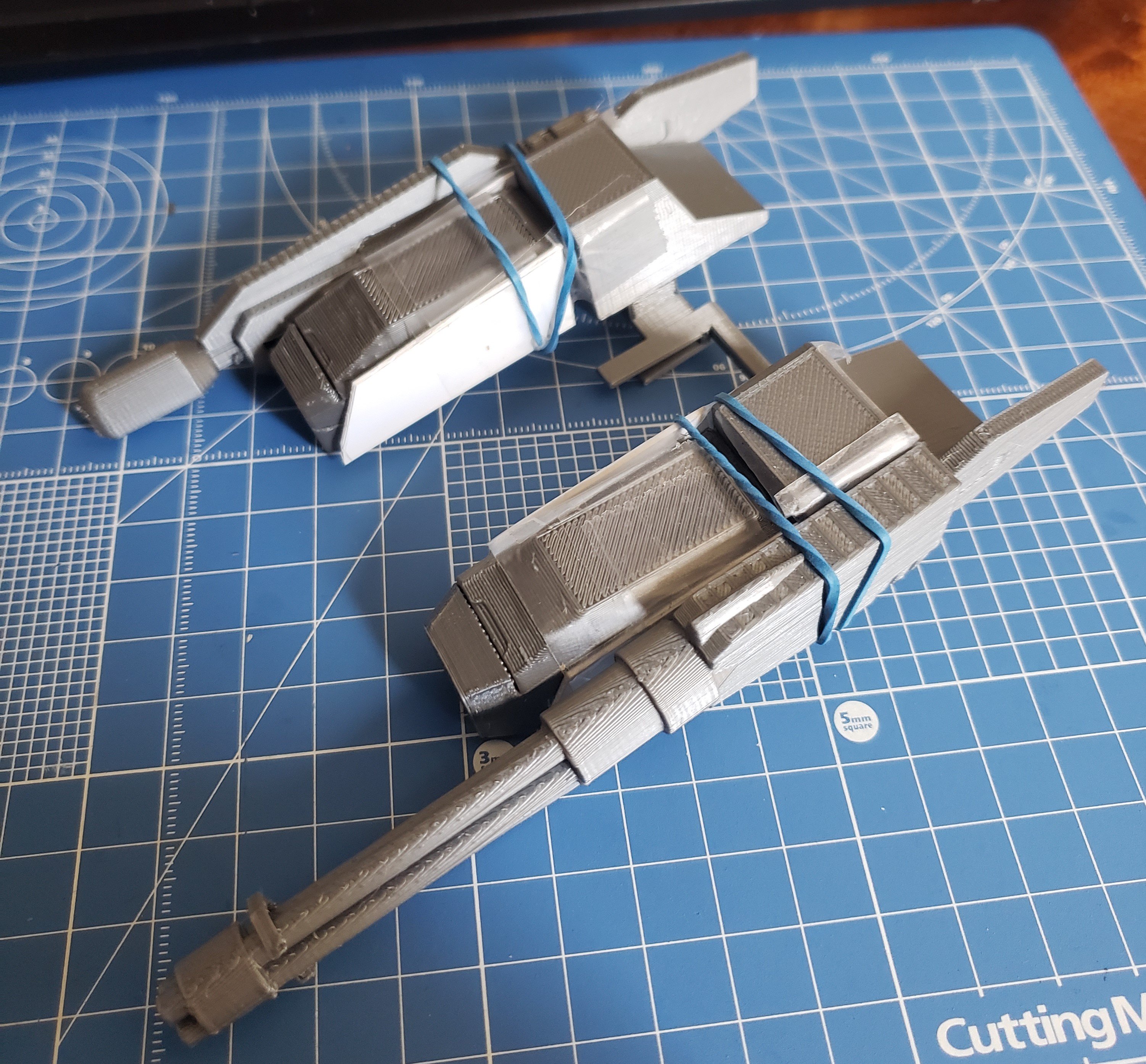

wmkjr Posted September 30, 2019 Author Share Posted September 30, 2019 (edited) So besides the valk, this is basically built from the ground up. I'm not a modeler nor am I a CAD designer so apologies for what you're about to see. The first thing I started to work on was the booster sections. I made the front except for the missiles and hinges but I'll get to that later. Here are pics of the fron section, rear boosters, and sides made out of styrene sheet as wanna work on the shape of the sides. Spoiler Next I had to figure out how 1. Where do I want them to go and 2. How am I gonna put them on? From the line art it seems the boosters move up in Battroid so I had to have the boosters move. After using a general area I then measured it out exactly where I wanted it. I also decided that I'm just gonna put holes in the bottom of the boosters and use those as mounts. I then made a bracket for the boosters. Spoiler When that was finished I decided to do the guns next. I printed the general shapes out going with the lineart for best guesstimate but I'm still trying to figure out how I'm gonna mount them to the boosters. Either magnets of clips. We'll see. Here is a pic of them a together (held together with rubber bands lol). Spoiler Next I decided to tackle the legs. These were a pain to do because of there complex shapes. Lots of tries to get it where I liked it. I didn't do the front yet and the inner part is gonna be tricky as there's not enough space to put something in there. Here are some of the various tries of the leg set: Spoiler Next up is the nose. I just did the nose for fighter for now, I'll try to figure out a way for battroid: Spoiler Edited October 1, 2019 by wmkjr Quote Link to comment Share on other sites More sharing options...

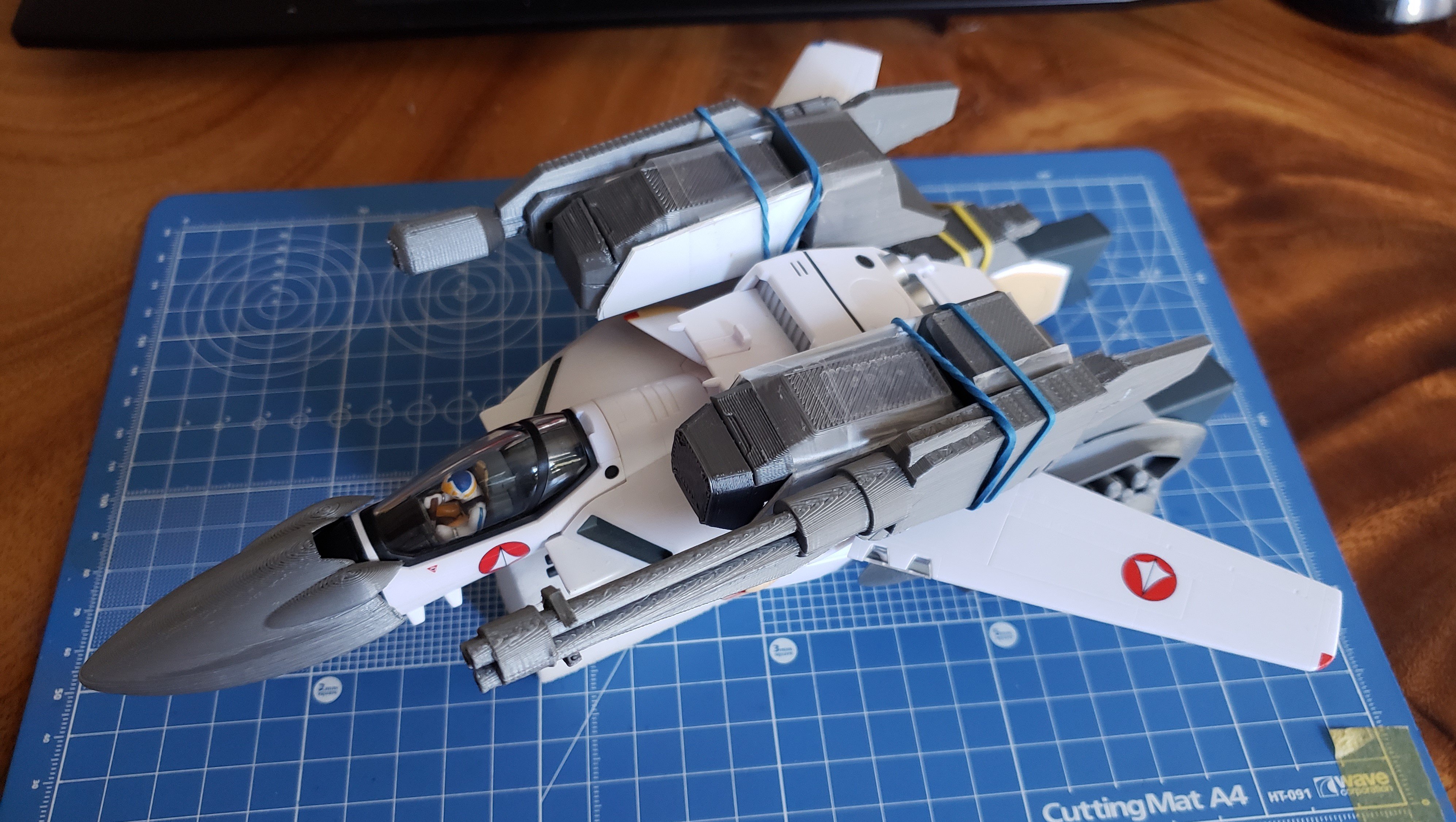

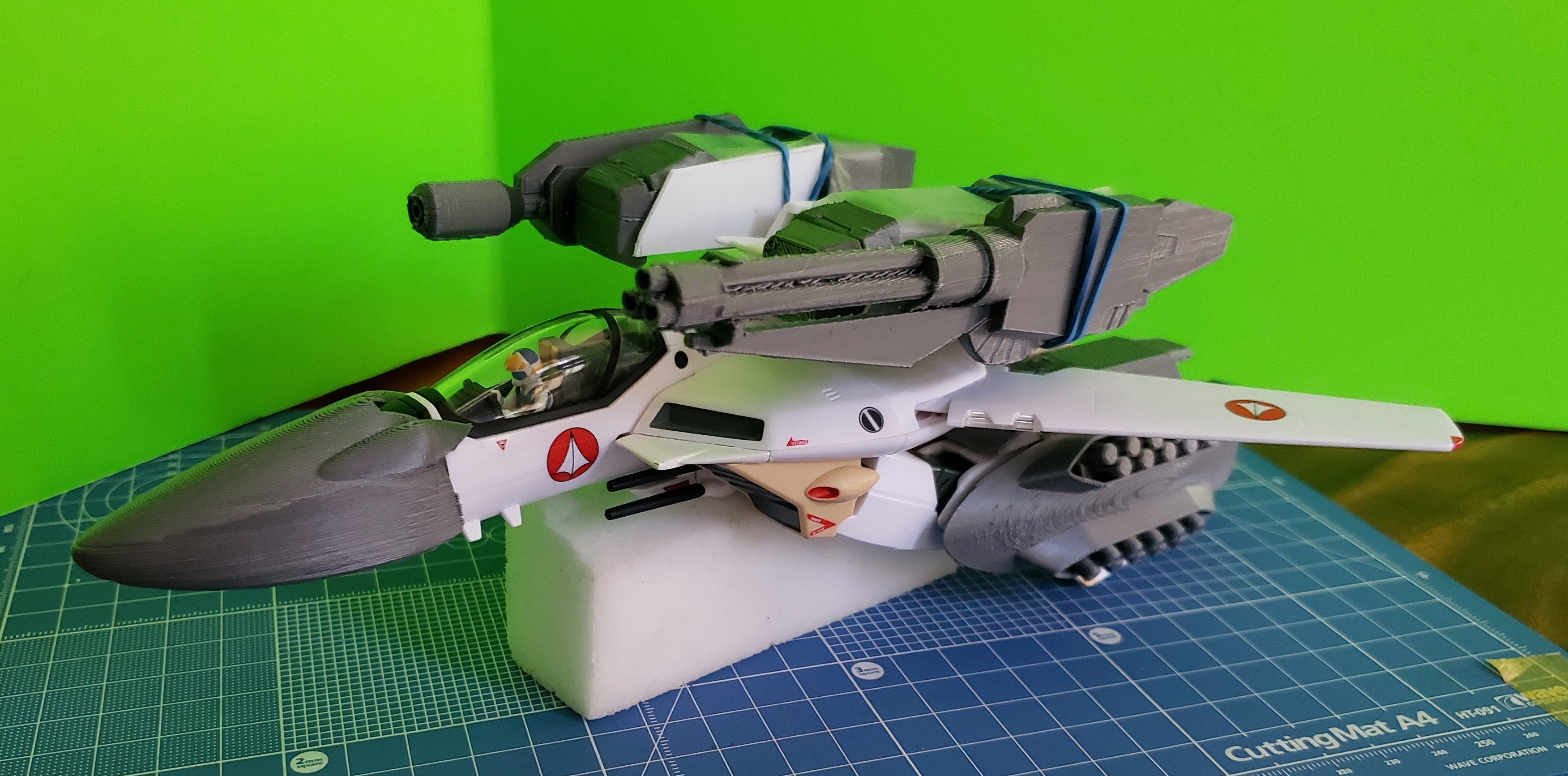

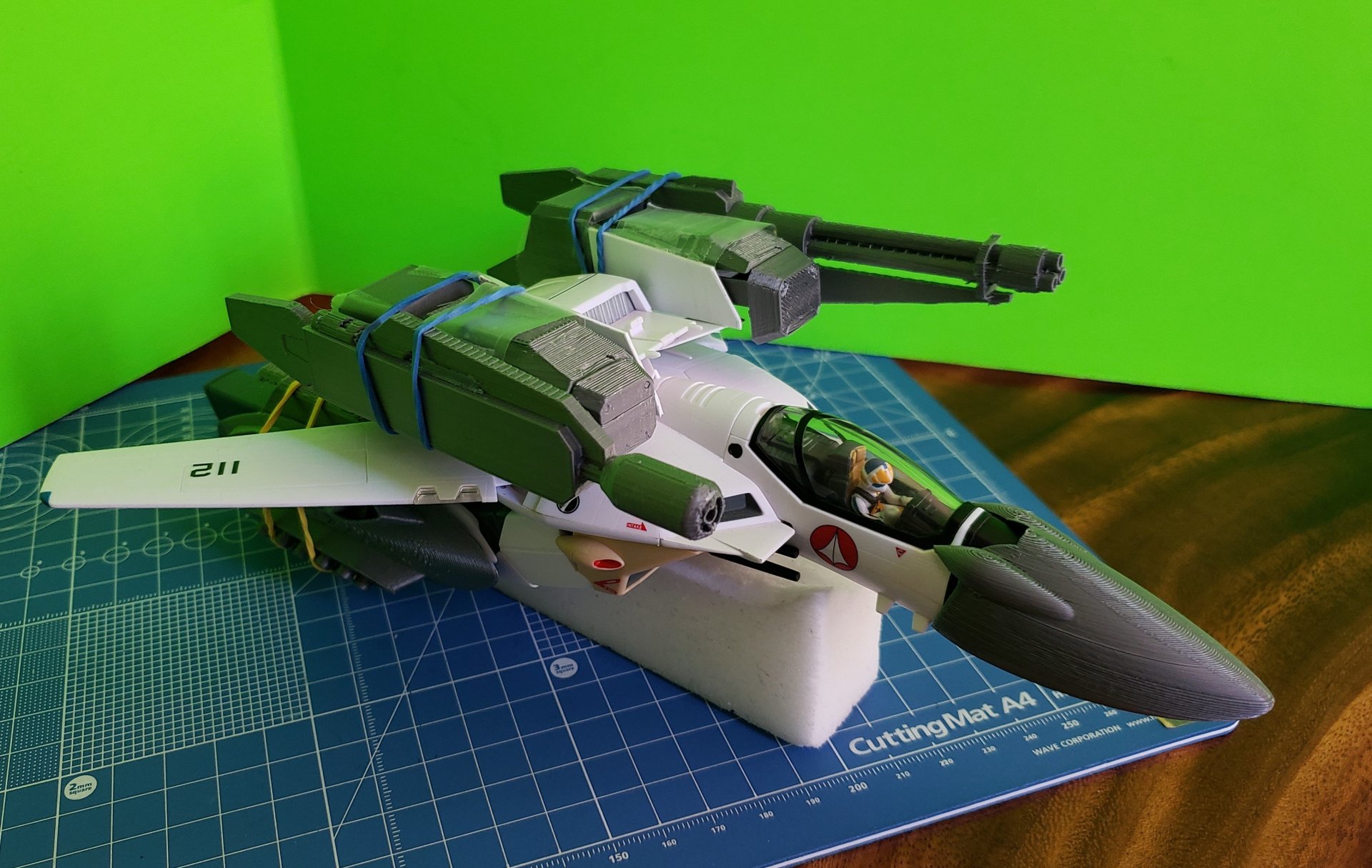

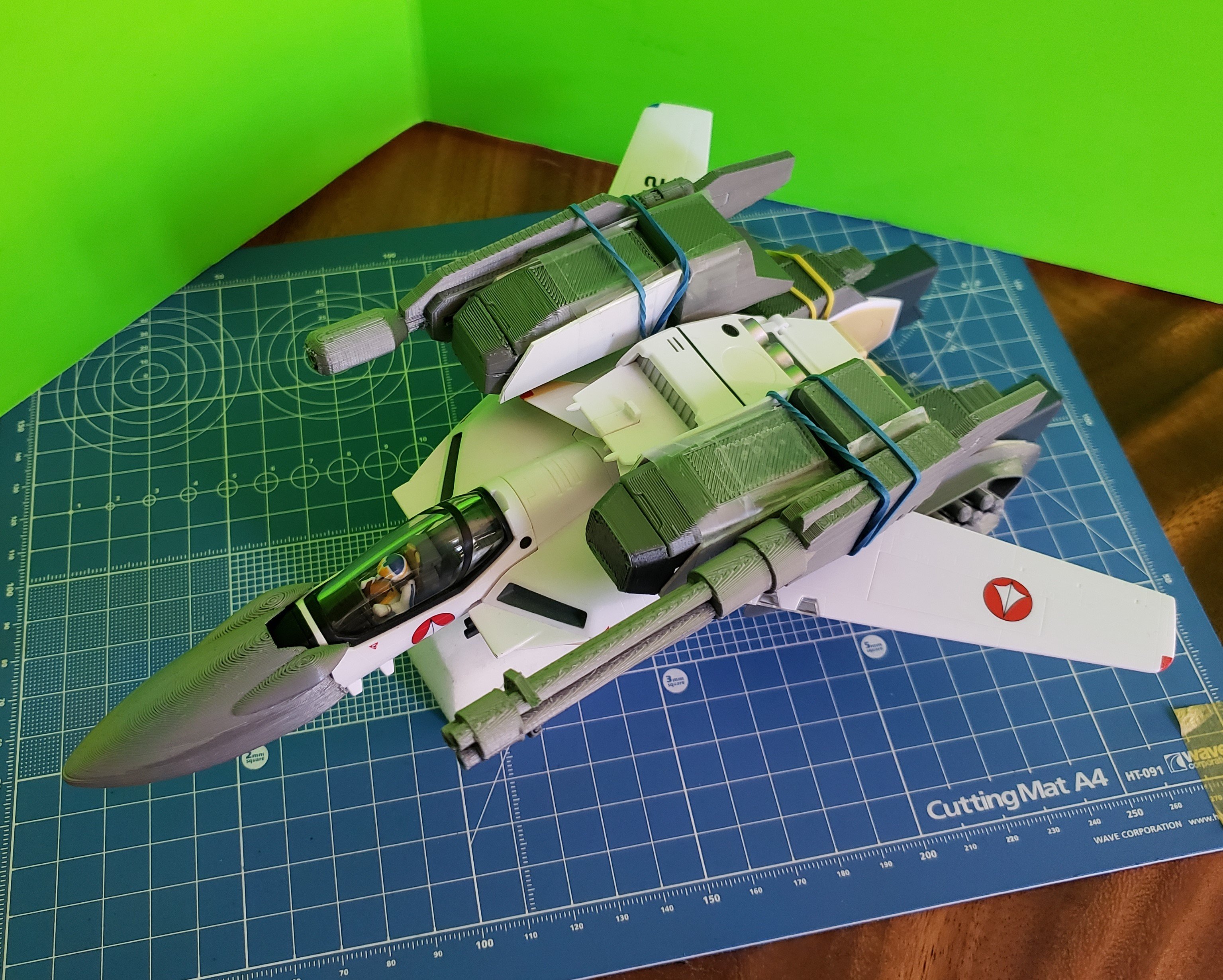

wmkjr Posted October 1, 2019 Author Share Posted October 1, 2019 (edited) So if you've stuck around and read through all of that you're probably wondering how it looks like right? This is where I'm at right now. Don't laugh: Spoiler Spoiler Spoiler Spoiler Right now I'm working on the intake covers which is the hardest ones yet. Thanks for looking. Edited October 1, 2019 by wmkjr Quote Link to comment Share on other sites More sharing options...
Mommar Posted October 1, 2019 Share Posted October 1, 2019 Looks pretty good given your caveats about skill level. You’re making it work. Quote Link to comment Share on other sites More sharing options...
Bolt Posted October 1, 2019 Share Posted October 1, 2019 Nice! You've got the main look. You can refine it over time. Good job! Quote Link to comment Share on other sites More sharing options...
valhary Posted October 1, 2019 Share Posted October 1, 2019 That kind of print not help so much even so looks impressive great job man! Quote Link to comment Share on other sites More sharing options...
wmkjr Posted October 1, 2019 Author Share Posted October 1, 2019 Thanks for the feedback folks I really appreciate it! The plan is to make these prints to see the fit and finish of things, try to overcome what the lineart shows vs how real life ain't gonna let you do it, clean up and refine them, then send them of to a 3d printing service. I could post process these but I'll stew over it a bit before I decide whether I want to or not. Quote Link to comment Share on other sites More sharing options...
Xigfrid Posted October 1, 2019 Share Posted October 1, 2019 2 hours ago, wmkjr said: Thanks for the feedback folks I really appreciate it! The plan is to make these prints to see the fit and finish of things, try to overcome what the lineart shows vs how real life ain't gonna let you do it, clean up and refine them, then send them of to a 3d printing service. I could post process these but I'll stew over it a bit before I decide whether I want to or not. That's exactly what I was thinking, your printer is rough but it helps building something accurate, then when you are done with the global shapes, you can add as many details as the printing service will be able to render then print it! This is such a nice time where anyone is capable of making its dream come true Love 3D printing! Quote Link to comment Share on other sites More sharing options...
enphily Posted October 1, 2019 Share Posted October 1, 2019 Oh, finally someone making Stampede Pack! Great job! Quote Link to comment Share on other sites More sharing options...
Tage Posted October 3, 2019 Share Posted October 3, 2019 Ah amaaaaaaazing. I'm in the love camp for the Stampede, and you're doing a great job man. Keep it up! Quote Link to comment Share on other sites More sharing options...
Metal Man Posted October 9, 2019 Share Posted October 9, 2019 I was just thinking about how there isn't any stampede valk kits and then here you are, doing just that. Quote Link to comment Share on other sites More sharing options...
Dax415 Posted December 22, 2019 Share Posted December 22, 2019 Great job, can't wait for more! Quote Link to comment Share on other sites More sharing options...
Jasonc Posted January 19, 2020 Share Posted January 19, 2020 Was there any update on this work? For some reason, I've missed most of this over time. Quote Link to comment Share on other sites More sharing options...
wmkjr Posted January 20, 2020 Author Share Posted January 20, 2020 Sorry. Didn't update it since the holidays came around it got pushed to the back burner. I'm currently on the intake covers and trying to find a compromise on the fin part. I started back up and working on the chest piece. Quote Link to comment Share on other sites More sharing options...
Jasonc Posted January 20, 2020 Share Posted January 20, 2020 5 hours ago, wmkjr said: Sorry. Didn't update it since the holidays came around it got pushed to the back burner. I'm currently on the intake covers and trying to find a compromise on the fin part. I started back up and working on the chest piece. Glad it is still a work in progress. When you finish it up, I hope you make it available for purchase. I'd like to put one of these together. Quote Link to comment Share on other sites More sharing options...
Goodman Models Posted March 17, 2020 Share Posted March 17, 2020 nice work! Quote Link to comment Share on other sites More sharing options...

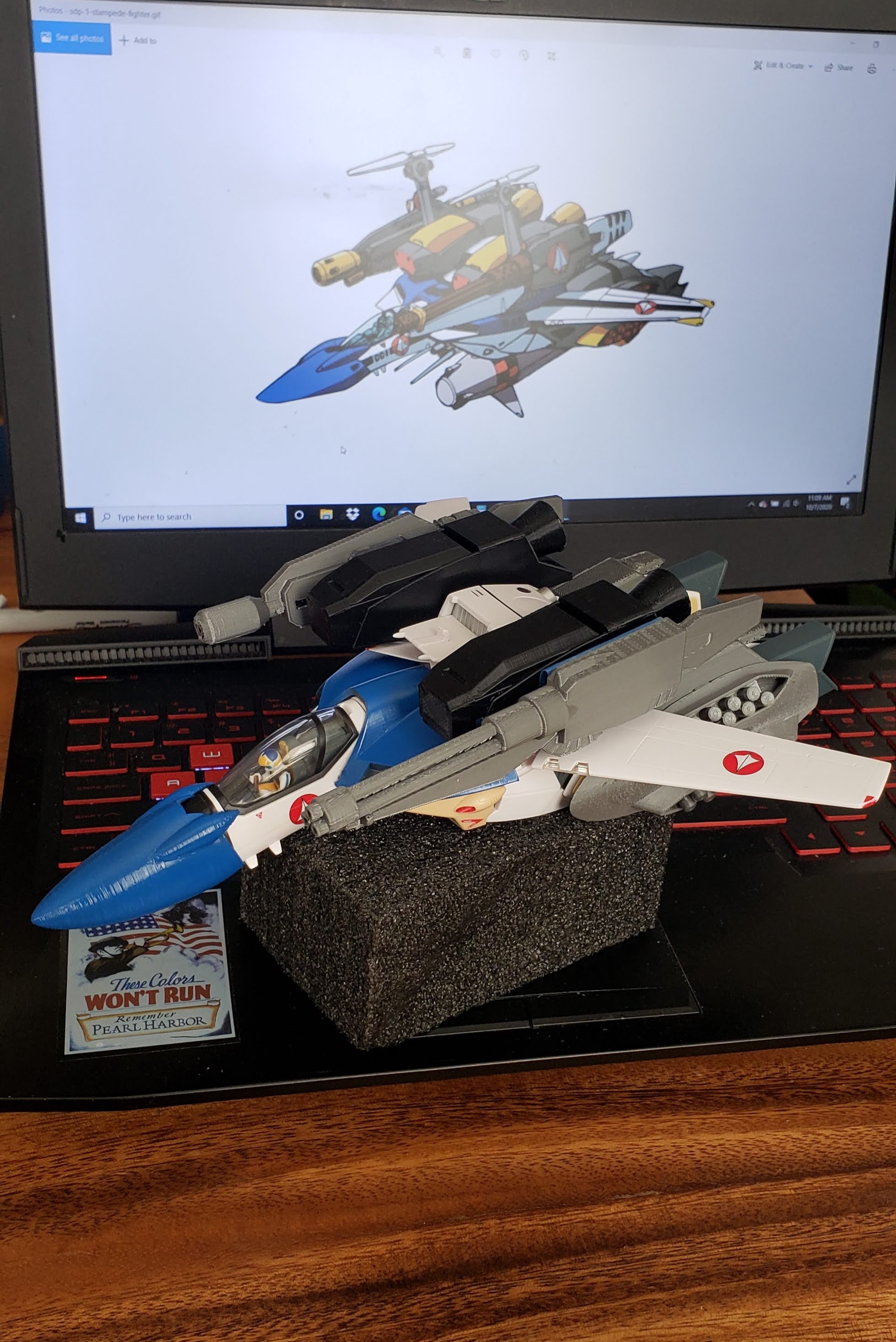

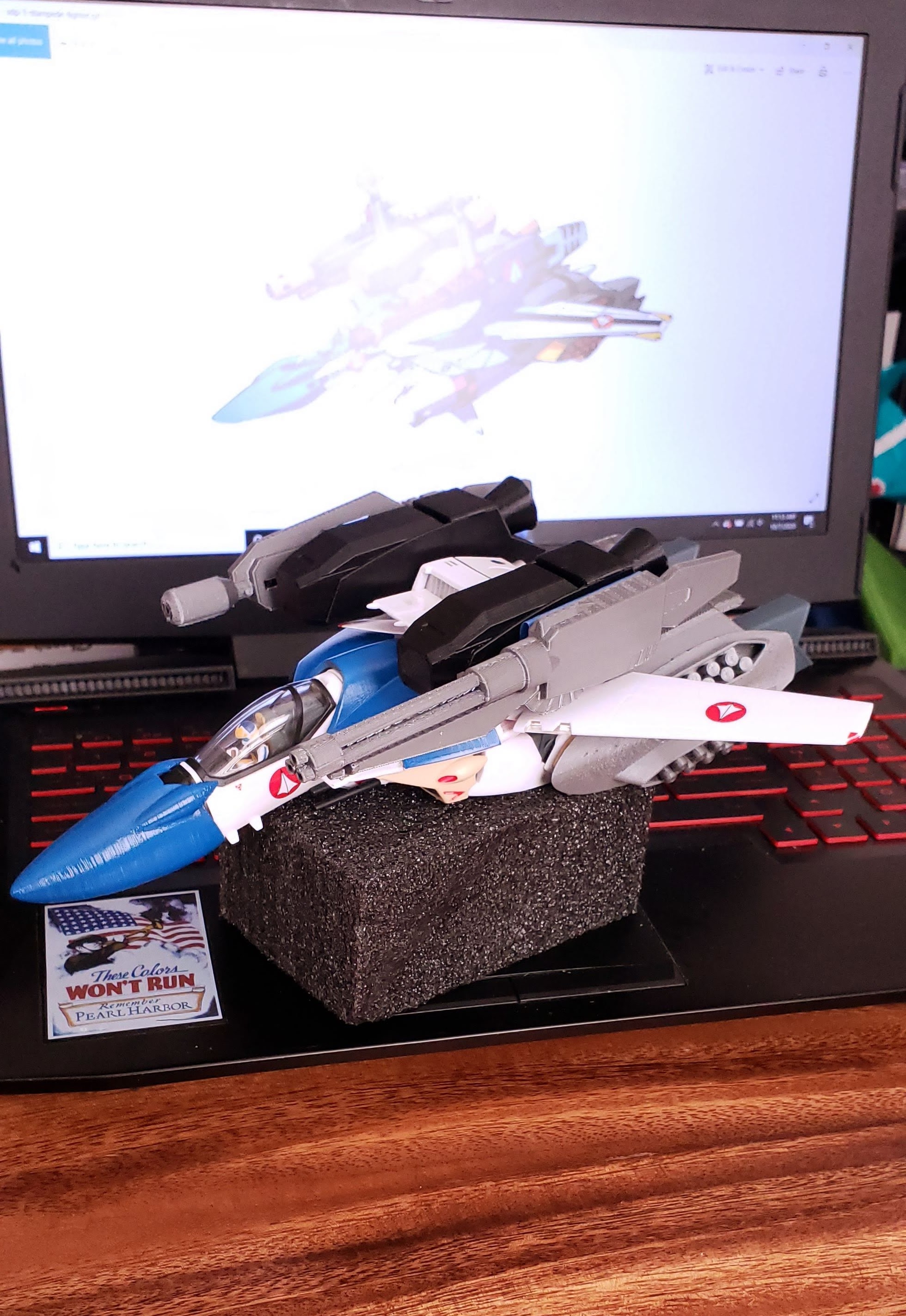

wmkjr Posted June 21, 2021 Author Share Posted June 21, 2021 I know it's been awhile but nothing much to report. I'm still trying to find a compromise on the intake cover/fin part. Finished the chest piece. Here are test pics of fixed boosters and the chest piece. Quote Link to comment Share on other sites More sharing options...
MechTech Posted June 21, 2021 Share Posted June 21, 2021 Looking good so far! - MT Quote Link to comment Share on other sites More sharing options...
Bolt Posted June 21, 2021 Share Posted June 21, 2021 Awesome! Quote Link to comment Share on other sites More sharing options...
Jasonc Posted June 21, 2021 Share Posted June 21, 2021 This is looking great. You've really captured the look and aggressiveness of the Valk. It looks great. Quote Link to comment Share on other sites More sharing options...
enphily Posted June 22, 2021 Share Posted June 22, 2021 i like it! Quote Link to comment Share on other sites More sharing options...
