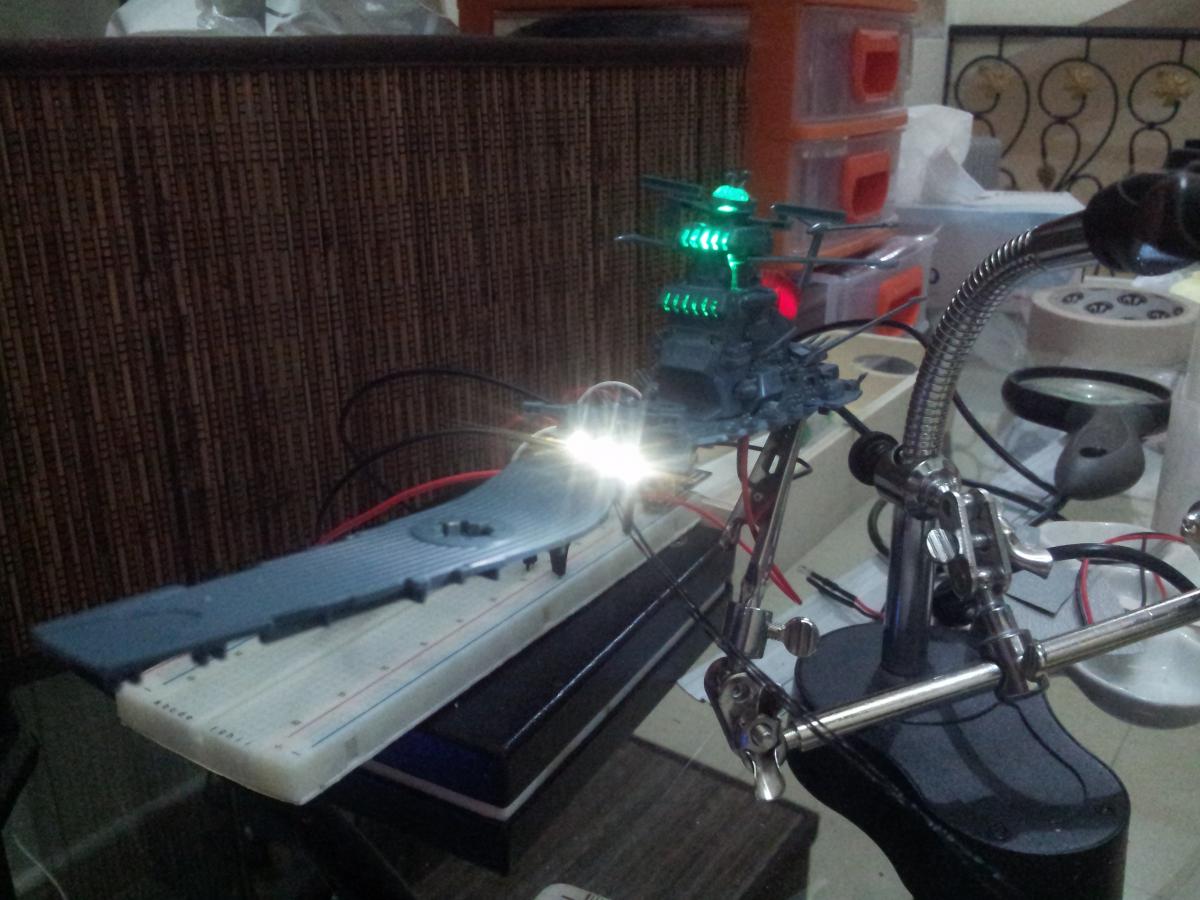

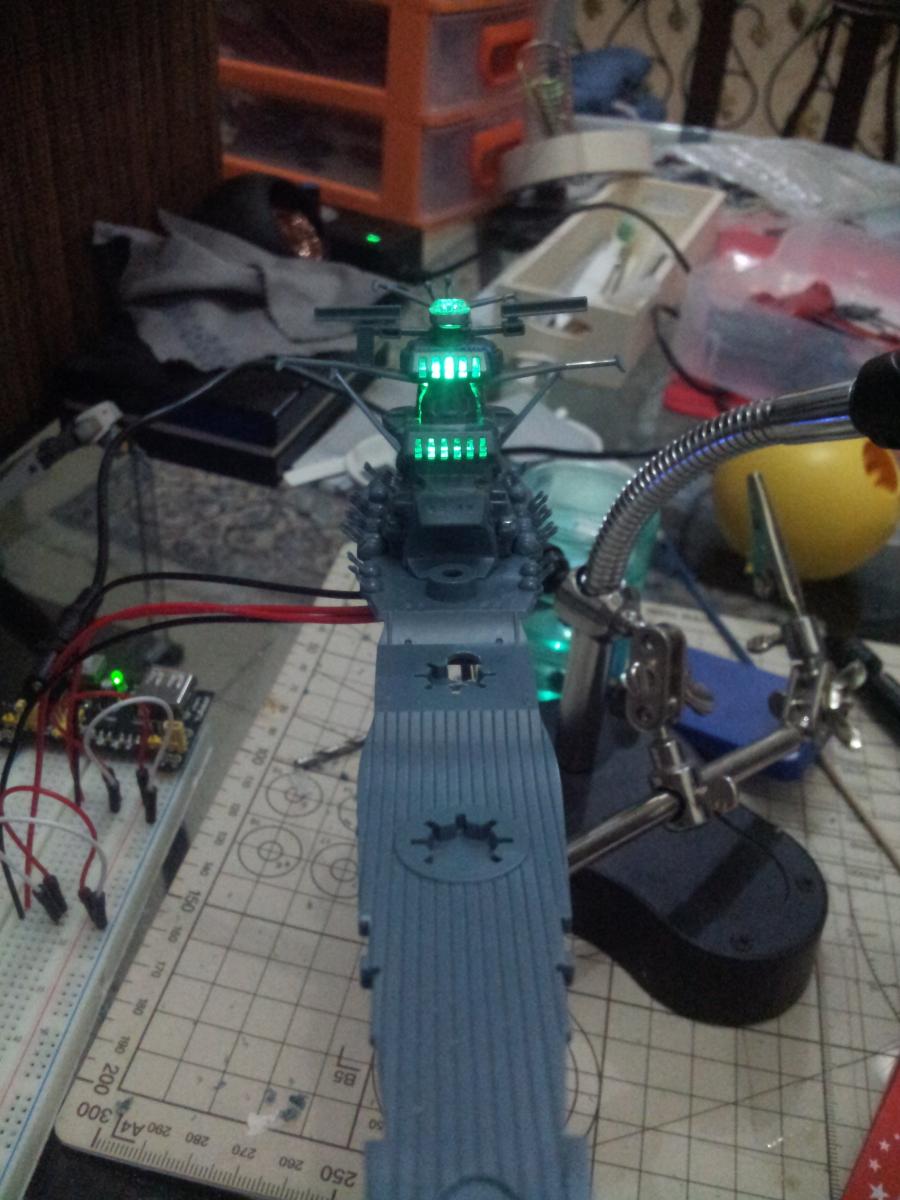

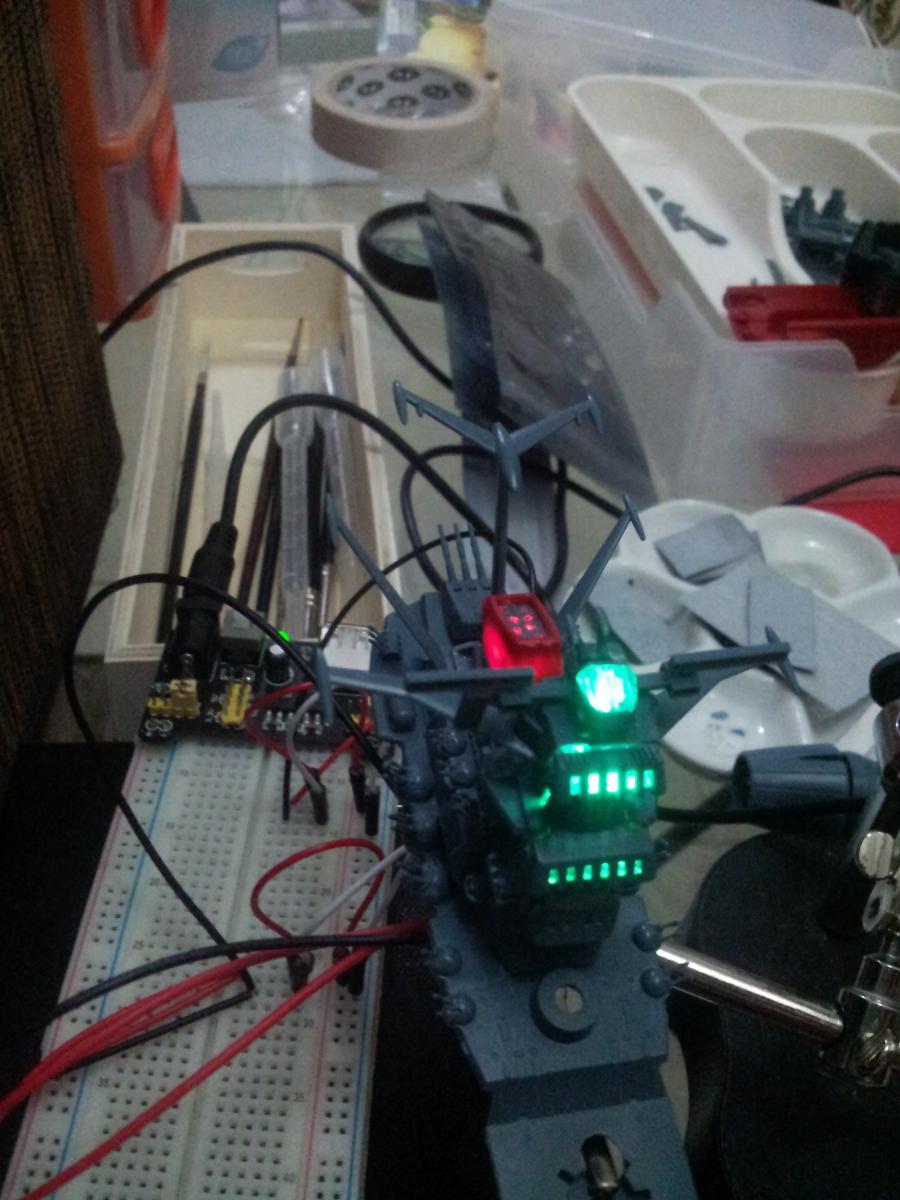

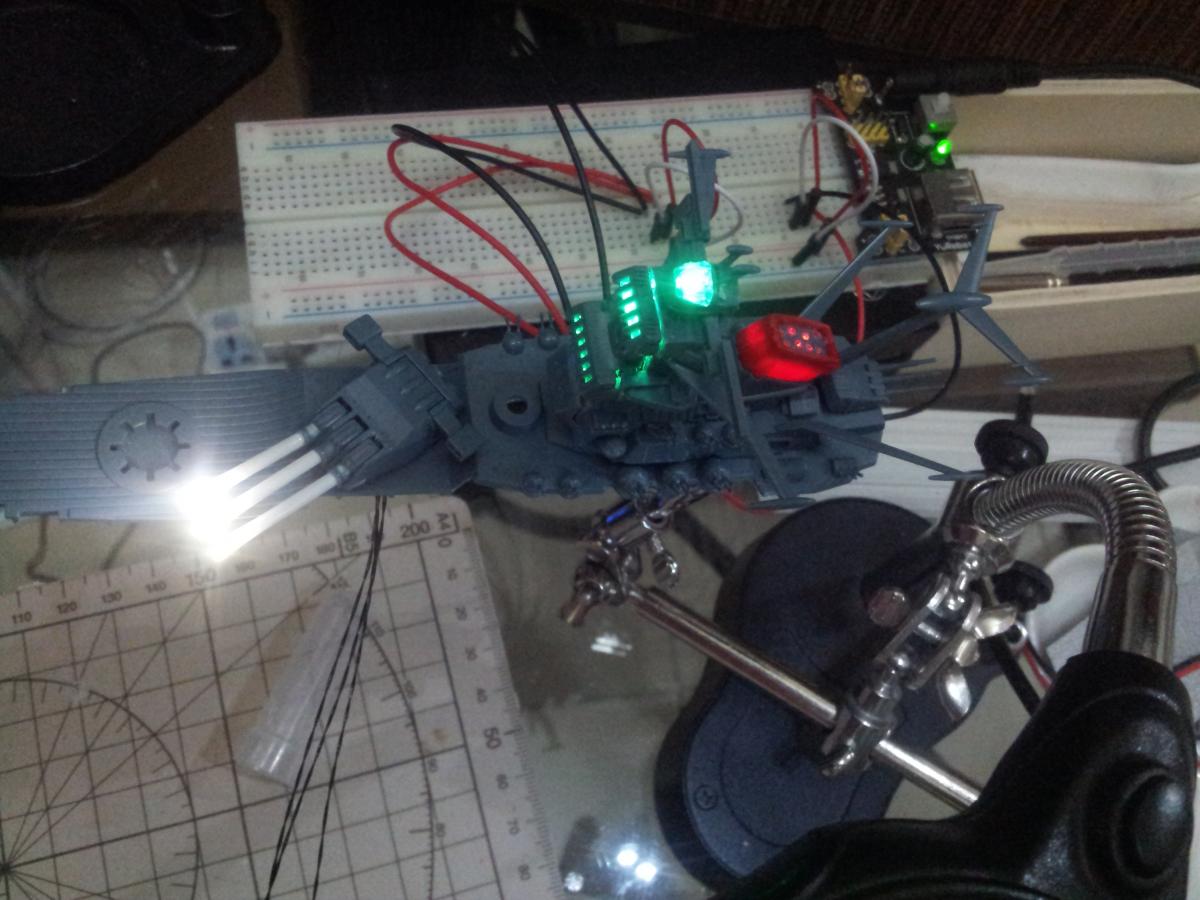

Moving along here.

I also have blinking signal lights ready for the bridge wings. One lesson I learned with lights is if you wire steady lights, blinking lights and flickering lights together, they all end up blinking...Duh!

So I need to have separate wires to the power source for each type of light, unless there is another easy solution (I will NOT be learning how to wire circuit boards).

Another lesson is too many wires and the hull gets jammed full...


Edited by arbit
Link to comment
Share on other sites

I have one of those Boba Fett kits and 2 sand troopers that I ordered from Hlj just before the embargo. It looks like a fairly simple build and the grey looks like primer gray could work for most of it.

Were you going to do any paint chipping on the armor?

Yes, I PLAN to, buuut I am NOT good at it, I've only tried on my Scout Walker and some was ok, others weren't. I used the tiny piece of dead sponge method, gonna need to practice before I do Boba. I'm actually going to paint all the parts on the sprue for this, as I found almost every color I need lying around. Don't wanna have to spend money on paint for this.

Arbit - The Yamato looks great!!!

Edited by derex3592
Link to comment
Share on other sites

Had an unexpected cool front blow through this afternoon so I thought I would get some painting done on Boba Fett. Tamiya acrylics sure are easy to mix with and lay down beautifully through an airbrush.. I will say that for them.


Link to comment
Share on other sites

Seconded.

Thanks. Those are "candle/flickering" pre-wired LEDs which give that effect.

But I'm finding that for our small kits, SMDs are the way to go for tight spots. LEDs are often too big.

Edited by arbit
Link to comment
Share on other sites

I've got a start on my first Airfix Westland Sea King - a HU.5. This the new tool Airfix 1/72 kit & will accompany my converted SH-3H and, in turn, will be joined by a HAR.3.

The interior was converted...

836BEB9F-D6F7-4893-894D-08A36F771B6E_zps

3234E3E2-3F7B-40EF-8BC0-870DBEB36308_zps

And painted.

17BF160F-621D-4182-8379-7C06DDB0DDA8_zps

Floor chipped with Neo mask.

1DF303E7-E2E2-4283-8D0F-CBF66298A726_zps

Quite a bit different to the OOB HAR.3, I think you'll agree:

6C1FD3F7-85C5-48EF-AE1C-5B158A77252D_zps

Should get the fuselage together this week.

All comments welcome.

Link to comment
Share on other sites

God I havent been in a SeaKing since 2000! Shark 07 "Suai Sally" The Timor Express of 817 Sqn International Rescue. Looking at the interior of that model brings back memories, like why the hell does it only have a door and weapon station on one side?? Does the Navy only ever flying to contact sideways? Love how you've scuffed up the deck.

Edited by NZEOD
Link to comment
Share on other sites

Moving along here.

I also have blinking signal lights ready for the bridge wings. One lesson I learned with lights is if you wire steady lights, blinking lights and flickering lights together, they all end up blinking...Duh!

So I need to have separate wires to the power source for each type of light, unless there is another easy solution (I will NOT be learning how to wire circuit boards).

Another lesson is too many wires and the hull gets jammed full...

attachicon.gif2016-07-08 22.59.05.jpg

Solution for the cable clutter problem is to use Enameled Wire. Its hair thin and carries enough current to run your LEDs.


For SMDs try Neopixels, you get blinding light thats fadeable, they only need 3 wires to run them even in a daisy chain of 80 and you can still program and control them individually while daisy chained using a Trinket board.
