Some time ago I made this Little Vajra, it was mostly based on the Line art proportions which in fact are inaccurate compared to the proportions seen in the TV eps and movies. You can still see it there:

Also due to a change of Shapeways sprues policies, my model was not printable anymore, so I decide to update the whole model with:

1) better proportions, from 16 cm long to 18 cm long. The figure is also bigger.

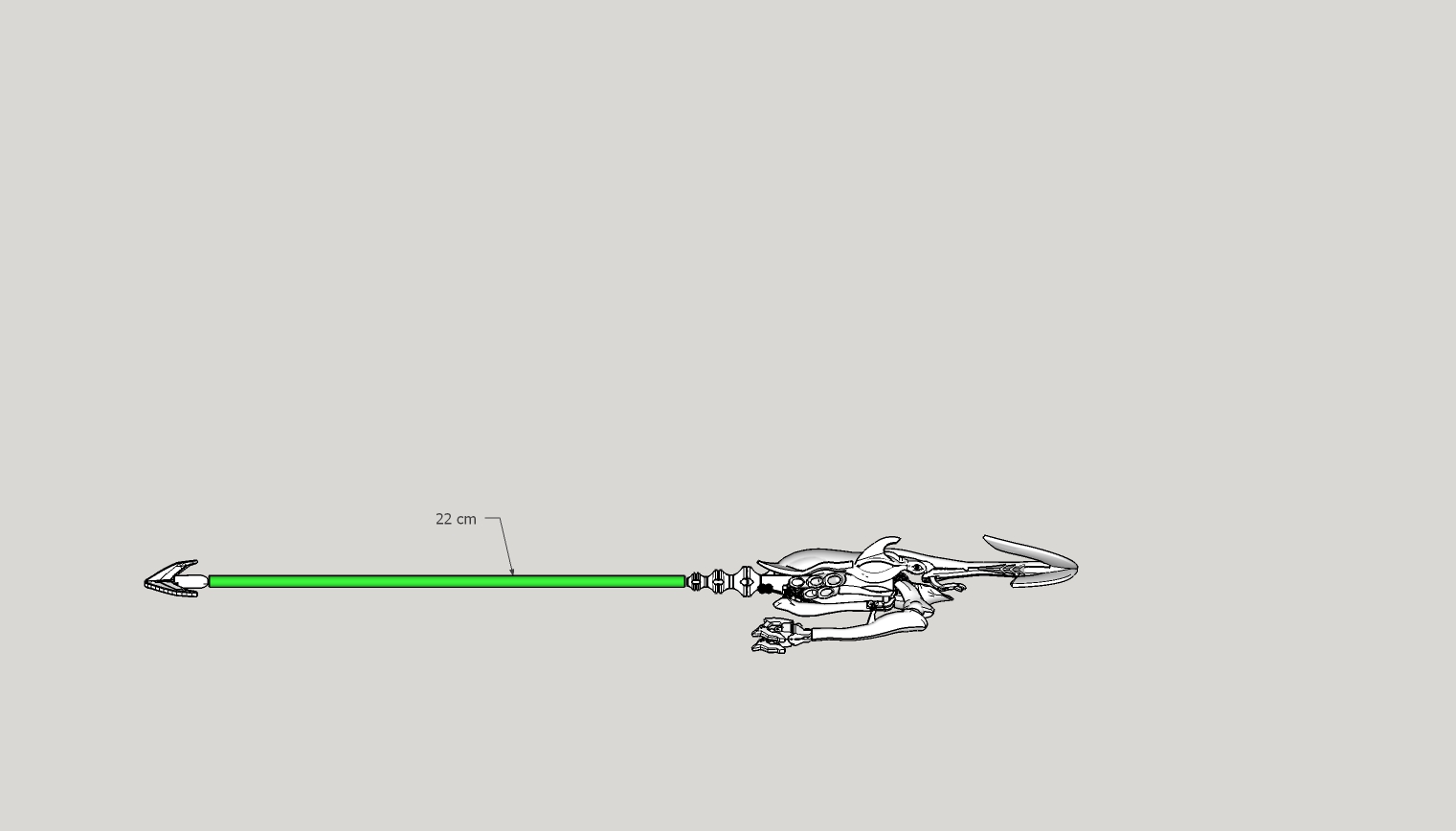

2) new tail design featuring a 5mm diameter x 22cm long silicon hose instead of a silicon flat band
3) new "hands", more accurate shapes and more articulations with a better grip
4) simpler model with less small parts.

The complete model can be bought on shapeways for a little less than 65 USD (with "Extended" production time): https://www.shapeways.com/shops/xigfrid3dshop?section=Little+Vajra&s=0

You will need a few additional material to assemble it:

1) 3x screws dimensions M1.7 x 6mm
2) 1x bigger screw (2.3 - 2.7 mm diameter x 8-9mm long)
3) about 100cm of  0.8mm copper line for the legs and the tail, I also used a fine fish line to drag the larger copper line in the legs holes
4) 5mm diameter x 22cm long silicon hose for the tail. You can choose your favorite color.. I went with a green "glow in the dark" hose.
5) a few 1mm diameter metallic rods cut to the correct length to fit the different fingers articulations, I used 1mm x 20mm nails for that.
6) 2x magnets of  3mm diameter x 1mm depth (optional) They help secure the little legs under the belly, but they are also secured with the Jaw mechanism



HERE IS THE ASSEMBLY manual if needed : https://drive.google.com/file/d/1iyCkM98lGnNUwb7-1dFj-boI6miCCUoF/view

Enjoy the build!

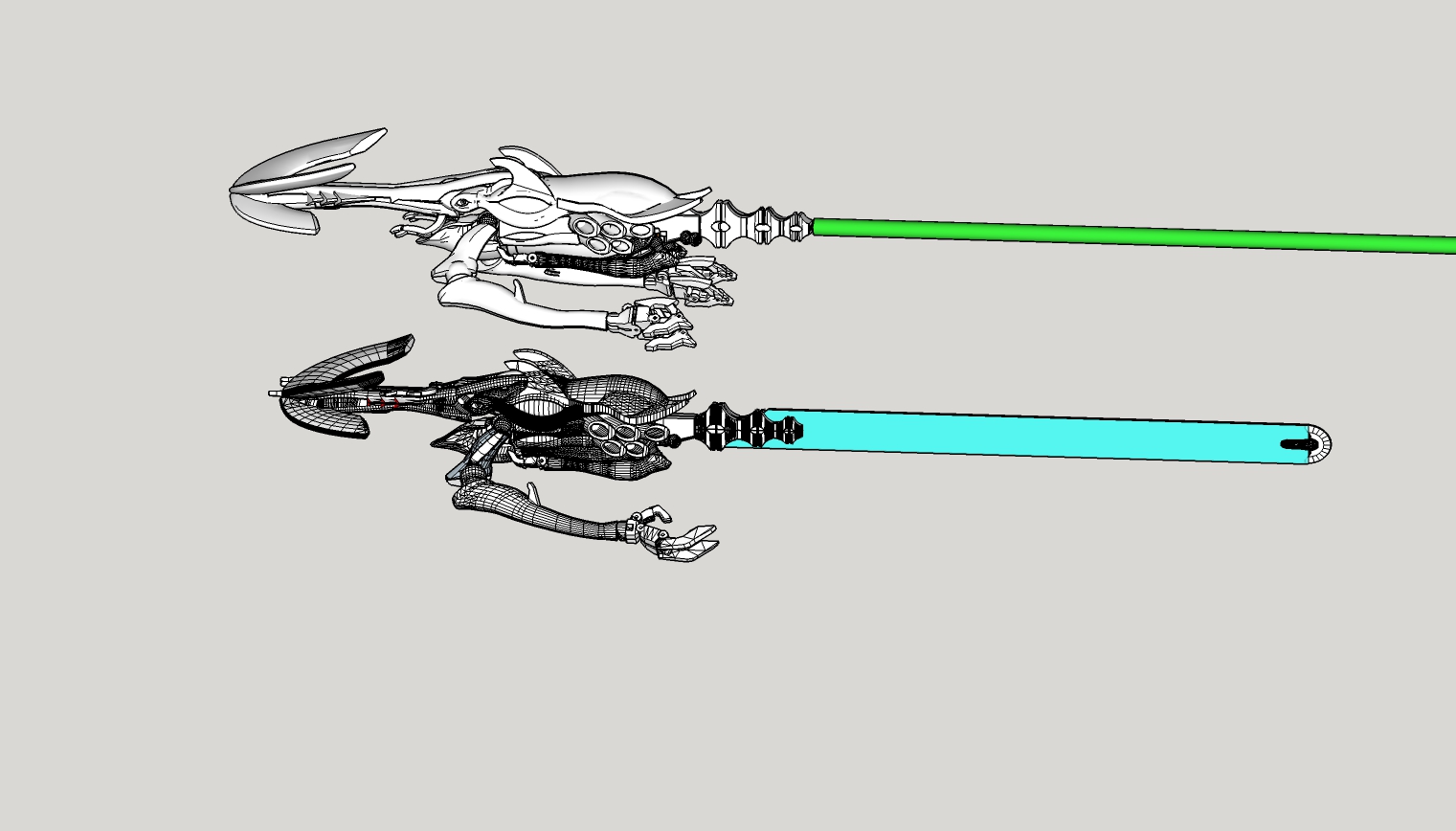

02 old.jpg

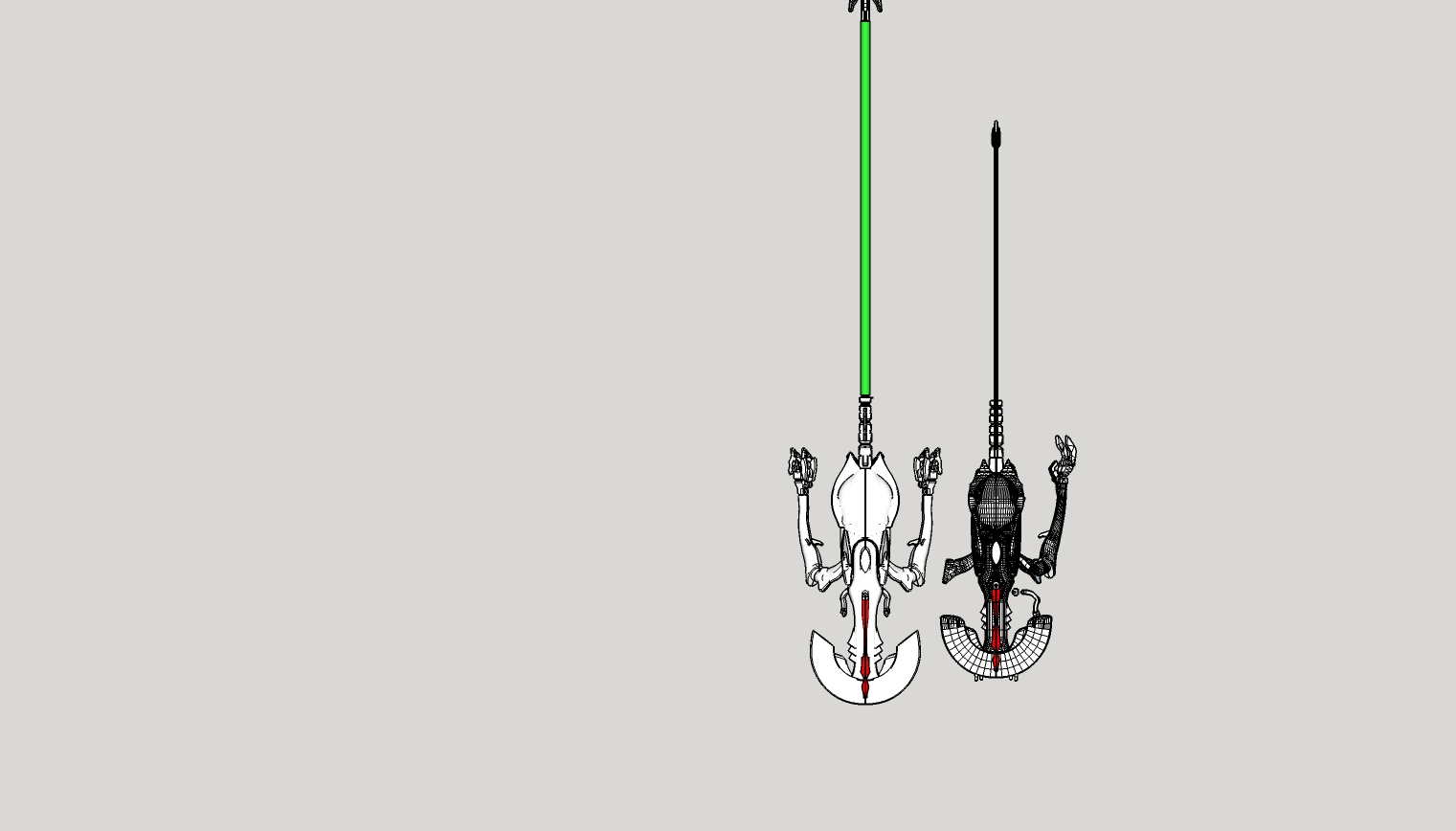

01 old.jpg

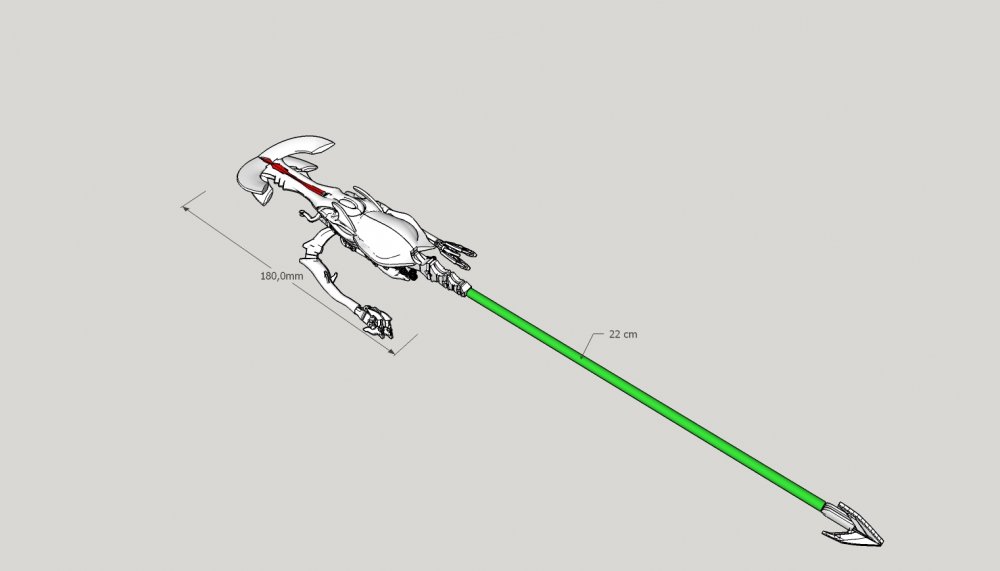

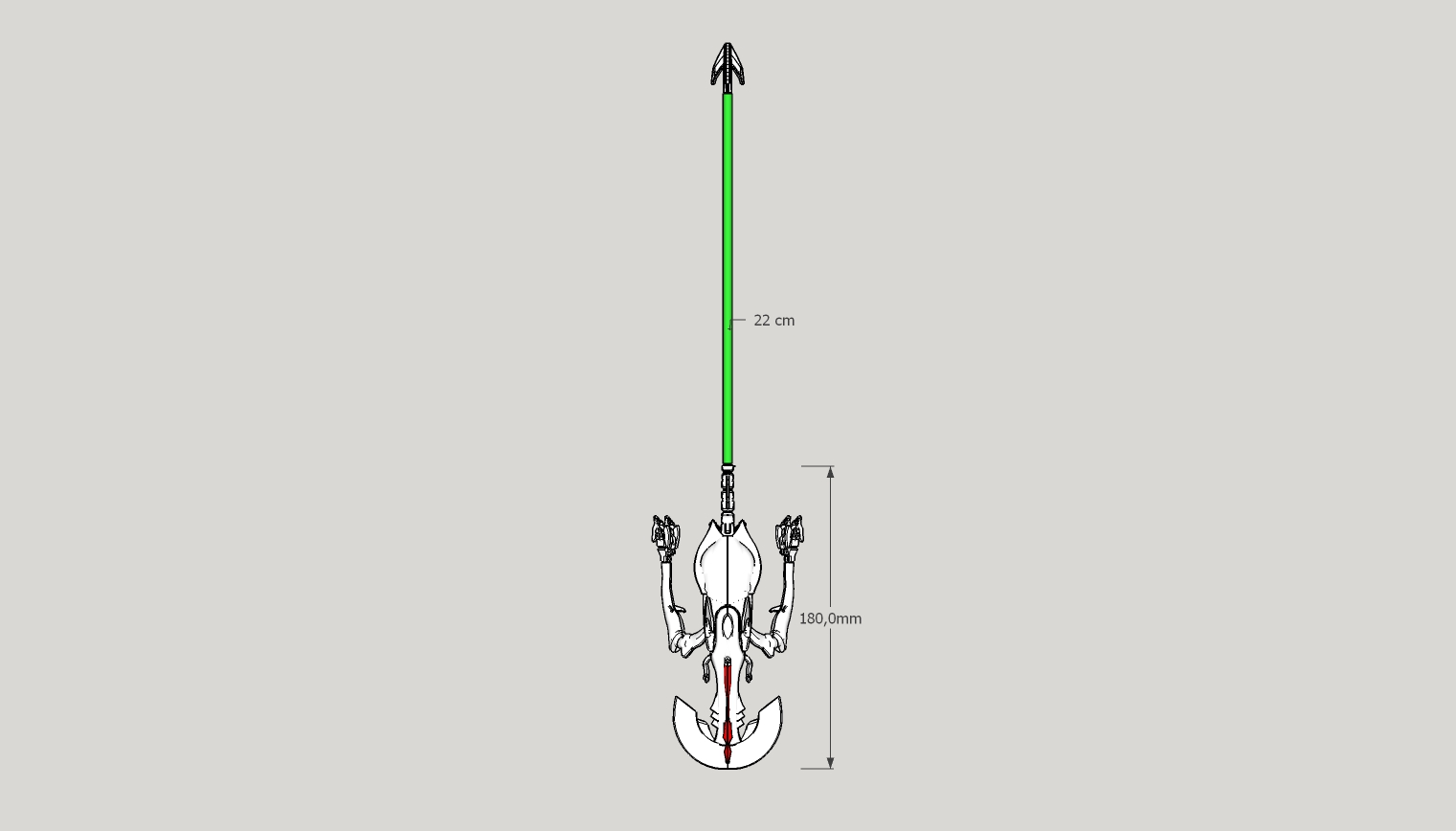

34b view.jpg

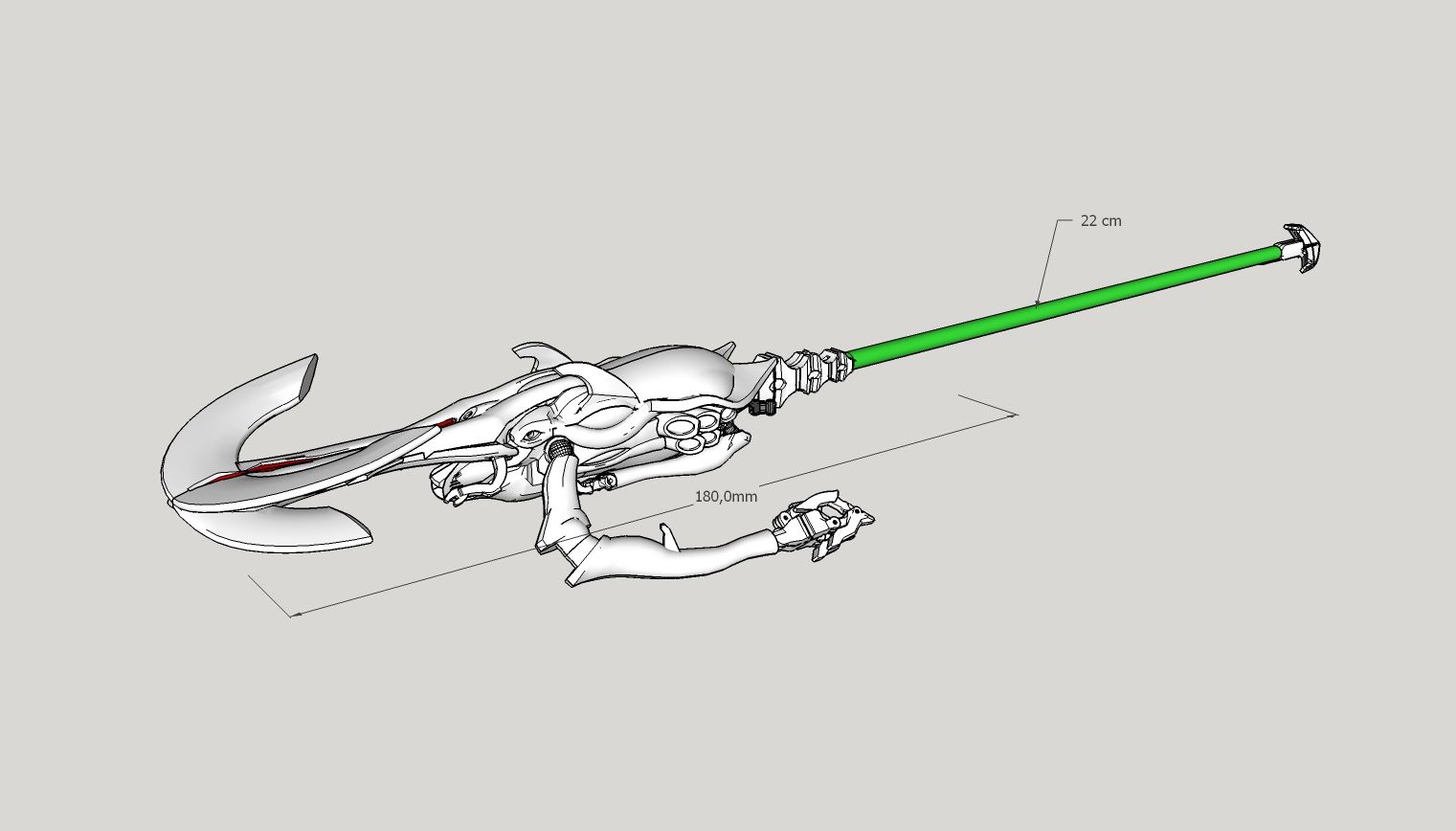

34 view.jpg

side view.jpg

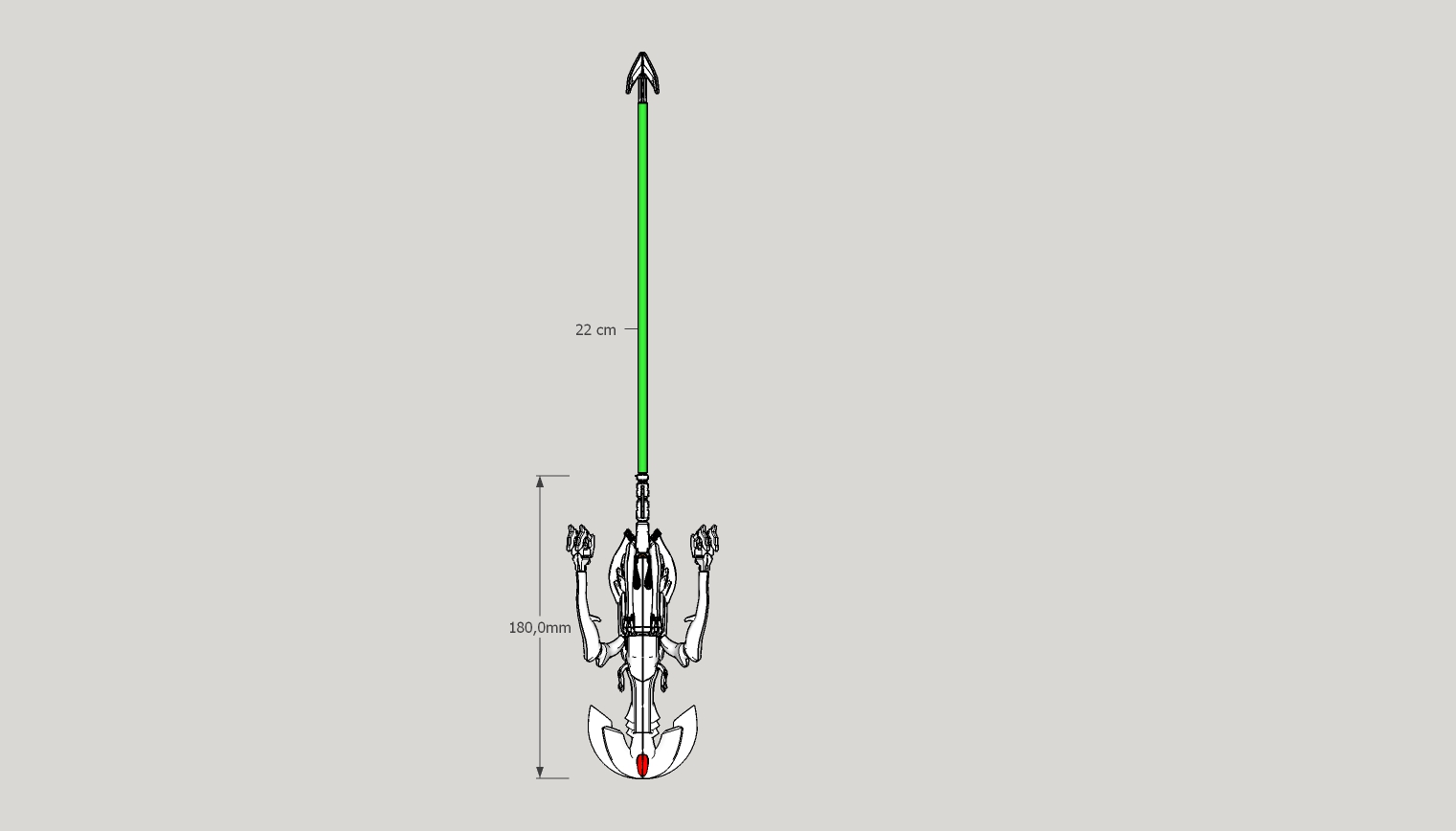

bot view.jpg

top view.jpg

Edited by Xigfrid
  • Upvote 1

Share this post


Link to post
Share on other sites

Good... Good...

That price range, I can swing. Just need to purge a few things from the pile to justify it.

Share this post


Link to post
Share on other sites

You are welcome Kelsain, take your time because you better let me experiment the assembling first on this one: I remember that cleaning the holes and wiring the model was not an easy task on the first version.

Share this post


Link to post
Share on other sites

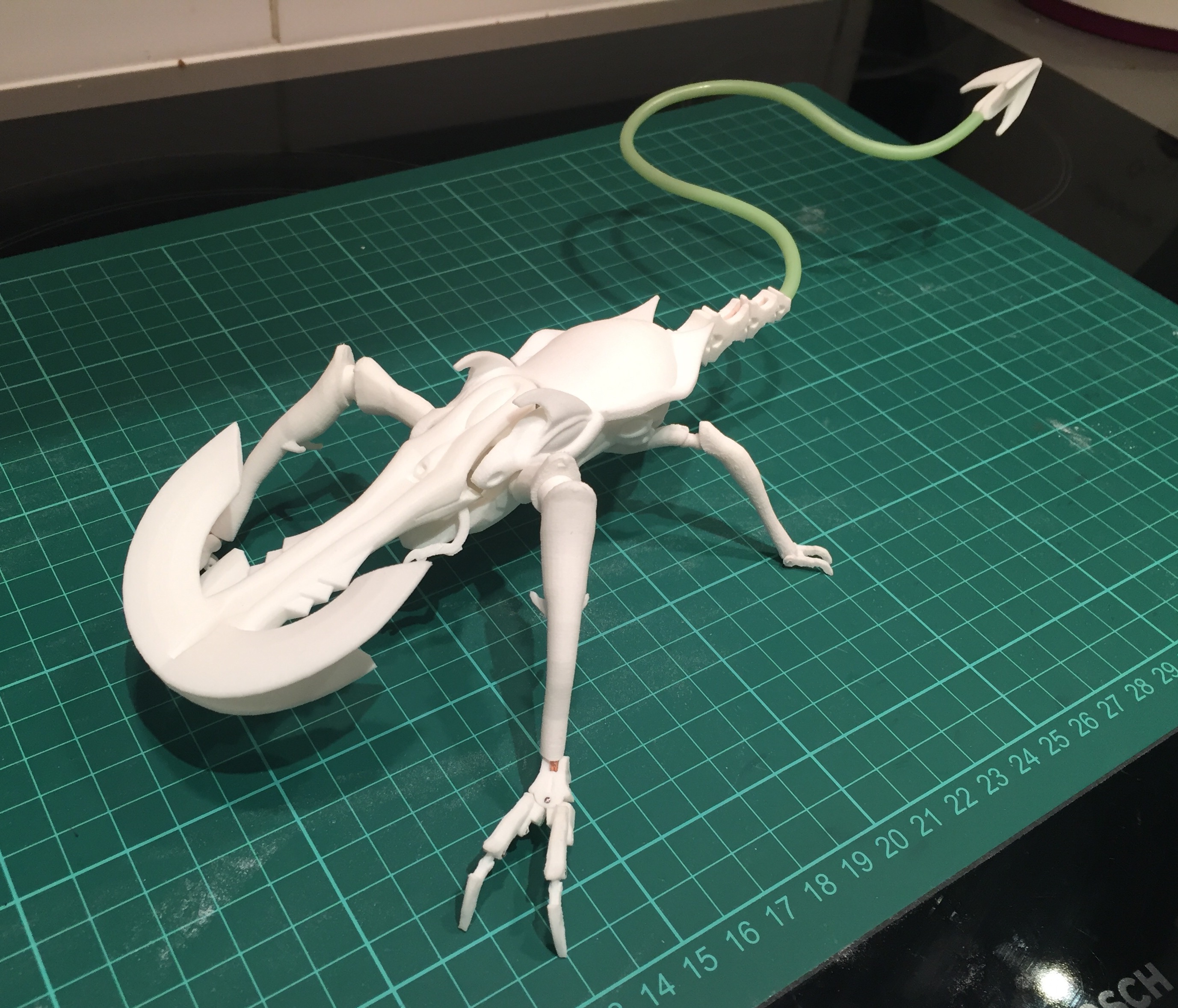

Pretty busy night thanks to a new Shapeways delivery.

had time to almost finish assembling this high mobility Vajra and I have to say this is really a beasty!

Sunce it uses screws and 0,7mm copper wires, it is far sturdier than the previous one. And the bigger size and better proportions make it fantastic! I am really happy of the result.

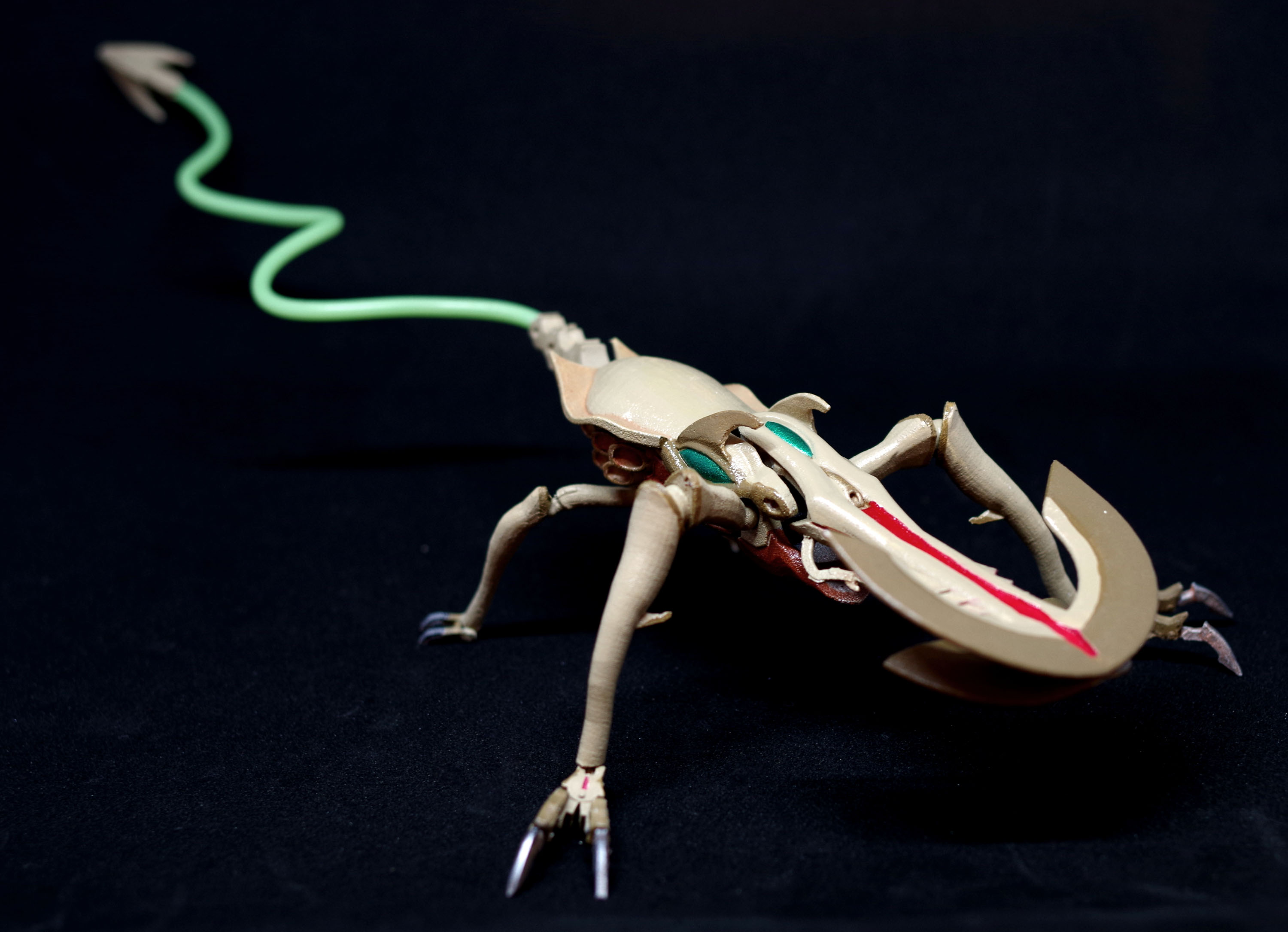

I will get more picture once painted


  • Upvote 1

Share this post


Link to post
Share on other sites

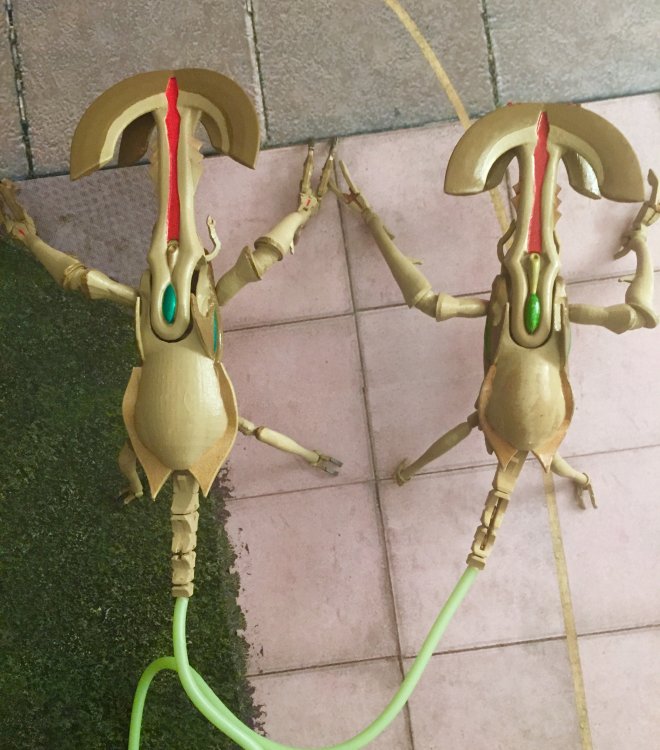

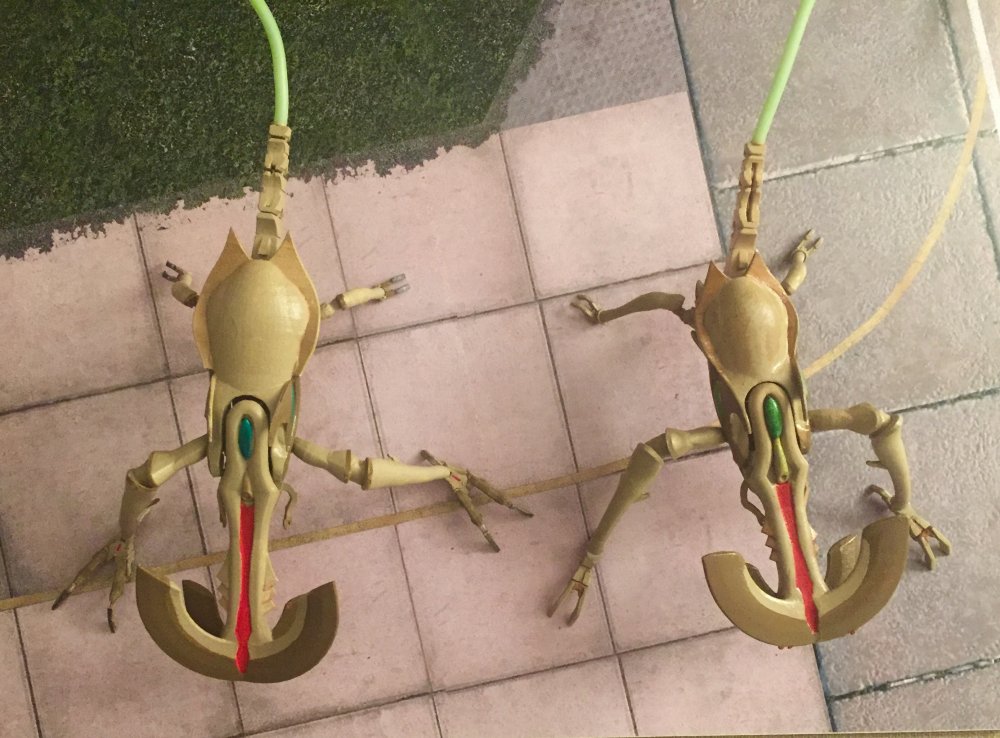

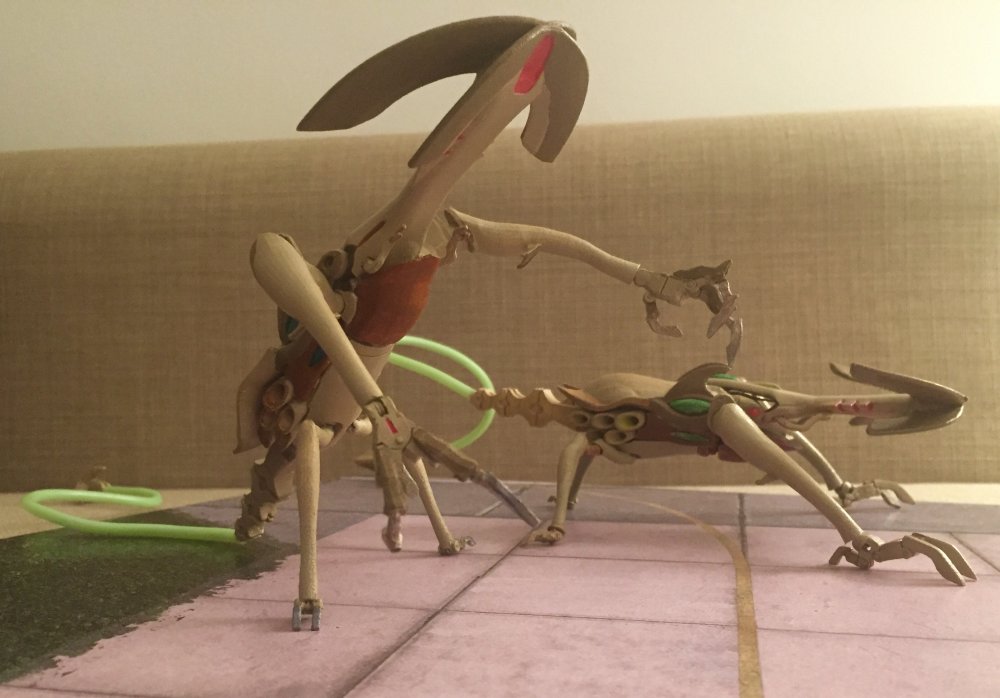

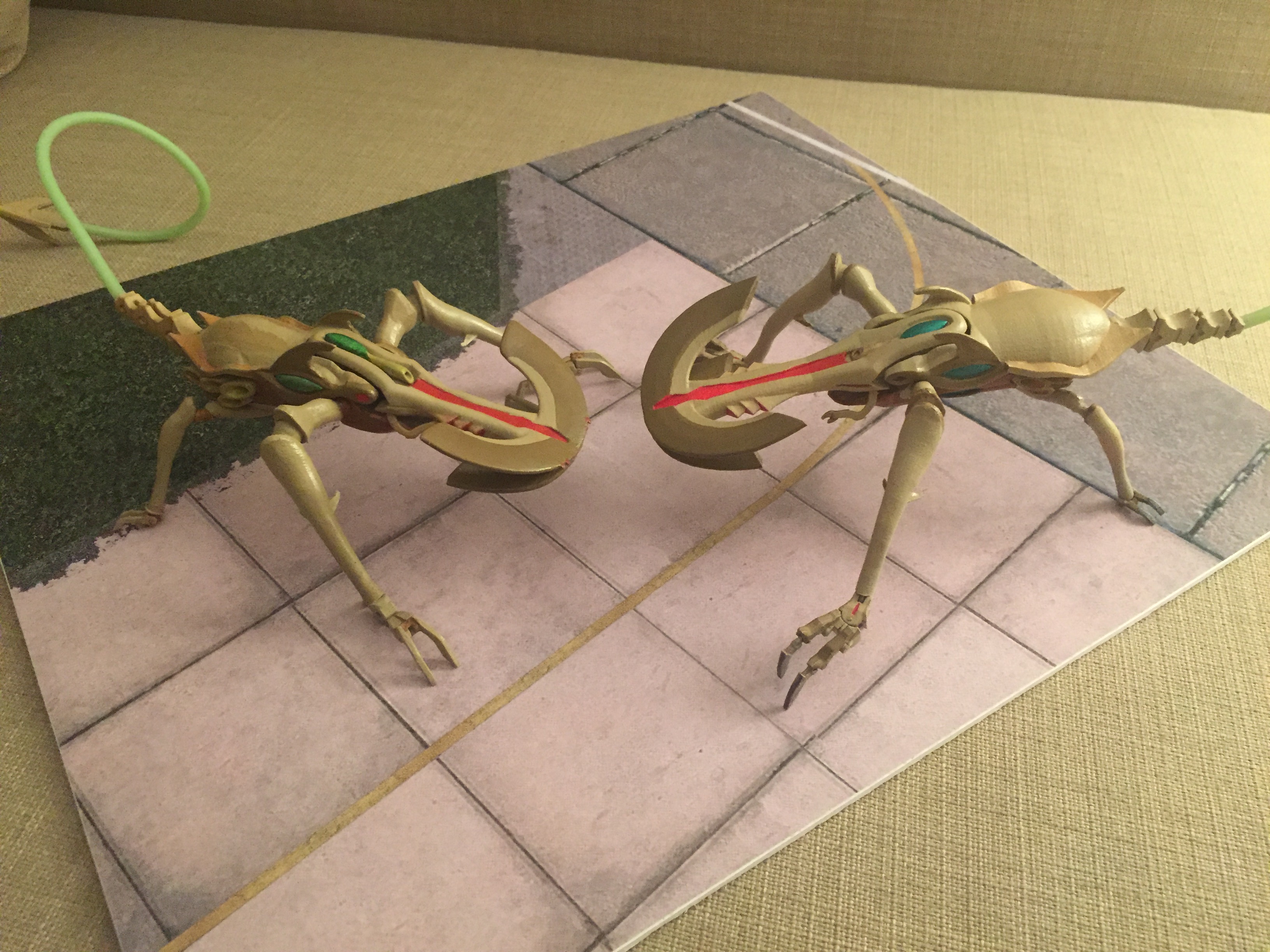

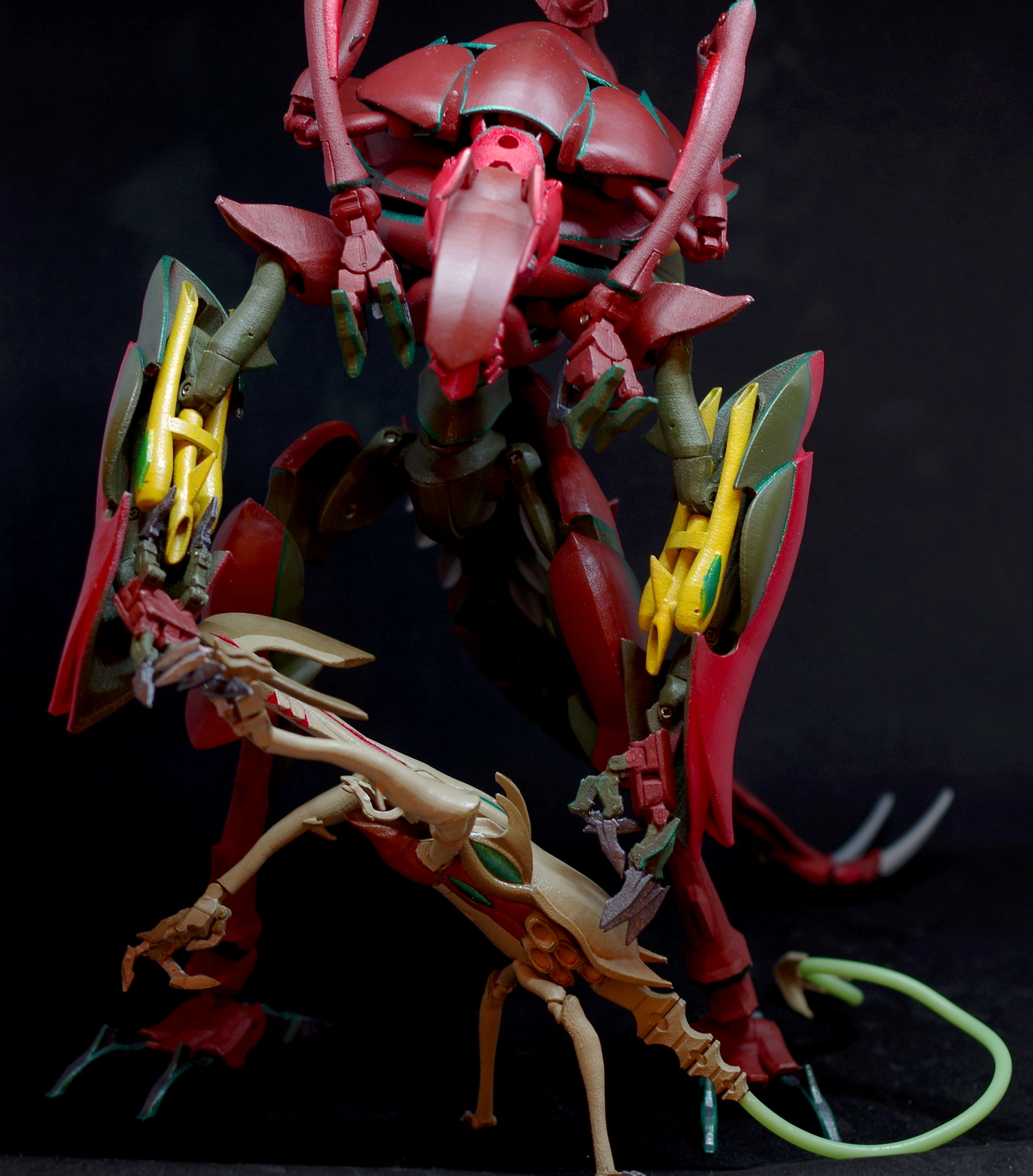

Little and big brothers on play ground! A few pictures of the new Vajra painted.

Note that I still need to figure out how to make the eyes. The previous one had the eyes shaped from super glue, for the new one I want to use some kind of plastic jewel or something more shinny.






  • Upvote 1

Share this post


Link to post
Share on other sites

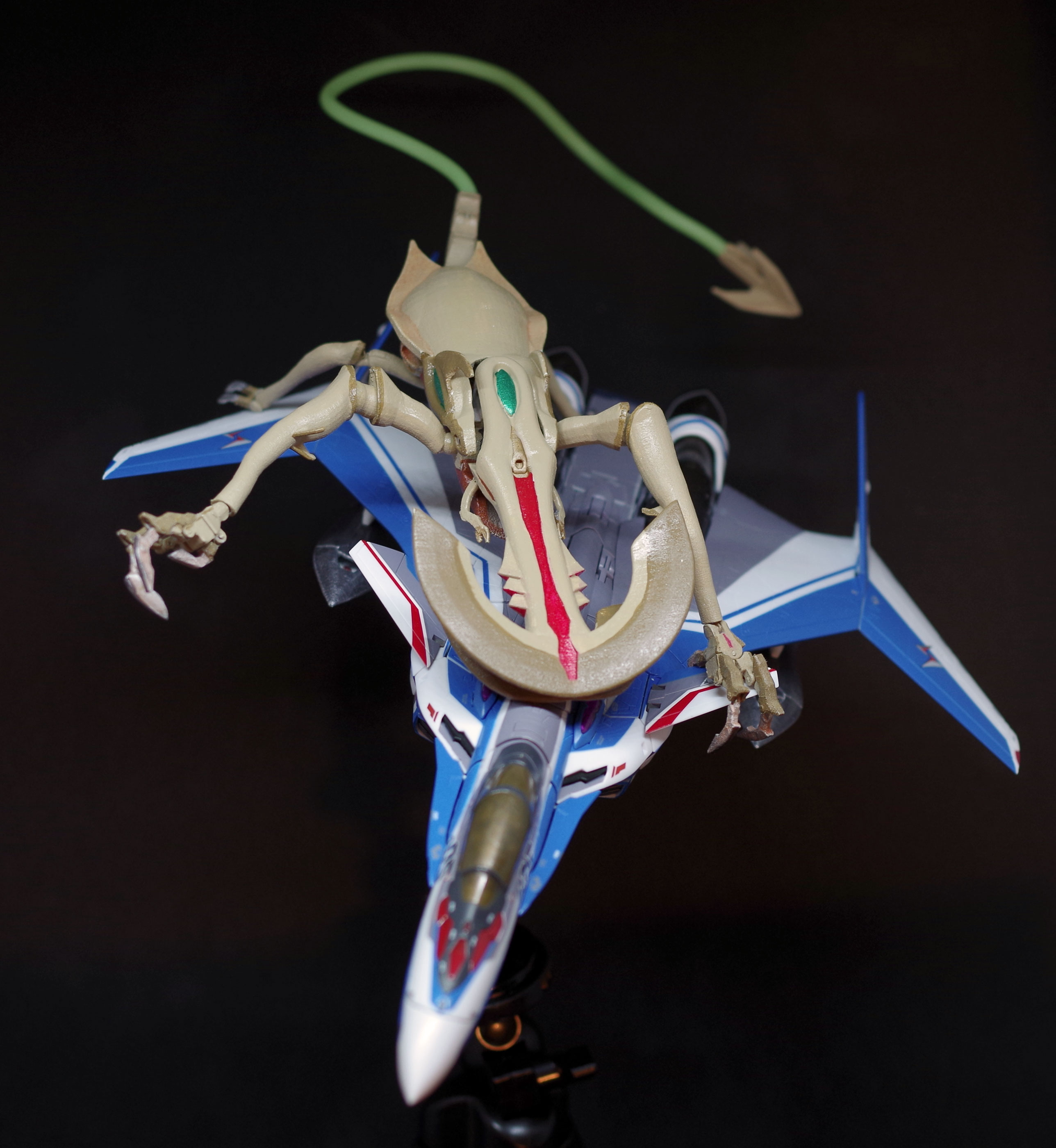

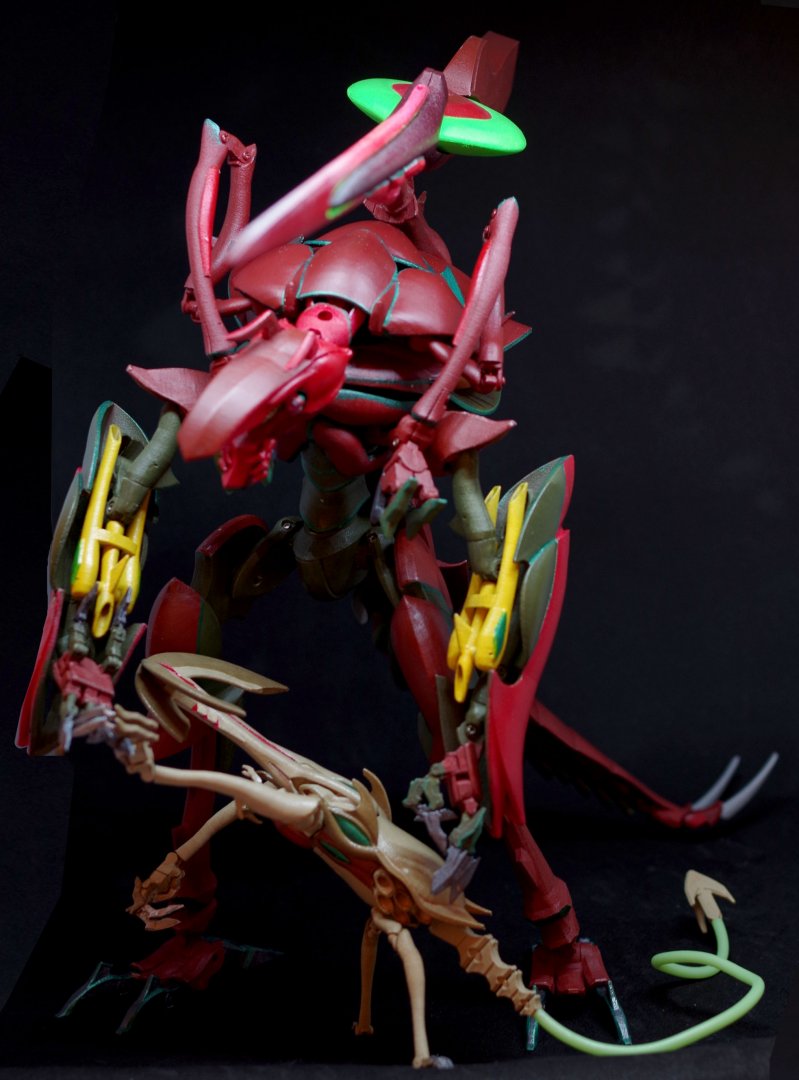

I made a few black backed shoots of this little one today. I don't know if Delta will ever come across the Vajra, but who knows !

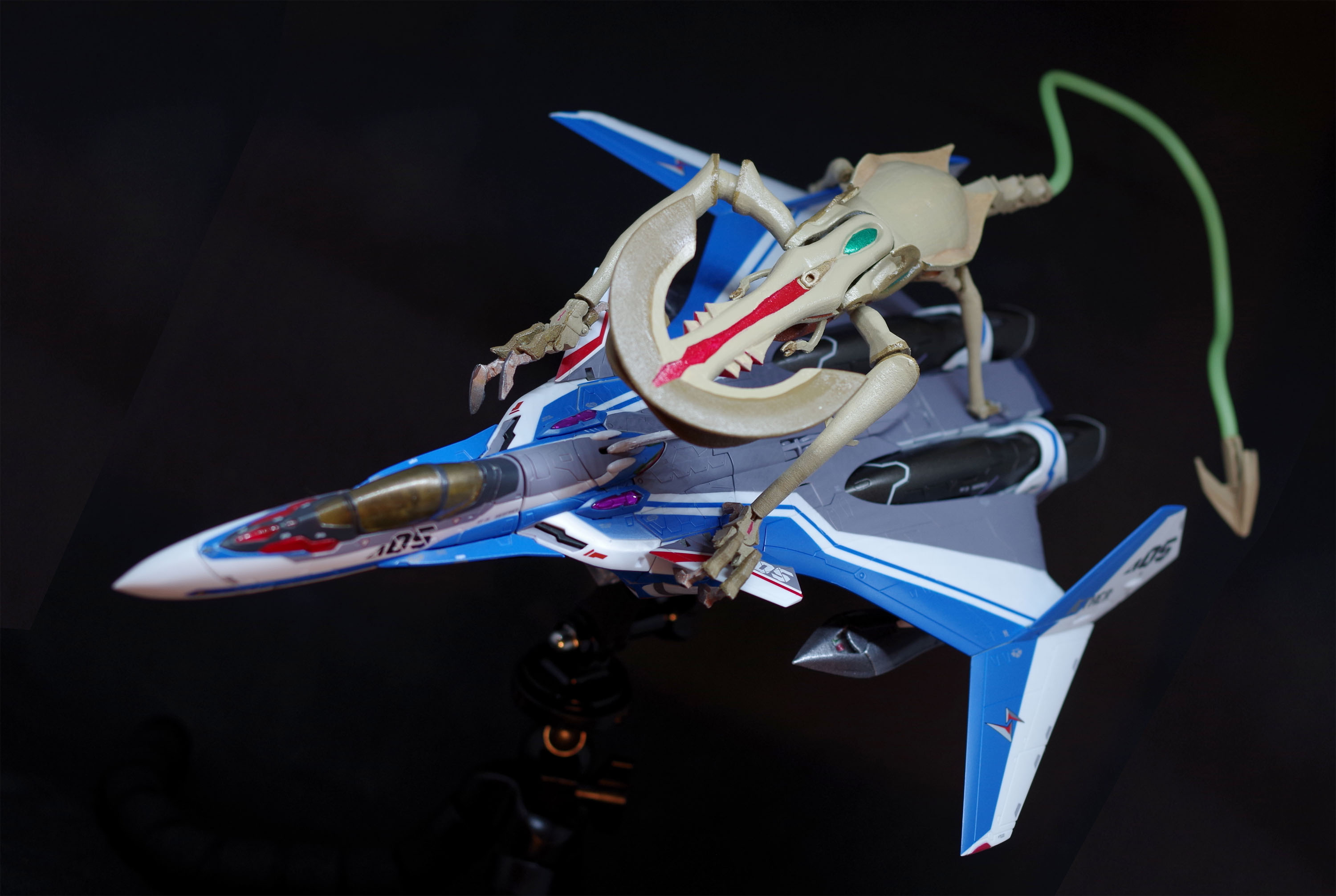

IMGP3839 copy.jpg



IMGP3867 copy.jpg

  • Like 1

Share this post


Link to post
Share on other sites
On September 26, 2017 at 5:38 PM, Xigfrid said:

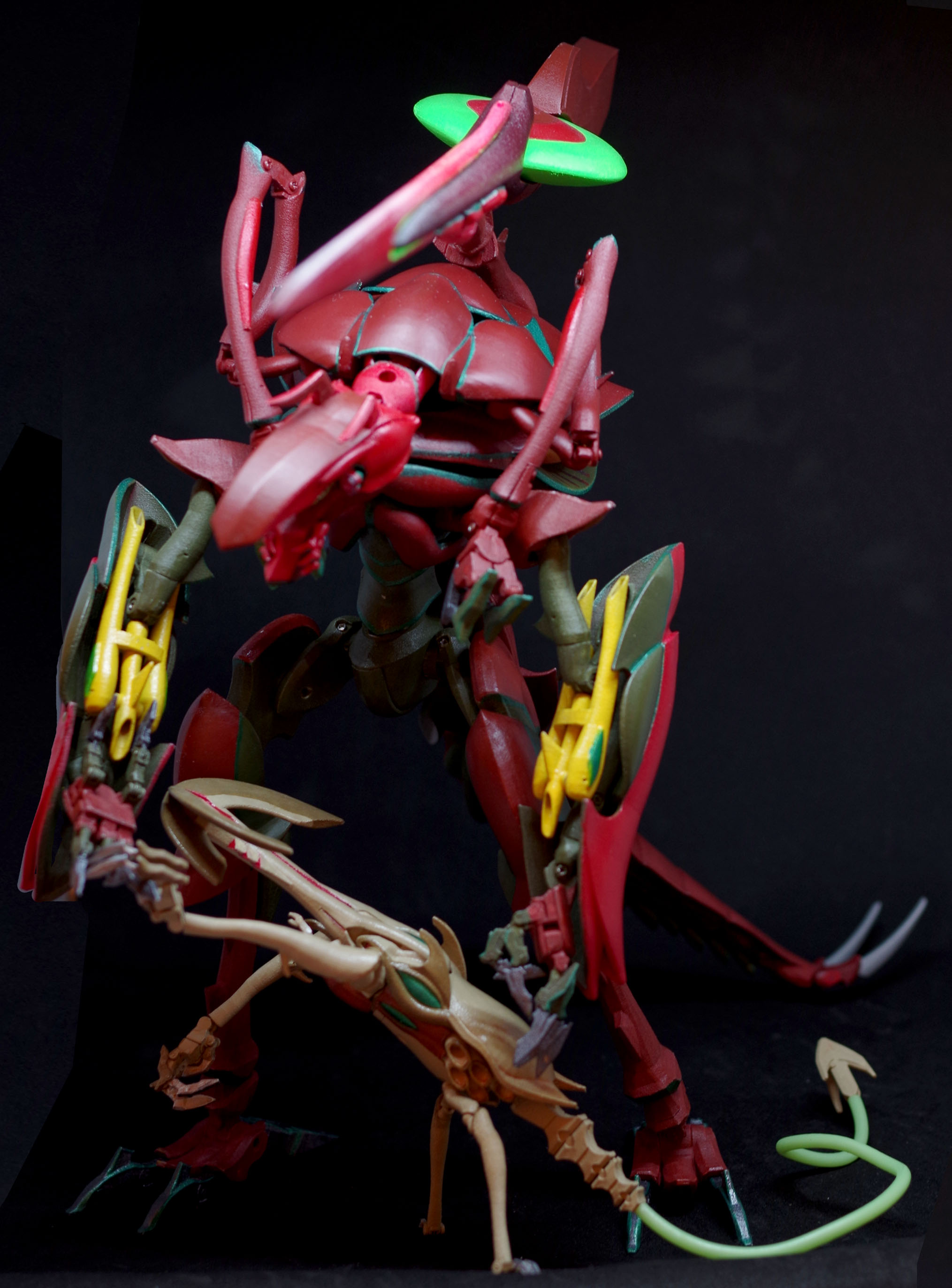

IMGP3867 copy.jpg

Who's a good boy? Oh, who's a good boy? Yes, you! Yes, you are!

  • Like 3

Share this post


Link to post
Share on other sites
16 hours ago, Kelsain said:

Who's a good boy? Oh, who's a good boy? Yes, you! Yes, you are!

That totally fits the spirit

Share this post


Link to post
Share on other sites

Amazing work....hey if you need SLA 3D printing services let me know I can get you a good deal. I have a formlabs form 2

Share this post


Link to post
Share on other sites

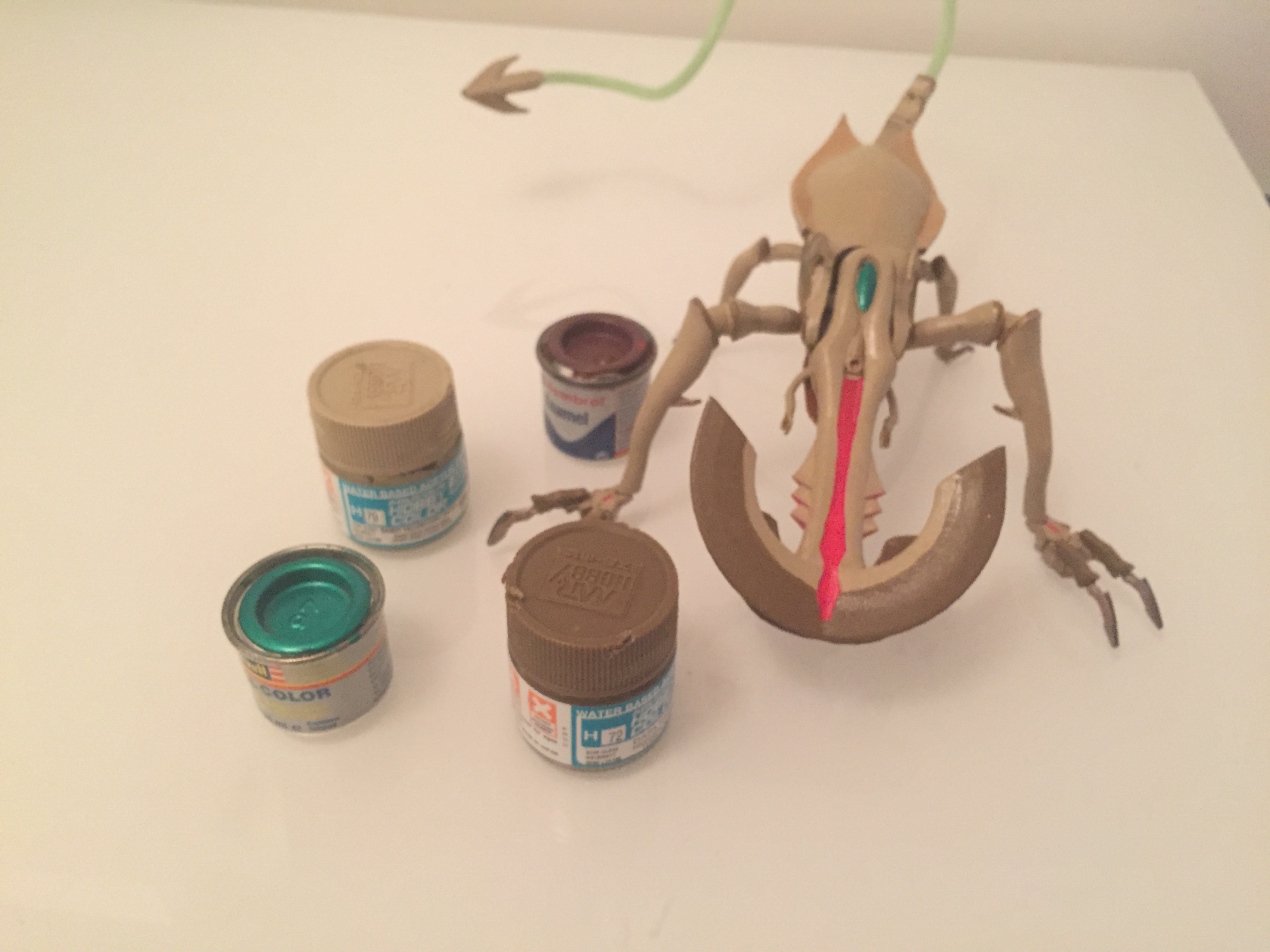

Mr Hobby H79, Dark yellow, as base color.
