Yamato 1/60 Fan Racer (Happy Minmay Custom)

Recommended Posts



Happy New Year everyone!

Thanks to the Workbench guys as always.

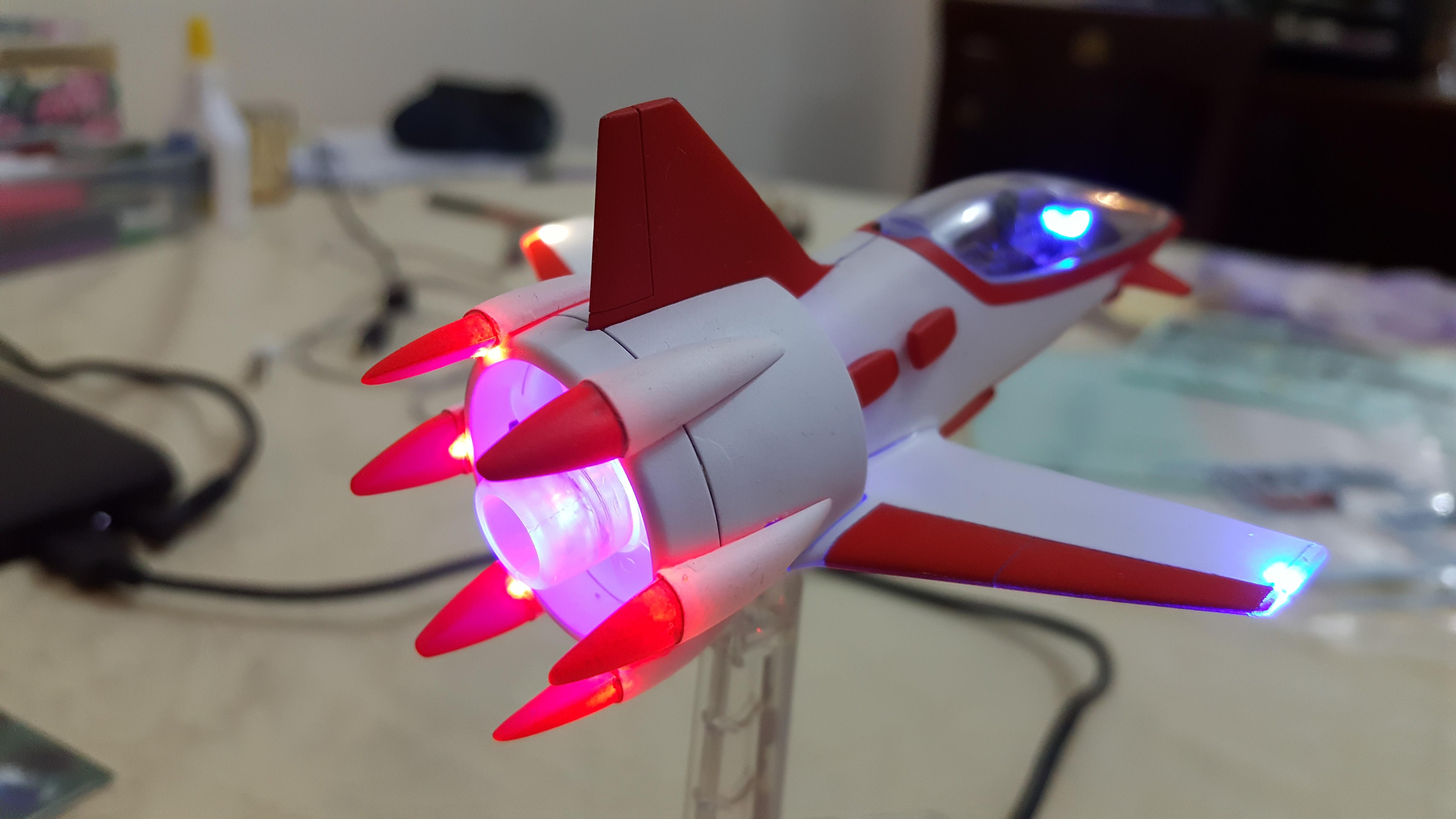

2017-01-19 02.53.02.jpg

Edited by arbit

Share this post


Link to post
Share on other sites

Love it! :wub:



Share this post


Link to post
Share on other sites

I reckon get the flash to be max brightness cycling on/off in 300millisec bursts for 2 or 3 cycles then off for 2 seconds.

That will be two seperate lines of coding in the sketch but the results should be good.

What LEDs are they? Addressable RGBs? If so you could even get the flash to be white with the off state instead being green/red

Nav lights are strobes to is a super bright quick on/long off state to grab attention.



When I get my noise sketch sort (if I ever get it right) I'll pass that on and you can use it for the dash screen to slightly flicker fade like a TV screen does.

Its good for Flame effects in engines too... if I get it to work right.

Edited by NZEOD

Share this post


Link to post
Share on other sites

The lighting REALLY adds life to it Arbit - congrats! - MT

Share this post


Link to post
Share on other sites

I'm no pro, and definitely not a skilled painter. But I encourage anyone interested to get into Arduino, because it is really easy and loads of fun. Six months ago, I didnt know the difference between the red wire and the black wire.

Some stuff I learned about effects of LEDs on plastic from my mistakes on this build:

On clear parts, LEDs will glow through the plastic, even after primer and paint. If there is no clear outlet for the LED, the light will be diffused.

It is very difficult to occulate LEDs on clear parts. I dont have the solution, but I believe people prime in black or metal to fully occulate clear parts.

On non-clear parts, LEDs will also shine through white plastic and darker plastics, but are easier to occulate with a few coats of primer and paint on dark plastic.

If you need a sharp lighting effect like a warning light, then you need to have the LED directly on the clear part, otherwise it will diffuse.

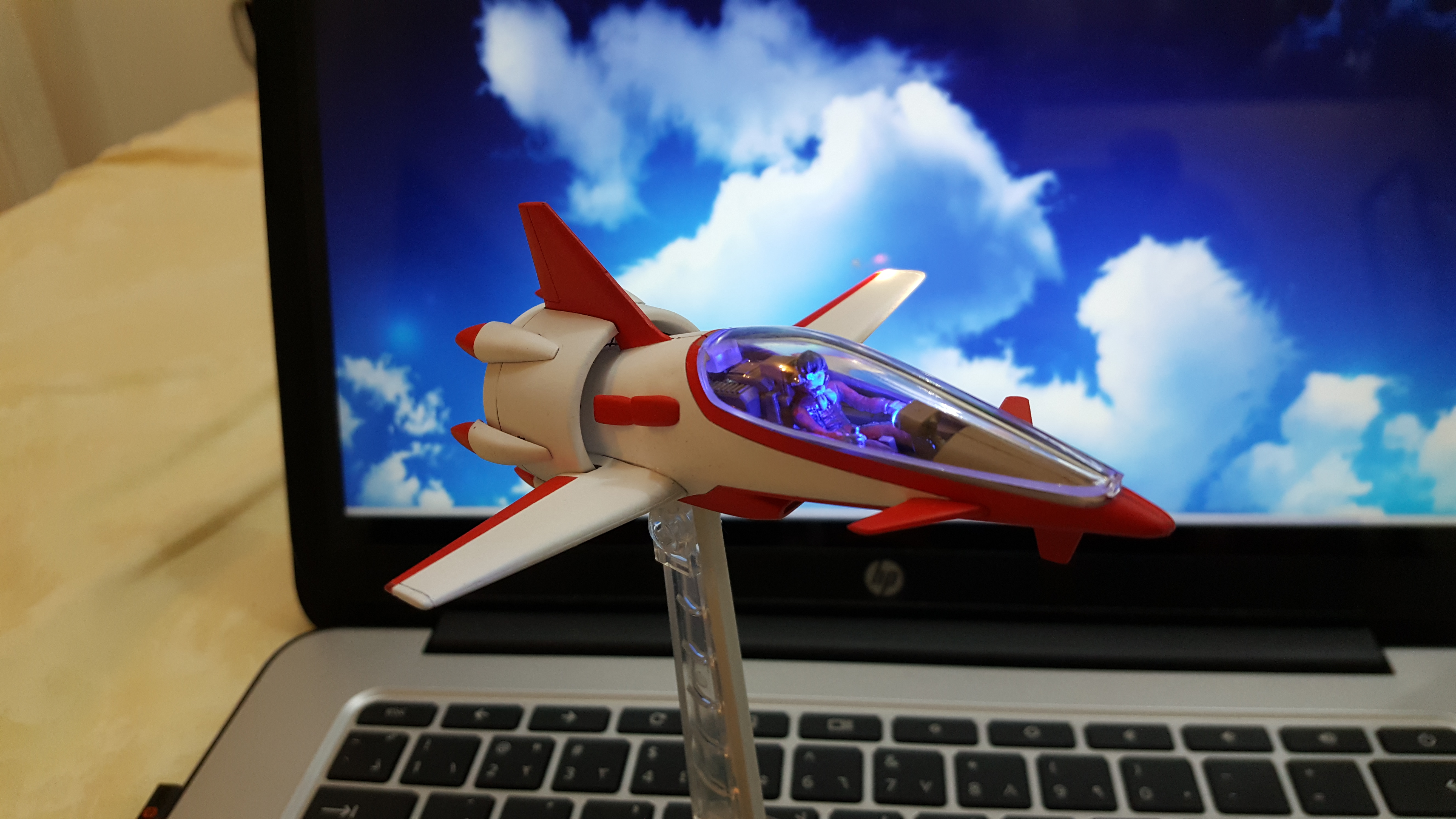

2017-01-18 02.20.19.jpg

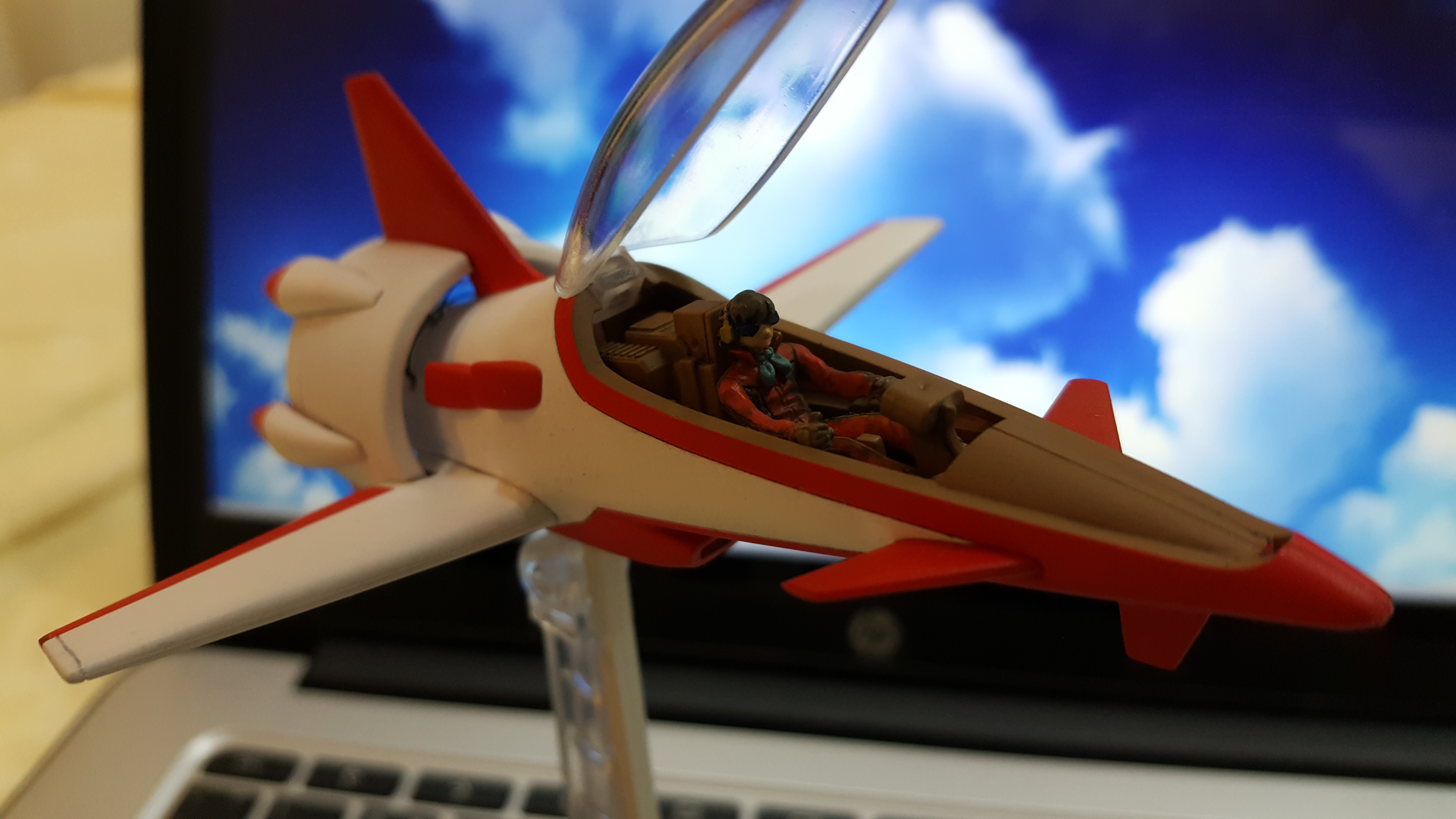

2017-01-18 01.33.22.jpg

Edited by arbit

Share this post


Link to post
Share on other sites
3 hours ago, arbit said:

I'm no pro, and definitely not a skilled painter. But I encourage anyone interested to get into Arduino, because it is really easy and loads of fun. Six months ago, I didnt know the difference between the red wire and the black wire.

Some stuff I learned about effects of LEDs on plastic from my mistakes on this build:

On clear parts, LEDs will glow through the plastic, even after primer and paint. If there is no clear outlet for the LED, the light will be diffused.

It is very difficult to occulate LEDs on clear parts. I dont have the solution, but I believe people prime in black or metal to fully occulate clear parts.

On non-clear parts, LEDs will also shine through white plastic and darker plastics, but are easier to occulate with a few coats of primer and paint on dark plastic.

If you need a sharp lighting effect like a warning light, then you need to have the LED directly on the clear part, otherwise it will diffuse.

http://grathio.com/2010/06/how_to_edge_lighting_displays/

http://www.instructables.com/id/Power-light-for-Glue-Gun/step5/Grinding-down-the-LED/

FOHH6SRGAA0F21W.MEDIUM.jpg?width=614

http://static.flickr.com/1296/4668768422_3d0245424e_b.jpg






The solution is to wrap them in a turn of fiol tape so the lights only projecting from the end. Remember also that you can get brutal with an LED on a sanding wheel and grind the clear over into any shape you want as long as you dont hit the Cathode/Anode cup. Grinding the top off flat then drilling it to a counter sunk cone makes a lens effect that directs the light into a thinner beam. I light pass with a mini blow torch will glaze the cutting and drilling back to transparent.

Share this post


Link to post
Share on other sites

I will try the foil on LEDs.

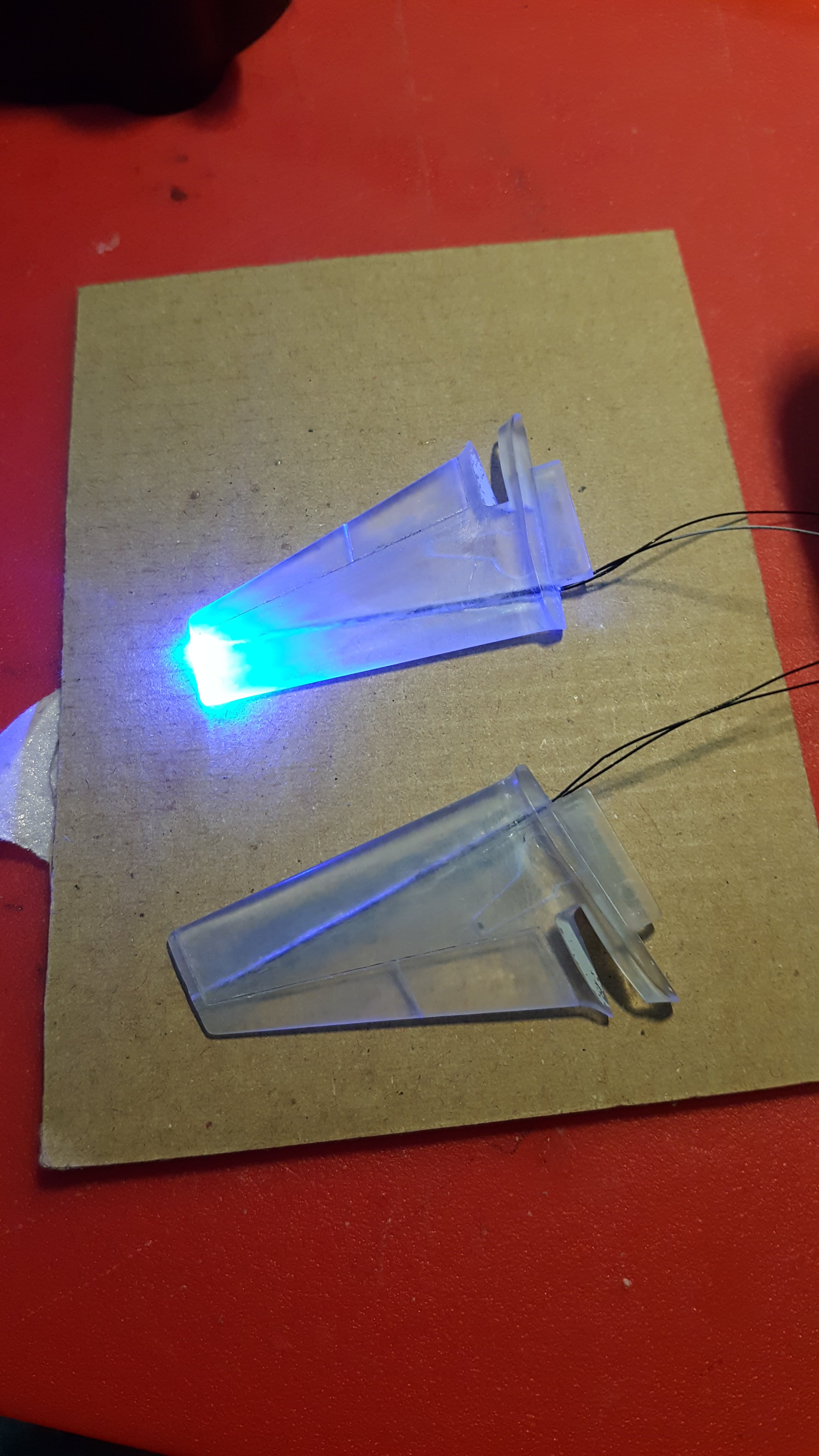

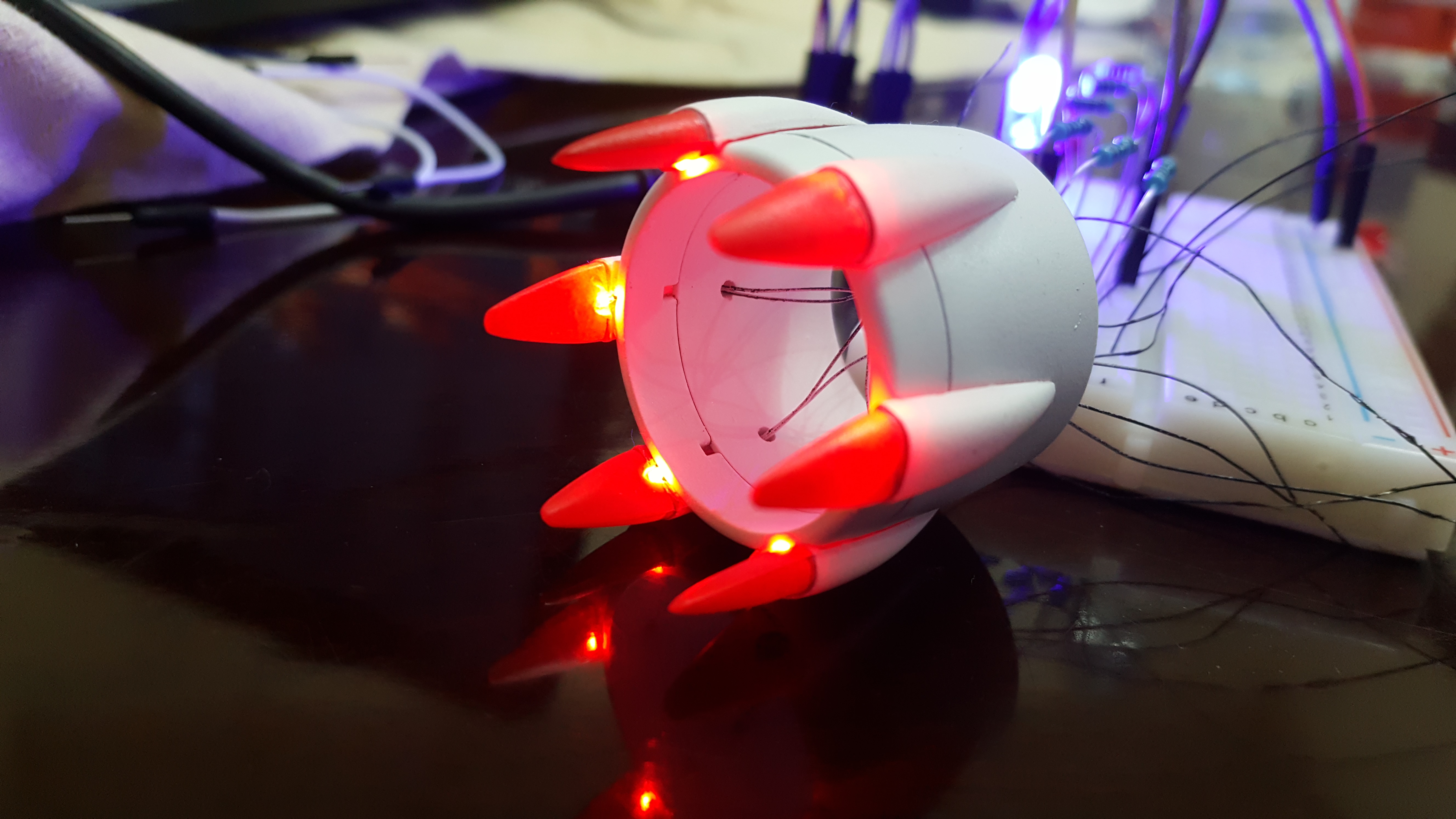

The wings and engine flares have tiny SMDs, which are even thinner than the wire, and much smaller than LEDs.

2016-12-17 12.50.49.jpg

Engine Test!

2017-01-16 00.58.52.jpg

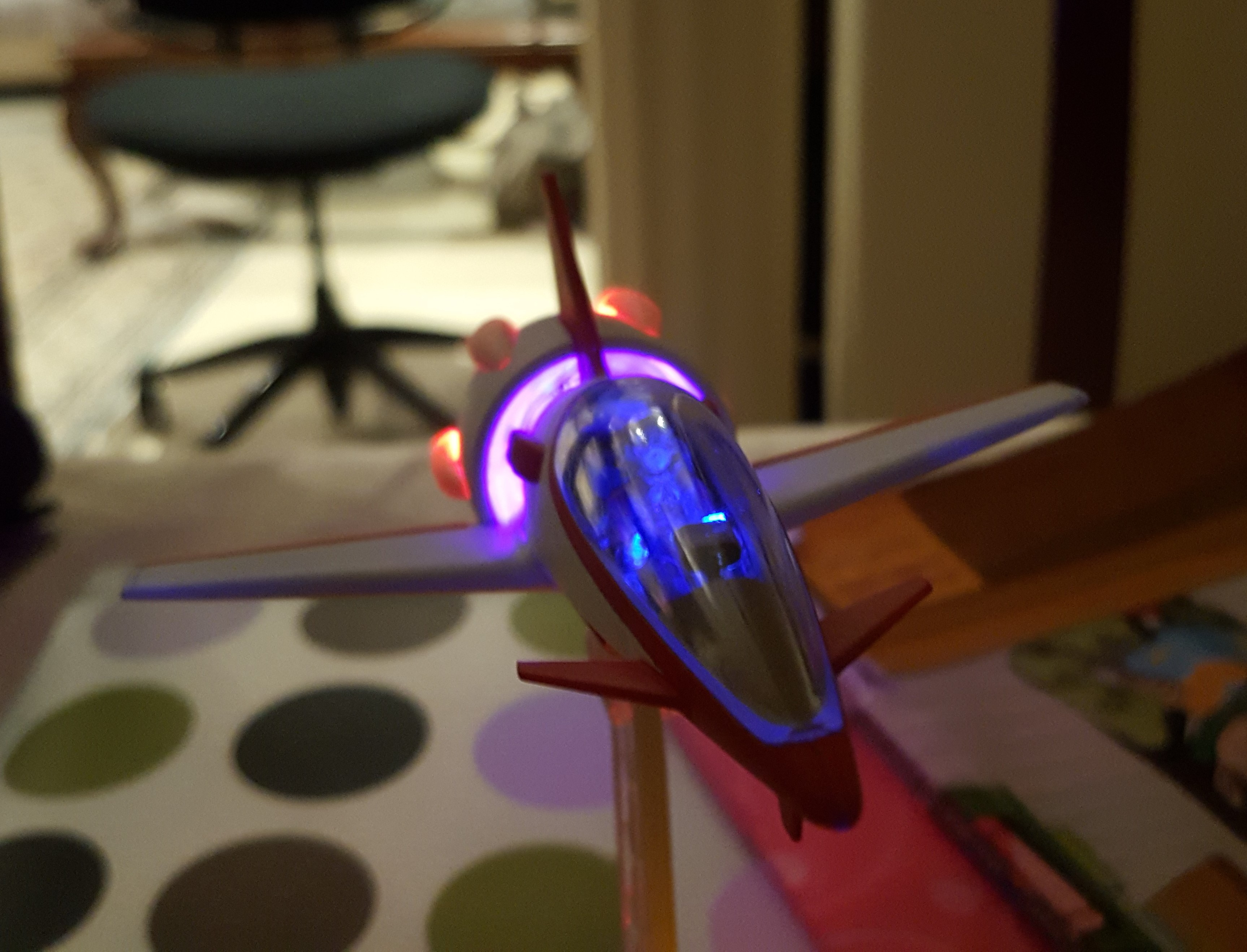

Some new effects on the cockpit.

Squeezed some side glow fiber in the engine.

2017-01-20 01.19.44.jpg

Edited by arbit

Share this post


Link to post
Share on other sites

Great job arbit! The only thing missing is to make those turbines/blades spin. ^_^



Share this post


Link to post
Share on other sites

The new programming looks great Arbit!  I REALLY got to get into Ardruino - on top of everything else! - MT

Share this post


Link to post
Share on other sites

Thanks. The benefit is you can reprogram as you like without taking the kit apart.

There are much cooler effects yet to learn to make the engine rock and roll.



Share this post


Link to post
Share on other sites

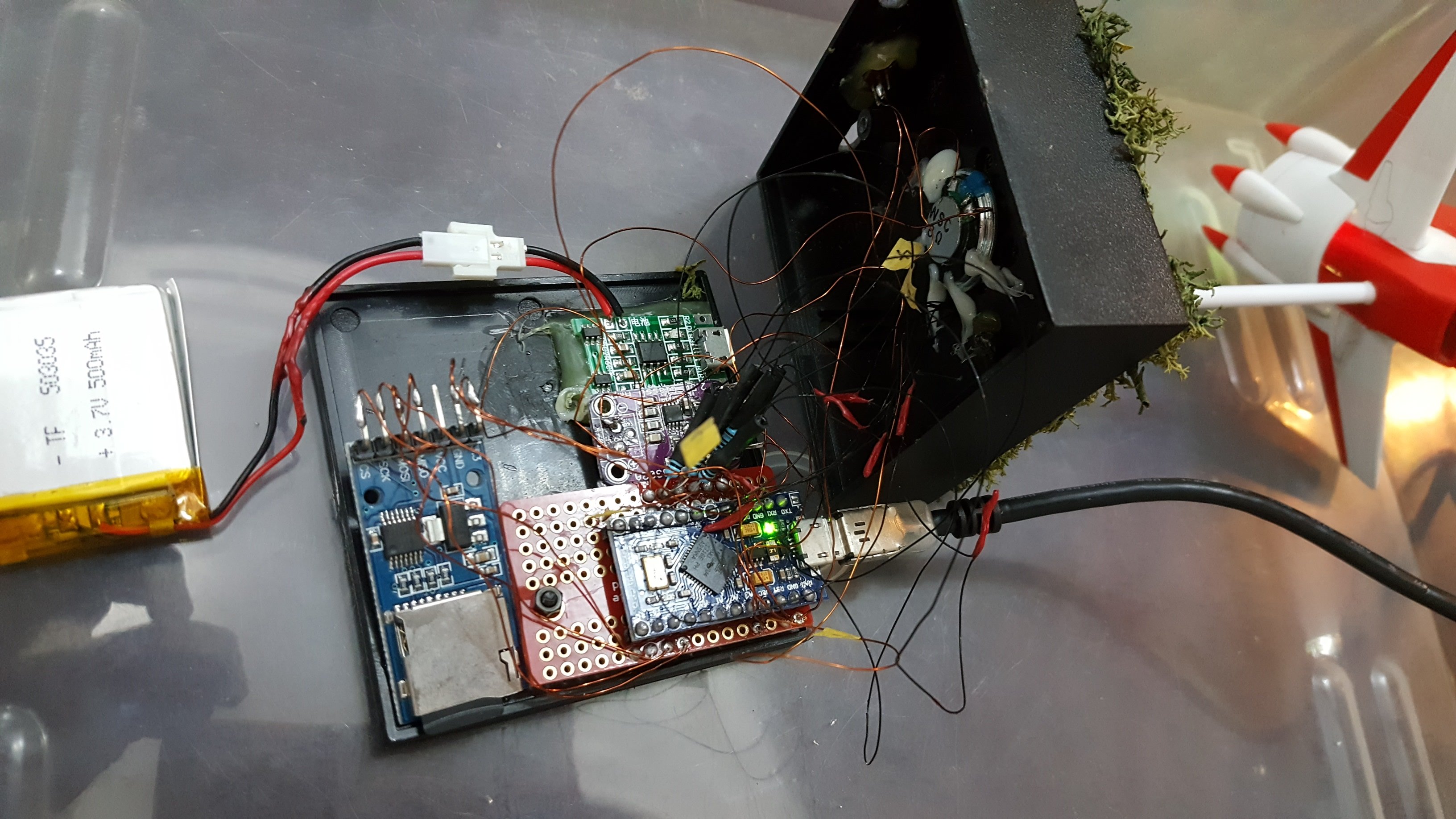

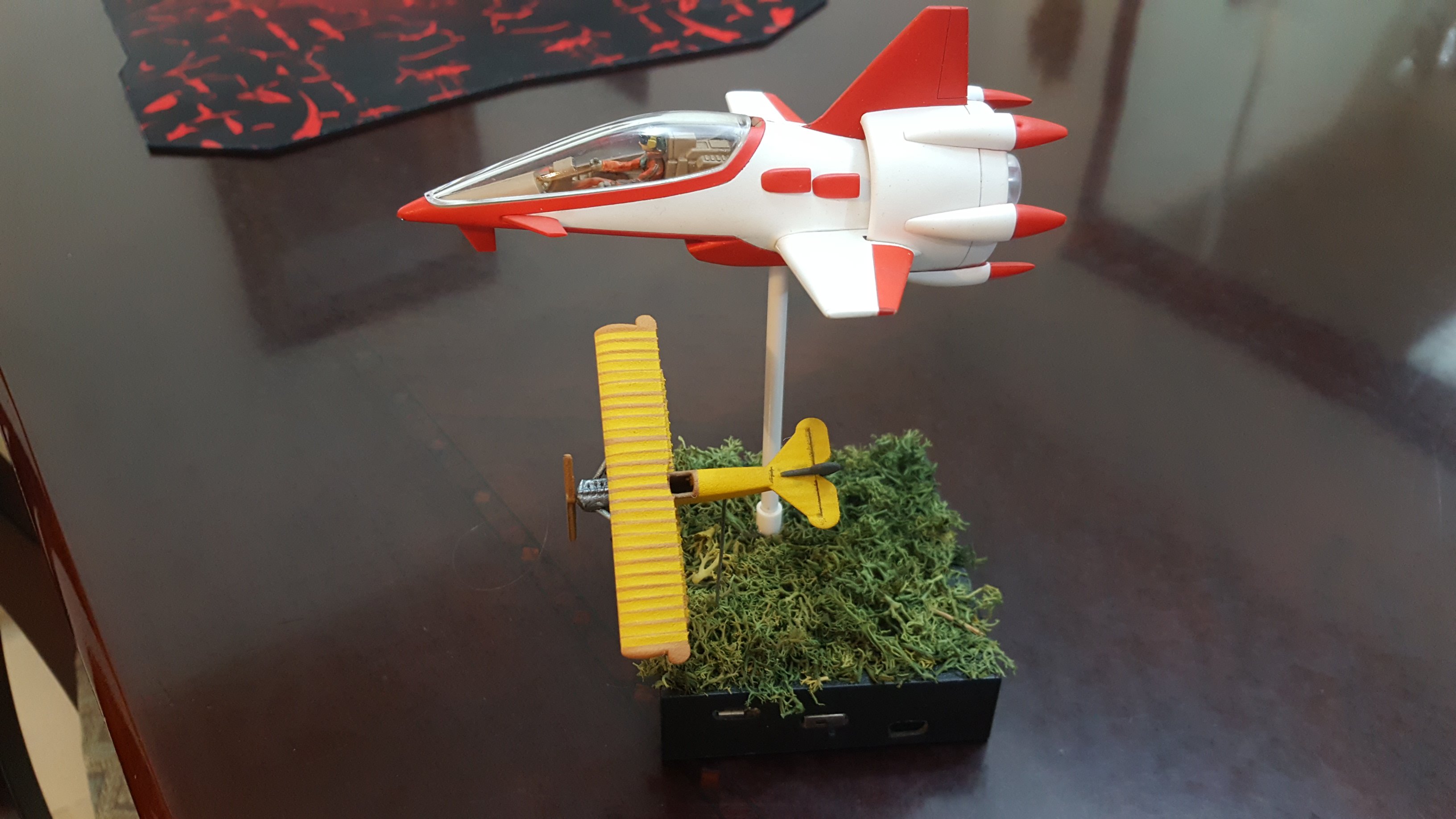

I needed to open this build to correct a resistor, so I went for a full retrofit while I was at it. I replaced the engine LED with an RGB neopixel, and added a new base with sound effects. Also got a nostalgic little friend from Shapeways to hang out with.

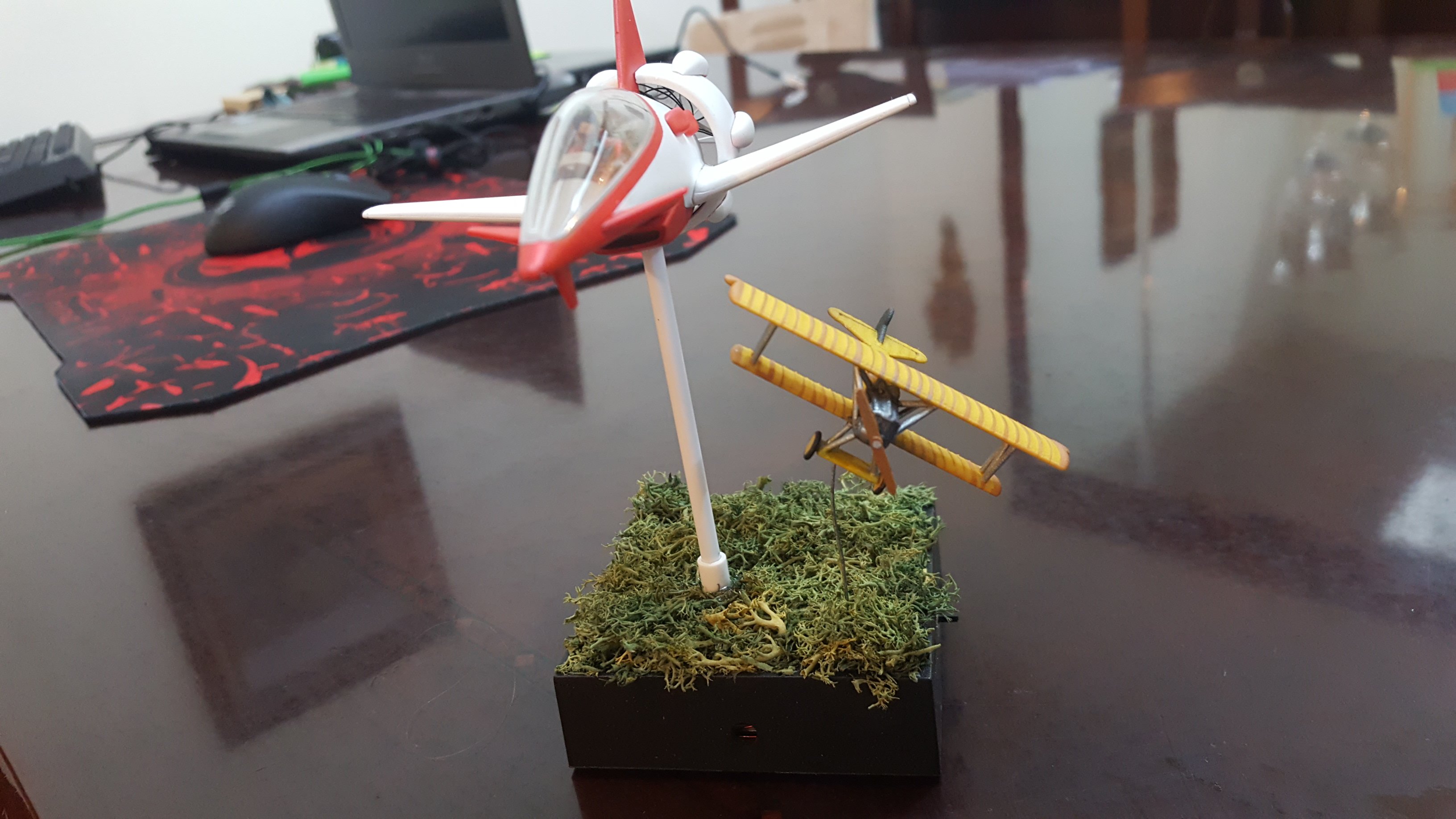

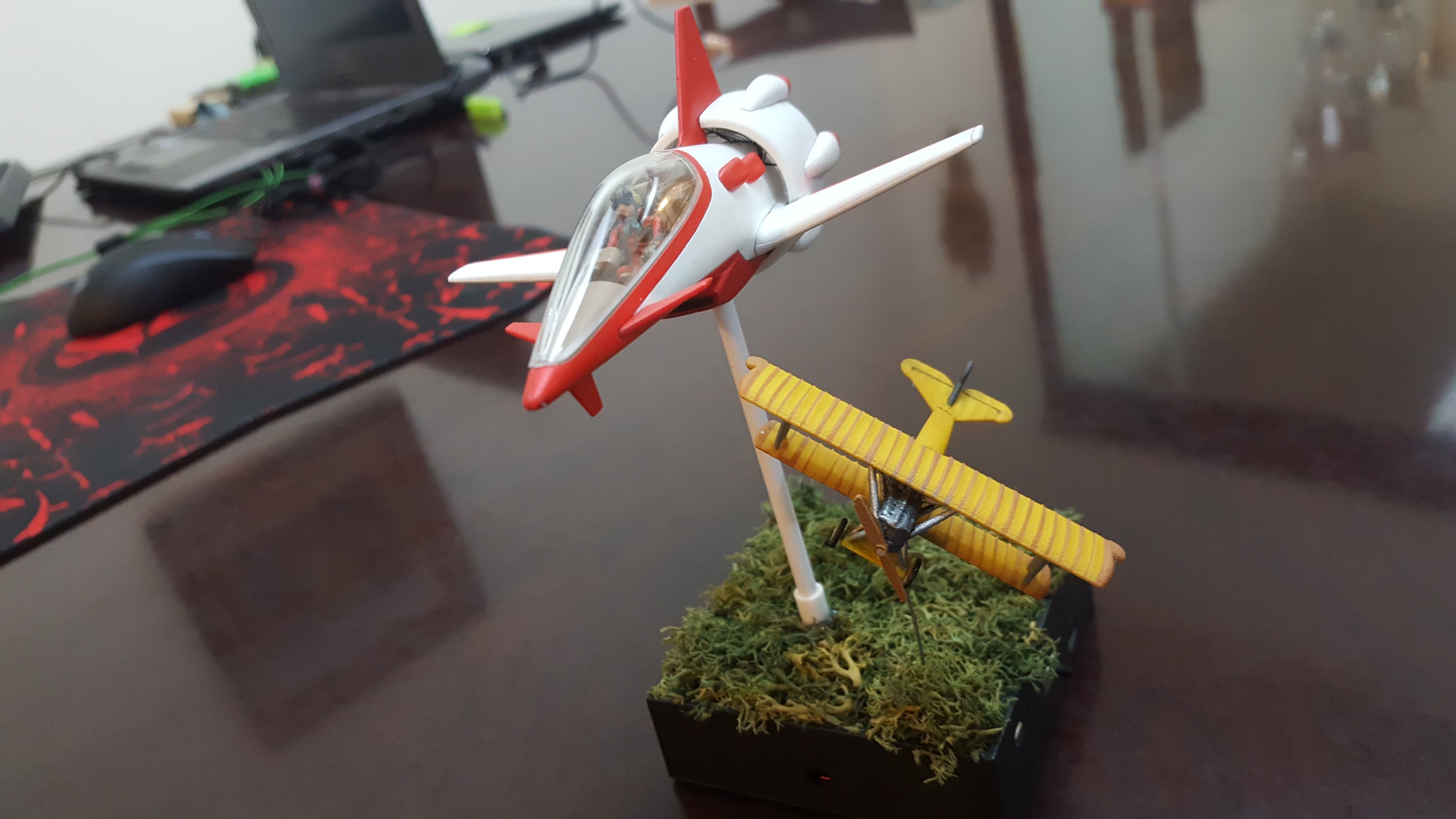

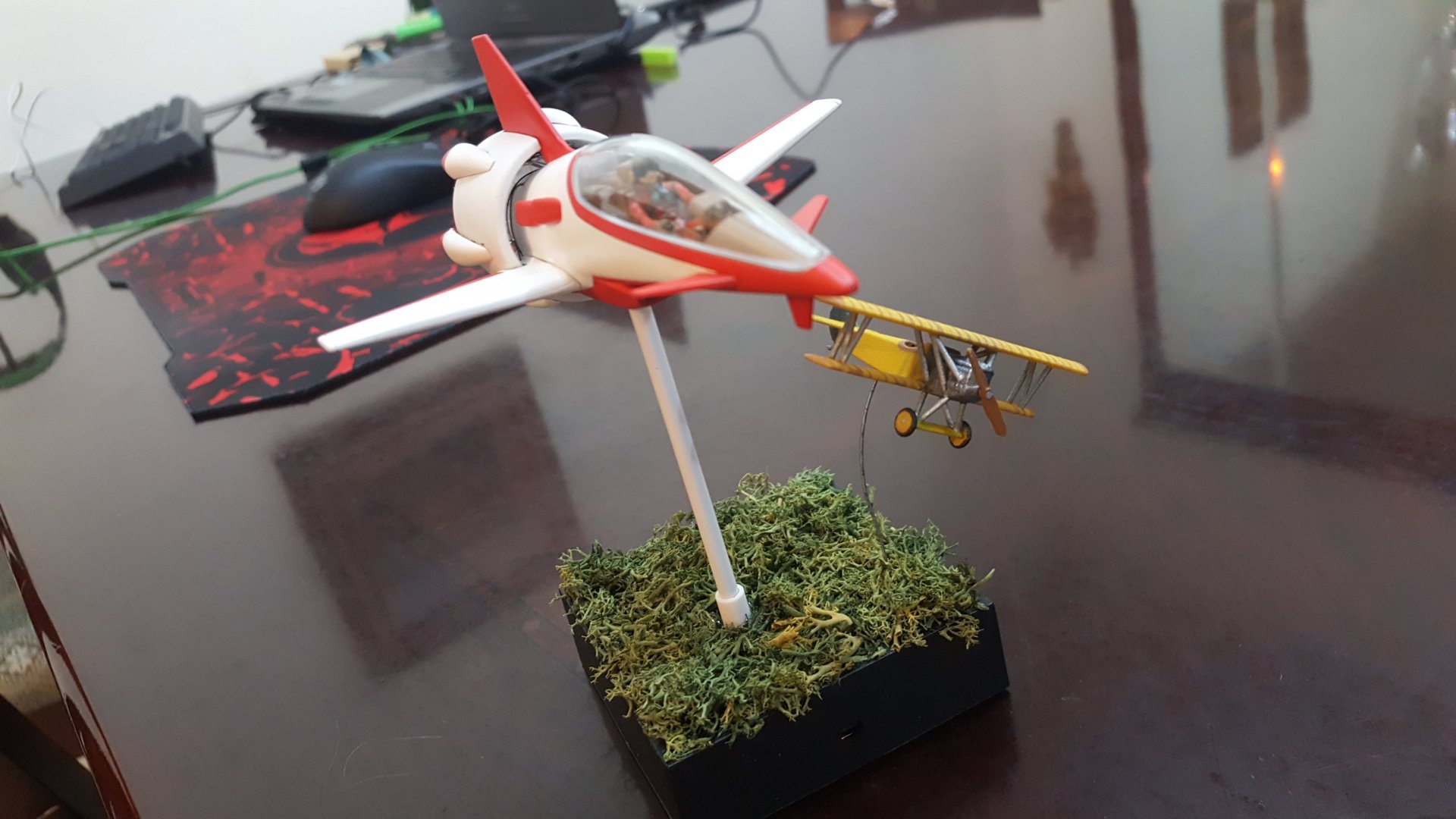

1204220206_2019-02-0102_26_38.thumb.jpg.96b50d574e9ee9c173365e50cde2d4df.jpg1985694767_2019-02-0102_26_49.thumb.jpg.42c8e046f91c56fca8aa2135c7703caa.jpg887314264_2019-02-0102_26_24.thumb.jpg.12aa2f603d3738a4bf36949cfa9197e3.jpg1085698245_2019-02-0102_25_17.thumb.jpg.72c0dd1b74f268957da3781ecdde0762.jpg315985121_2019-01-3122_22_46.thumb.jpg.aea973d6fb961cb2bdd771e151ad31e4.jpg

Share this post


Link to post
Share on other sites
On 2/1/2019 at 7:34 PM, derex3592 said:

WOW! Can we see it all lit up Arbit?

Thanks derex. Been working on it. Here you go.



Share this post


Link to post
Share on other sites

Quite amazing! I need to get back into my Arduino kits..

Share this post


Link to post
Share on other sites
