Quirtra Queramitzuu: Kamikaze Space Cucumber

157 posts in this topic

Hi Everyone.

As per the title, I've decided to set my scratchbuilding sights on the infamous "Kamikaze Space Cucumber" from episode 36 of the series that Quamzin uses to ram the Macross. I happen to really like the shape of the vessel and of course the main gun design is the cat's meow! ^_^

http://www.macross2.net/m3/sdfmacross/quiltra-quelamitz.htm

I'm not yet sure if I want to render her in full battle-damage or not, but I think I'll cross that bridge when I finally get to it, and that's still a ways off. I've settled on 1/5000 scale (the same as the mini-me Salan Scout) in order to keep a level of consistency with existing models. Also, the fact that there's a Macross Storm-Attacker in plastic that's been floating around for 25+ years makes the potential for a diorama too sweet to resist!

Alas, this is where it begins: I'll start rendering some diagrams and will probably have a first update by Friday or next Monday. After that, I'm off to pick an adequate-size cucumber to make the hull and some corn nibblets for the sensor thingamabobs :lol:

Edited by captain america
0

Share this post


Link to post
Share on other sites

I'm in!! About the version, in fact I were thinking into buy 2 kits (depending the price), to build it in both versions (a normal green one and the another brown, damaged and covered with grass)

0

Share this post


Link to post
Share on other sites

I'm in!! About the version, in fact I were thinking into buy 2 kits (depending the price), to build it in both versions (a normal green one and the another brown, damaged and covered with grass)

Actually, the Kamikaze ship wasn't brown, but purple (it was a Meltran vessel.) The reason it looked brown is because I think the top of the hull rusted from exposure to the elements and such. I know because I just re-watched Ep 36 a few times just recently :D

0

Share this post


Link to post
Share on other sites

I'm in for one possibly two depending on price. Can I assume that the model would have the ability to be built either with the main cannon deployed or not?

As for the battle damaged version I would suggest separate pieces that would allow the modeler to build it as such, if possible.

Edited by Heavy Melder
0

Share this post


Link to post
Share on other sites

Actually, the Kamikaze ship wasn't brown, but purple (it was a Meltran vessel.) The reason it looked brown is because I think the top of the hull rusted from exposure to the elements and such. I know because I just re-watched Ep 36 a few times just recently :D

In the Macross movie they had both brown and green as well. So we will have 3 colors to choose from.

0

Share this post


Link to post
Share on other sites

I'm in for one possibly two depending on price. Can I assume that the model would have the ability to be built either with the main cannon deployed or not?

As for the battle damaged version I would suggest separate pieces that would allow the modeler to build it as such, if possible.

Oh yes, main gun will be able to be built open or closed. Battle-damage seemed pretty spread-out over the ship, so I'll likely make it un-damaged and allow modelers to make any damage as per their own interpretations.

0

Share this post


Link to post
Share on other sites

Oh yes, main gun will be able to be built open or closed. Battle-damage seemed pretty spread-out over the ship, so I'll likely make it un-damaged and allow modelers to make any damage as per their own interpretations.

Fair enough.

Any ideas price wise, there abouts? With the gun open/gun closed option, I think I'll have to get two....

0

Share this post


Link to post
Share on other sites

Fair enough.

Any ideas price wise, there abouts? With the gun open/gun closed option, I think I'll have to get two....

No idea yet, there are still quite a few factors to figure out. It's quite a large model though.

0

Share this post


Link to post
Share on other sites

I prefer the factory fresh version. I can alway make damage. It's harder to fix it.

0

Share this post


Link to post
Share on other sites

I prefer the factory fresh version. I can alway make damage. It's harder to fix it.

I agree with this ^ In fact, sometimes damage makes itself even when I'm not going for it :)

0

Share this post


Link to post
Share on other sites

this will be really cool. I want in.

:)

Thor

0

Share this post


Link to post
Share on other sites

Very cool idea. I'm in.

30cm length in 1/5000 scale? Count me in! My (er, your) Baby Scout Ship needs some friends :D

0

Share this post


Link to post
Share on other sites

30cm length in 1/5000 scale? Count me in! My (er, your) Baby Scout Ship needs some friends :D

And this one is the 2nd smallest of the capital ships. After this they get big fast going from 40cm to 60cm and finally 80cm.

0

Share this post


Link to post
Share on other sites

And this one is the 2nd smallest of the capital ships. After this they get big fast going from 40cm to 60cm and finally 80cm.

so rather than space cucumber, gourd or baguette would be the more appropriate technical term :lol:

count me interested. hope a meltrandi counterpart will come someday..

0

Share this post


Link to post
Share on other sites

And this one is the 2nd smallest of the capital ships. After this they get big fast going from 40cm to 60cm and finally 80cm.

Can't wait for the eventual 40cm Thuverl Salan. Oh wait, CAN wait, need another model display case first :p

Also, second the Meltran idea, especially Millia 639's Meltran Gun Destroyer from DYRL :D. Only problem, you couldn't use cucumbers, gourds, or baguettes for those :(

0

Share this post


Link to post
Share on other sites

Captain's Log: today. It begins... ^_^

As per my usual procedure, every project begins with planning and plotting, and this project is no different. While the Quelamitz might look like a really quick, organic and simplistic project, I can assure you that nothing could be further from the truth. Since symmetry is important with regards to a ship like this, it's very important to nail the cross-sections down before starting, and after lots of careful observation, I opted to use modeling board as opposed to clay. This will allow me a greater level of precision and control as well as maintain the 1/5000 scal look established with the Picket Ship.

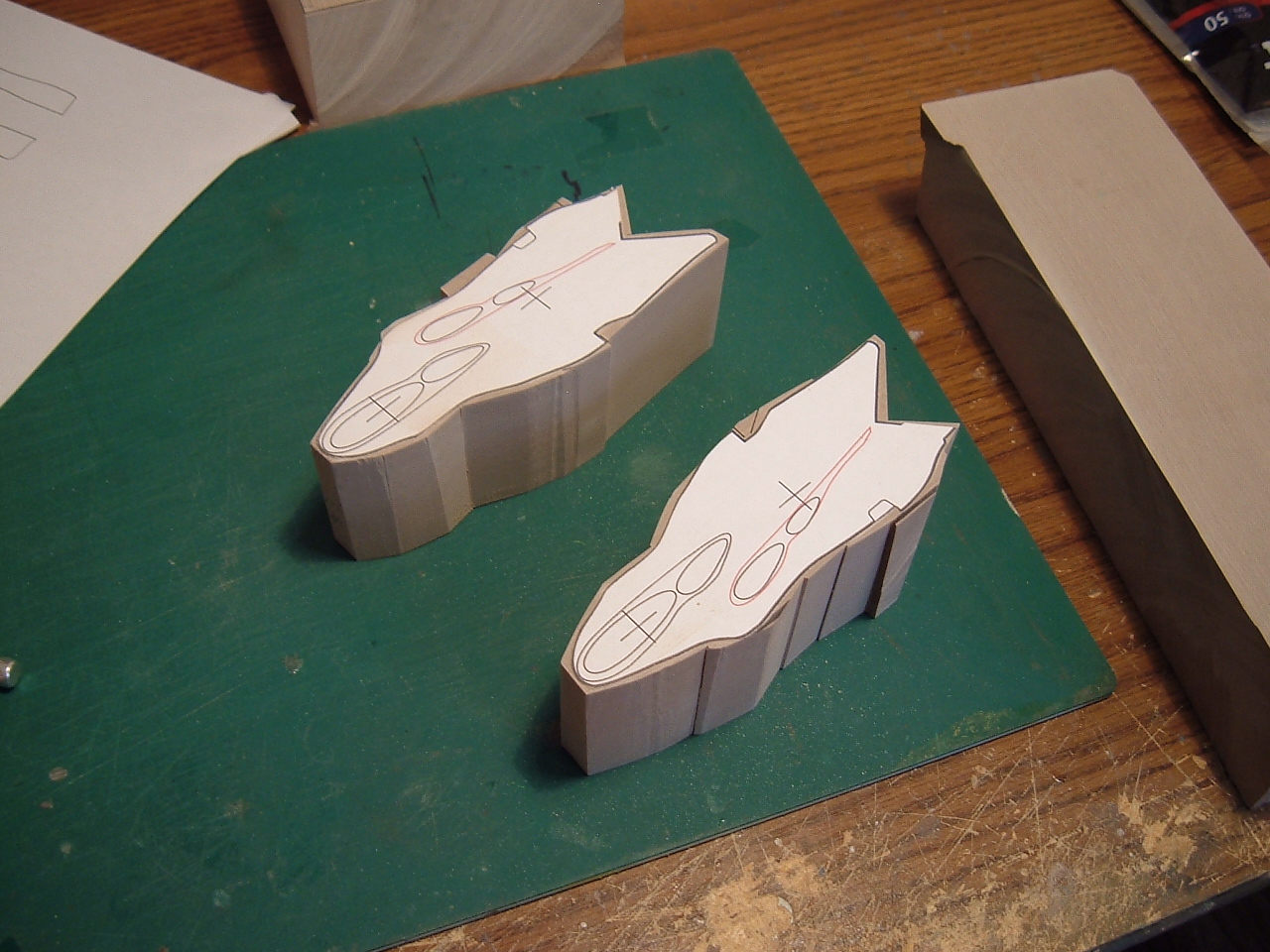

Pic 1: after a few days of designing, the plots are printed and the modeling board is cut into more manageable chunks.

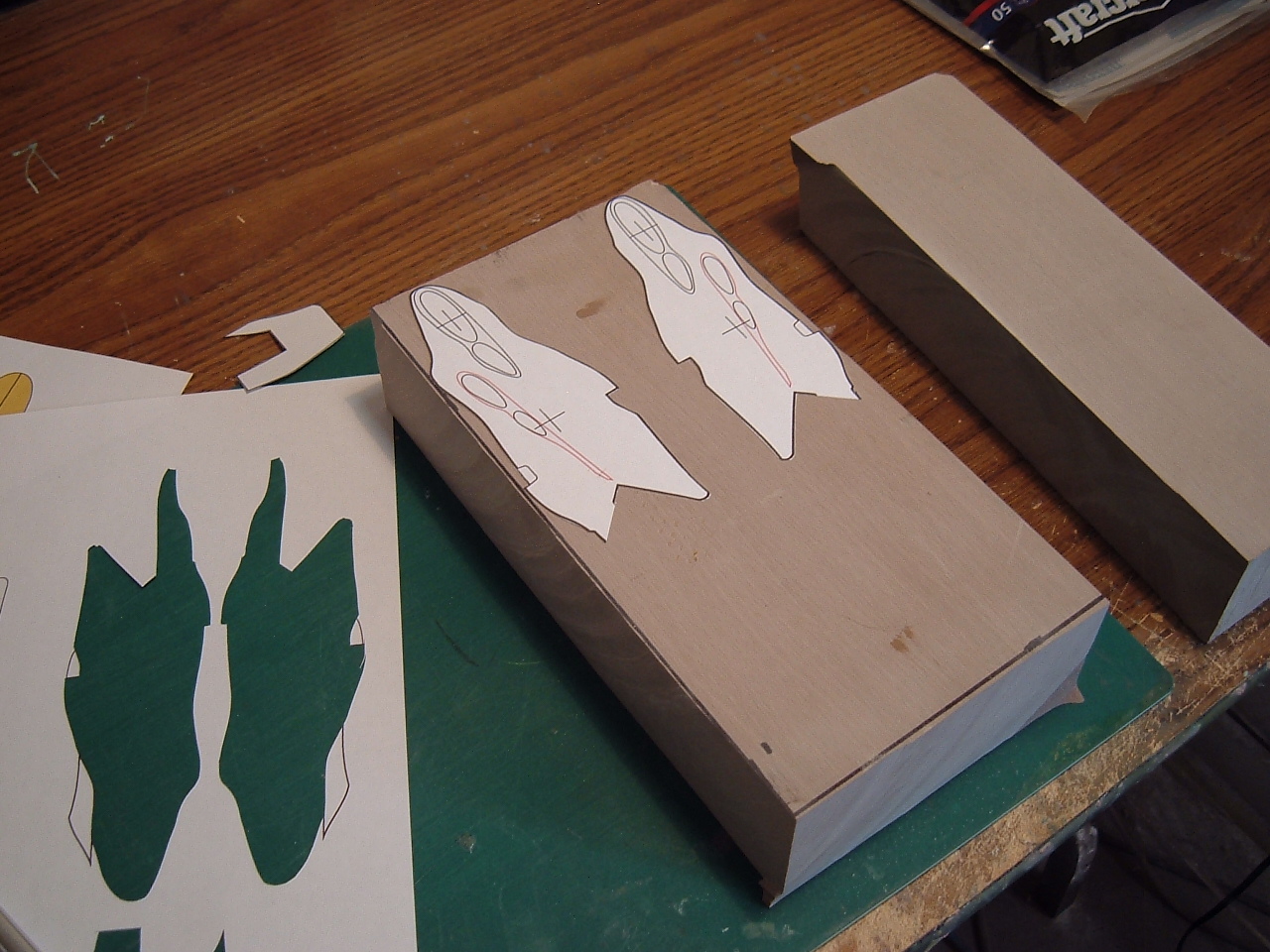

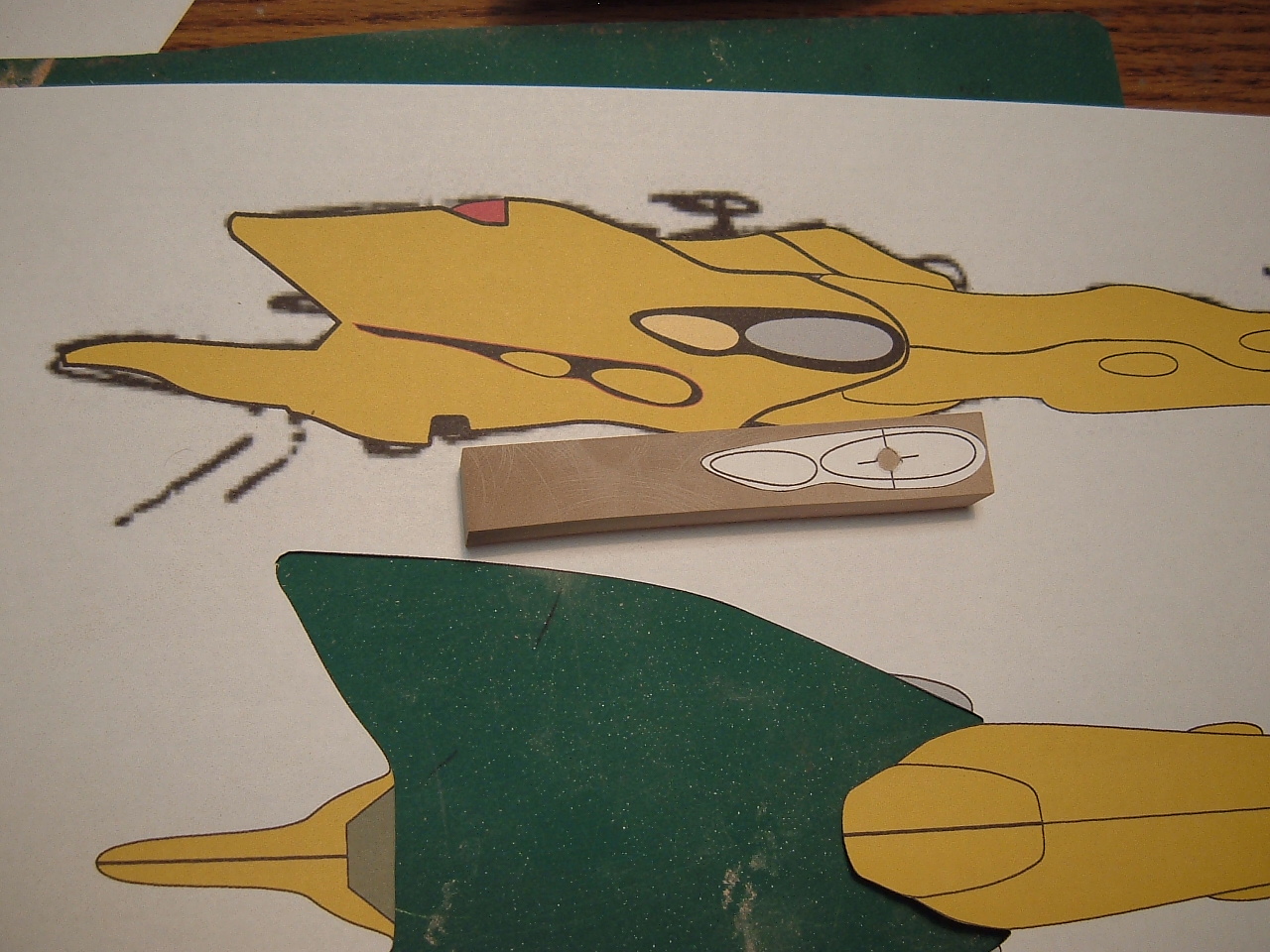

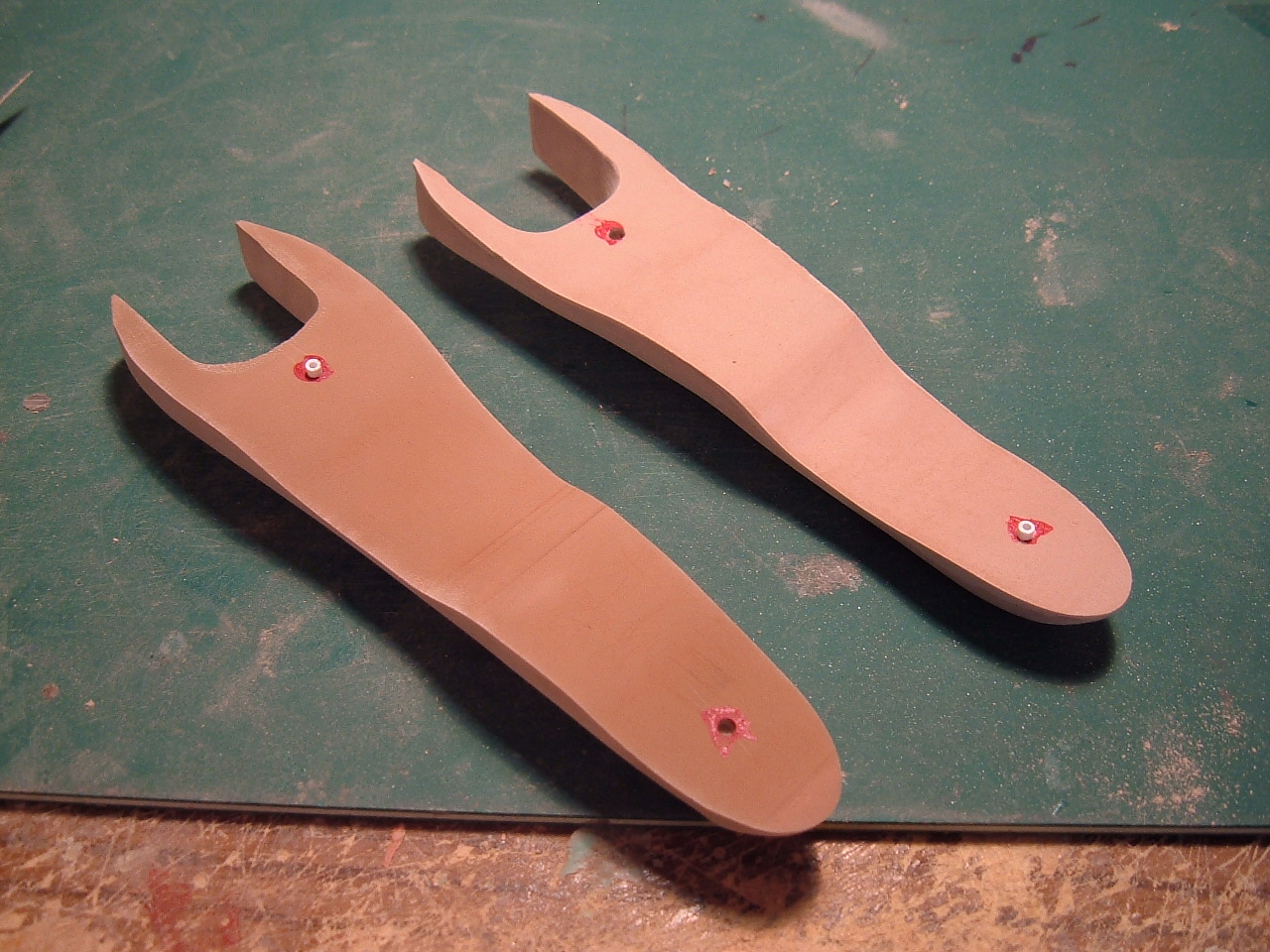

Pic 2: plots are manually cut and glued to the modeling board... Cookie-cutter style.

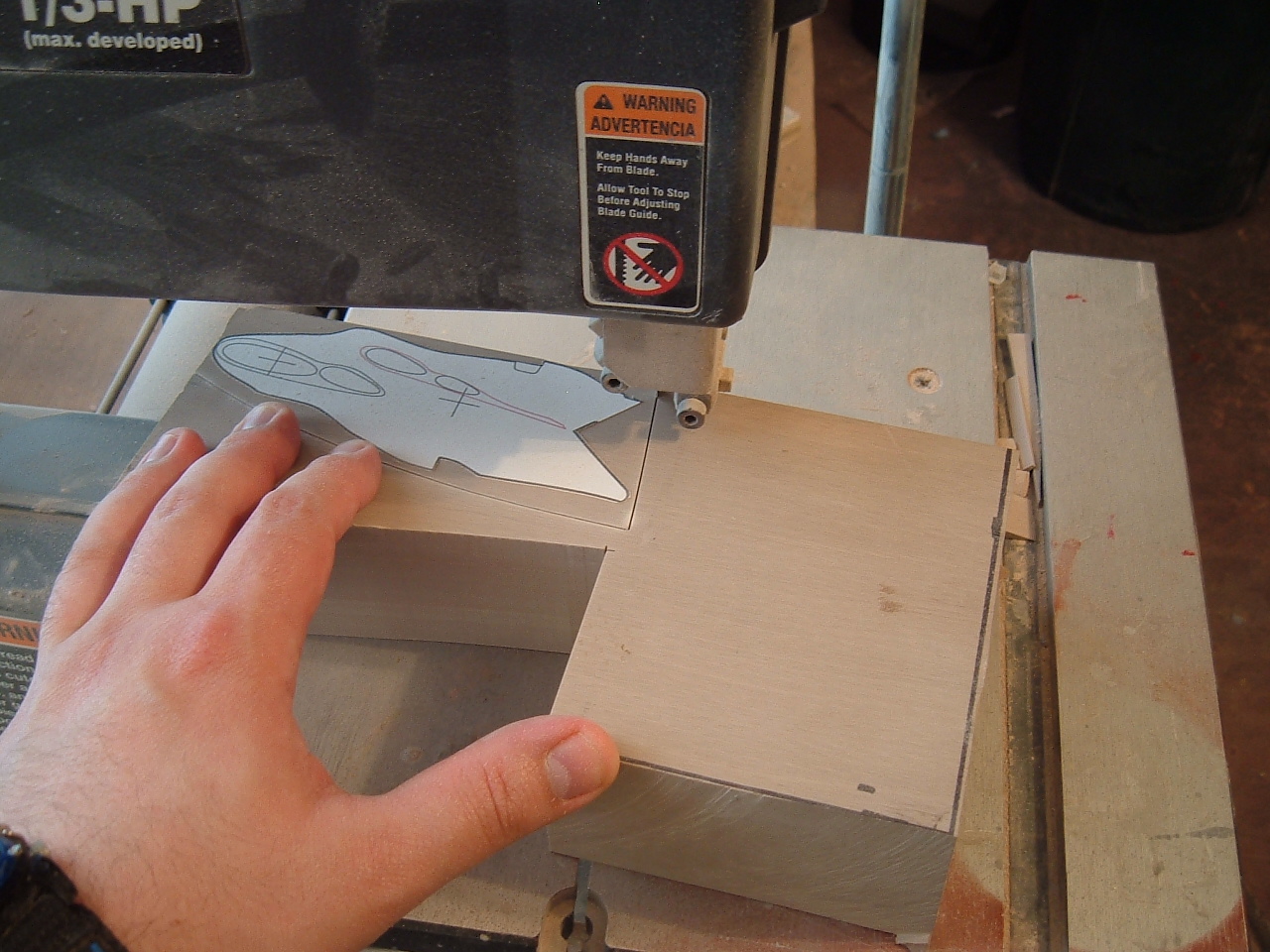

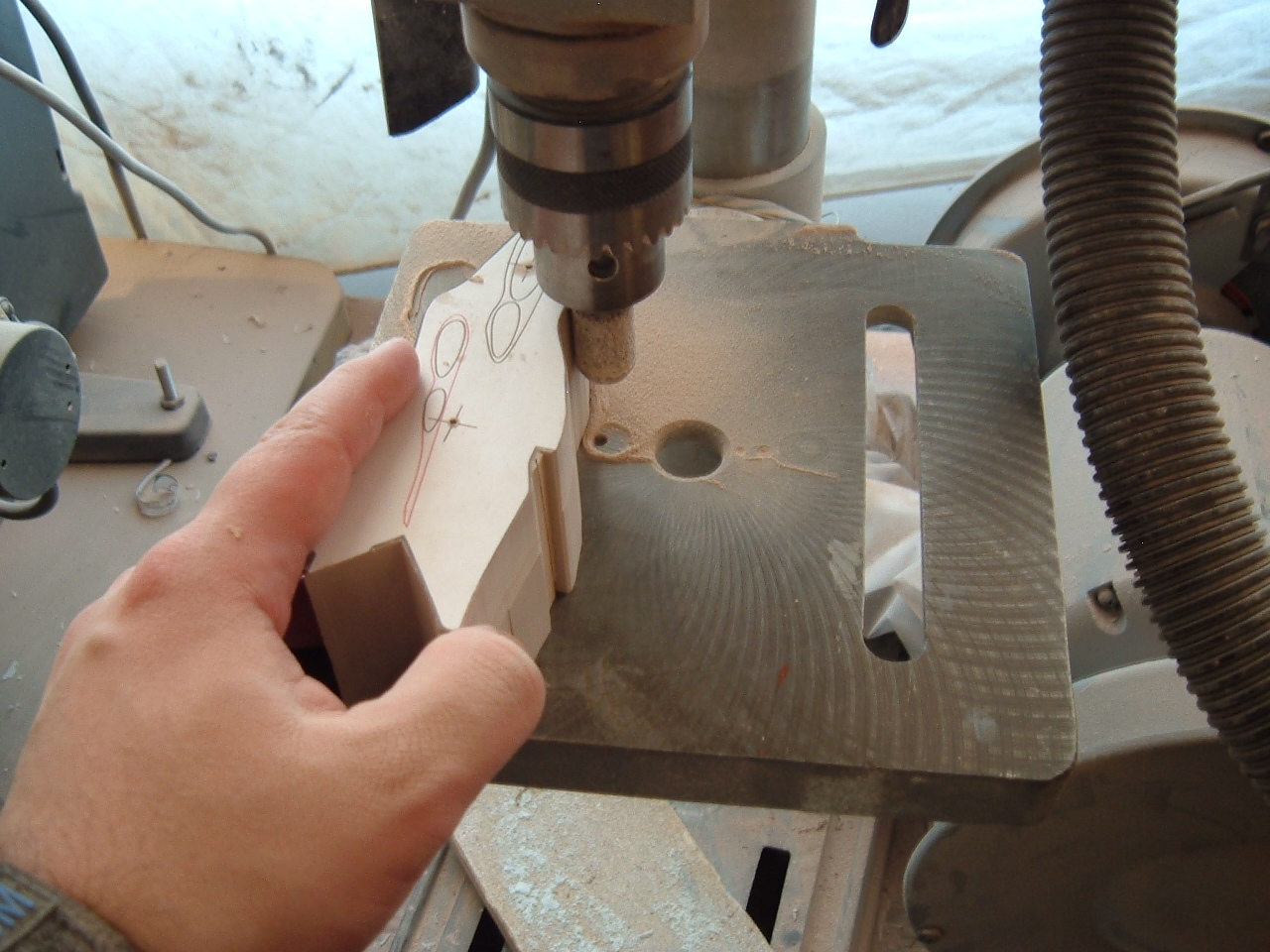

Pic 3: the band saw is used to cut away the big stuff and separate the modules.

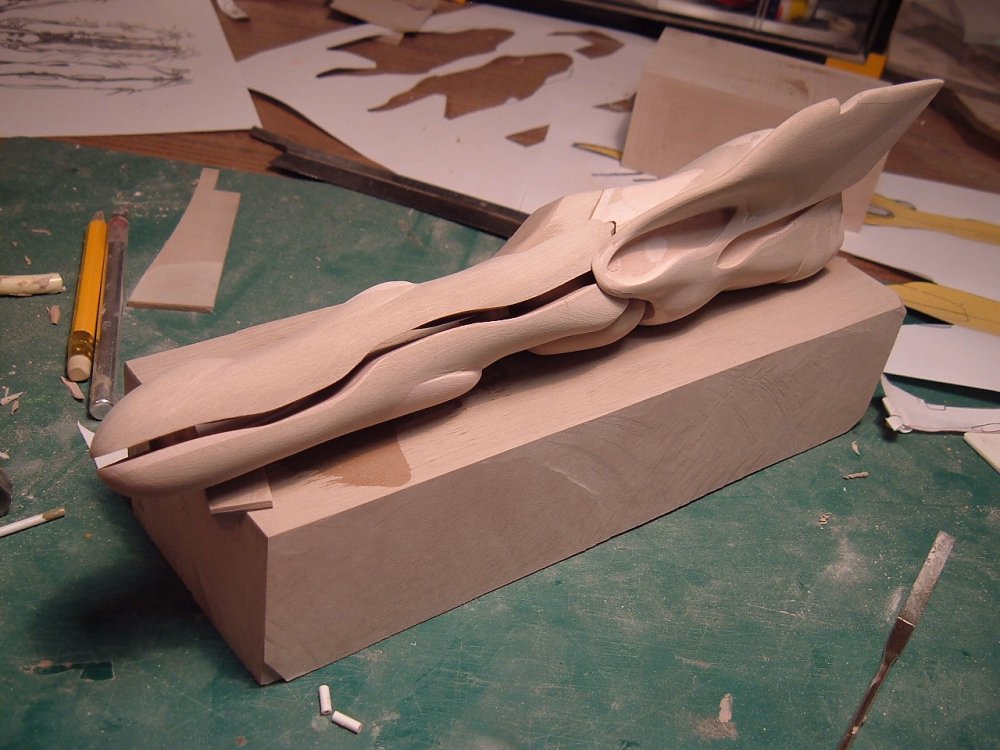

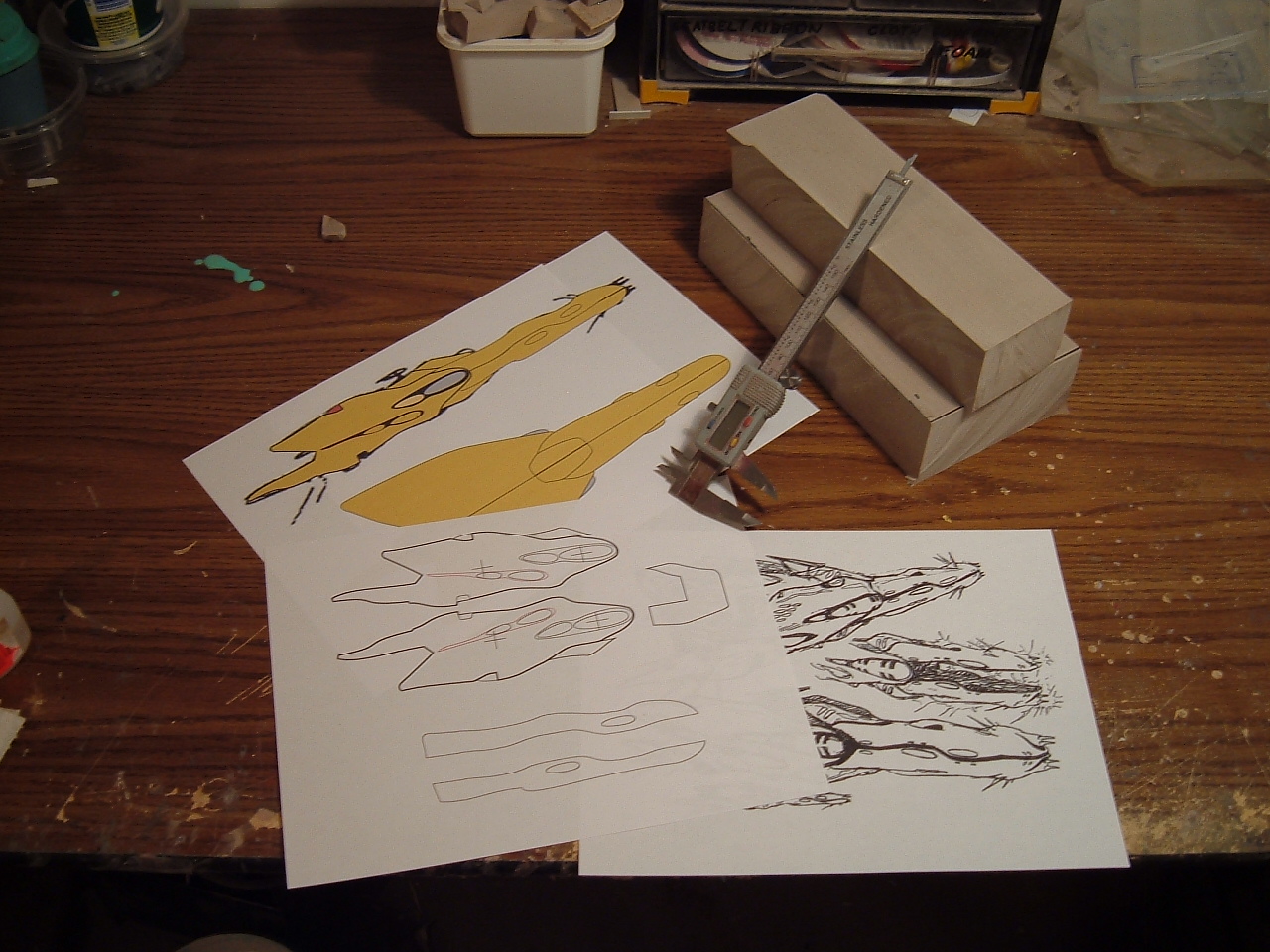

Pic 4: the parts are relatively close-cut and awaiting further refinement. These parts represent the left and right sides of the aft hull: splitting complex parts into halves like this makes it easier to monitor symmetry.





0

Share this post


Link to post
Share on other sites

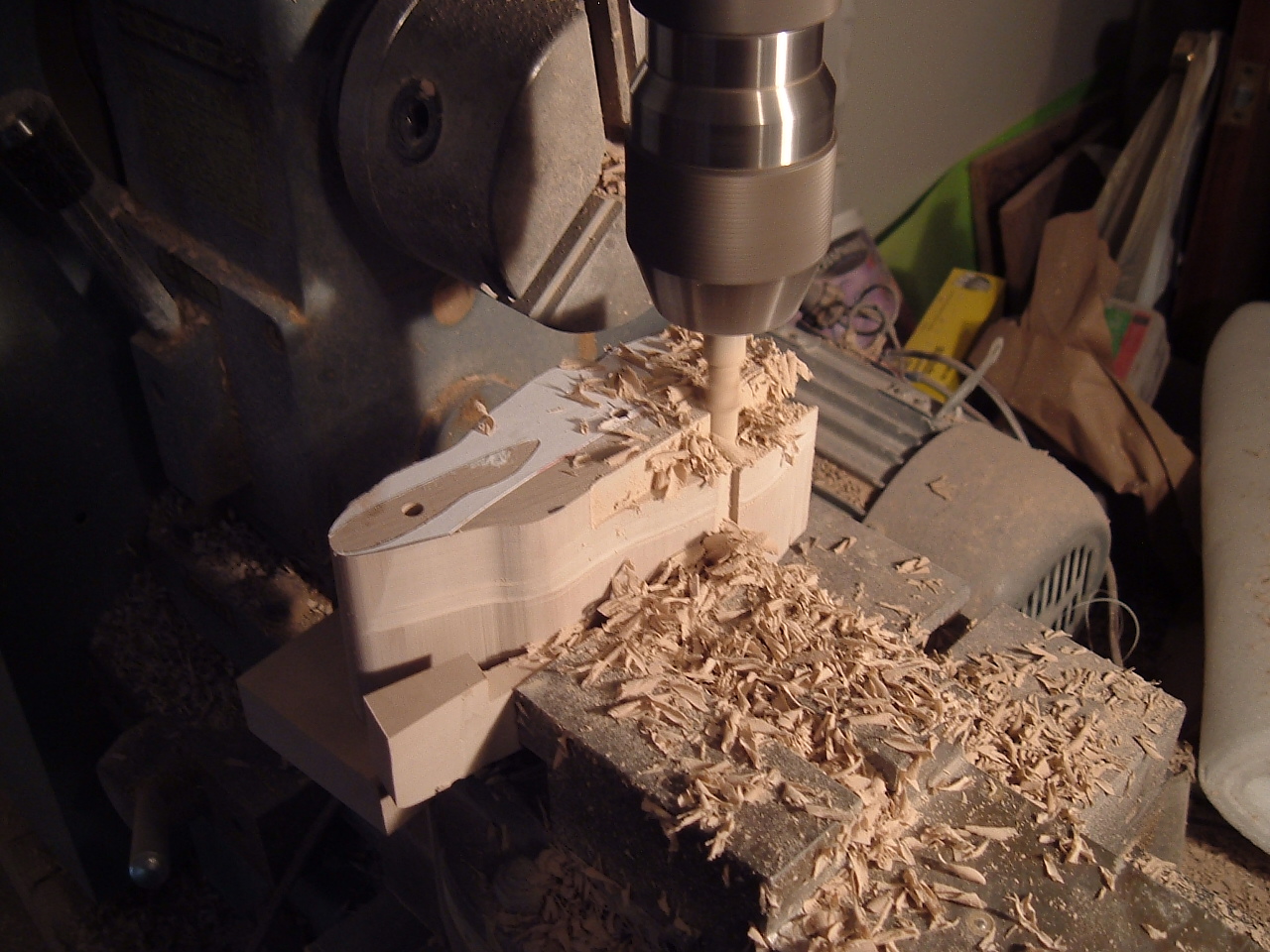

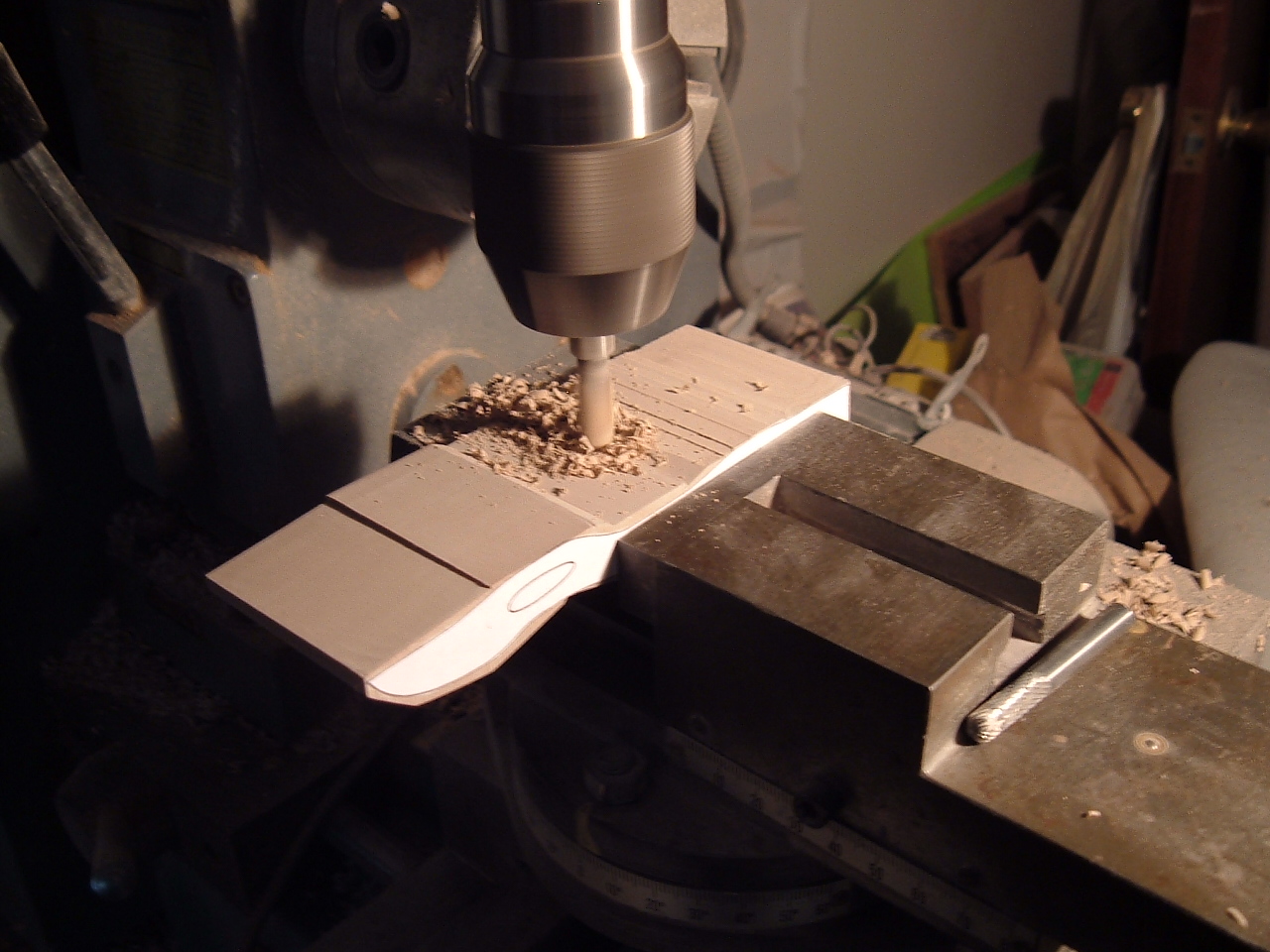

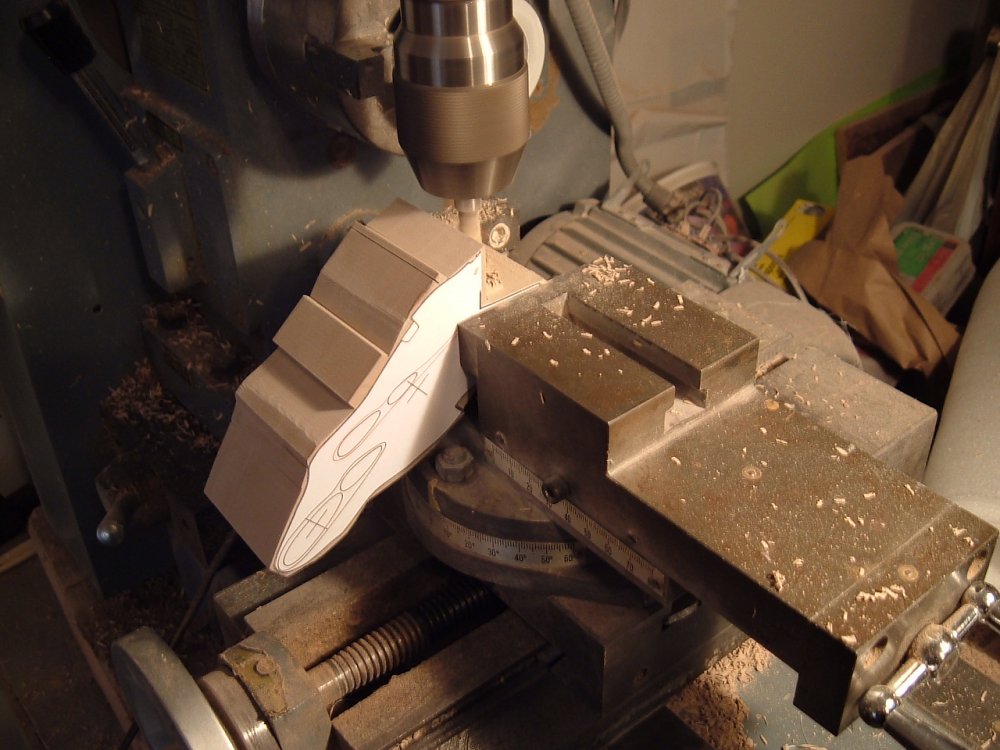

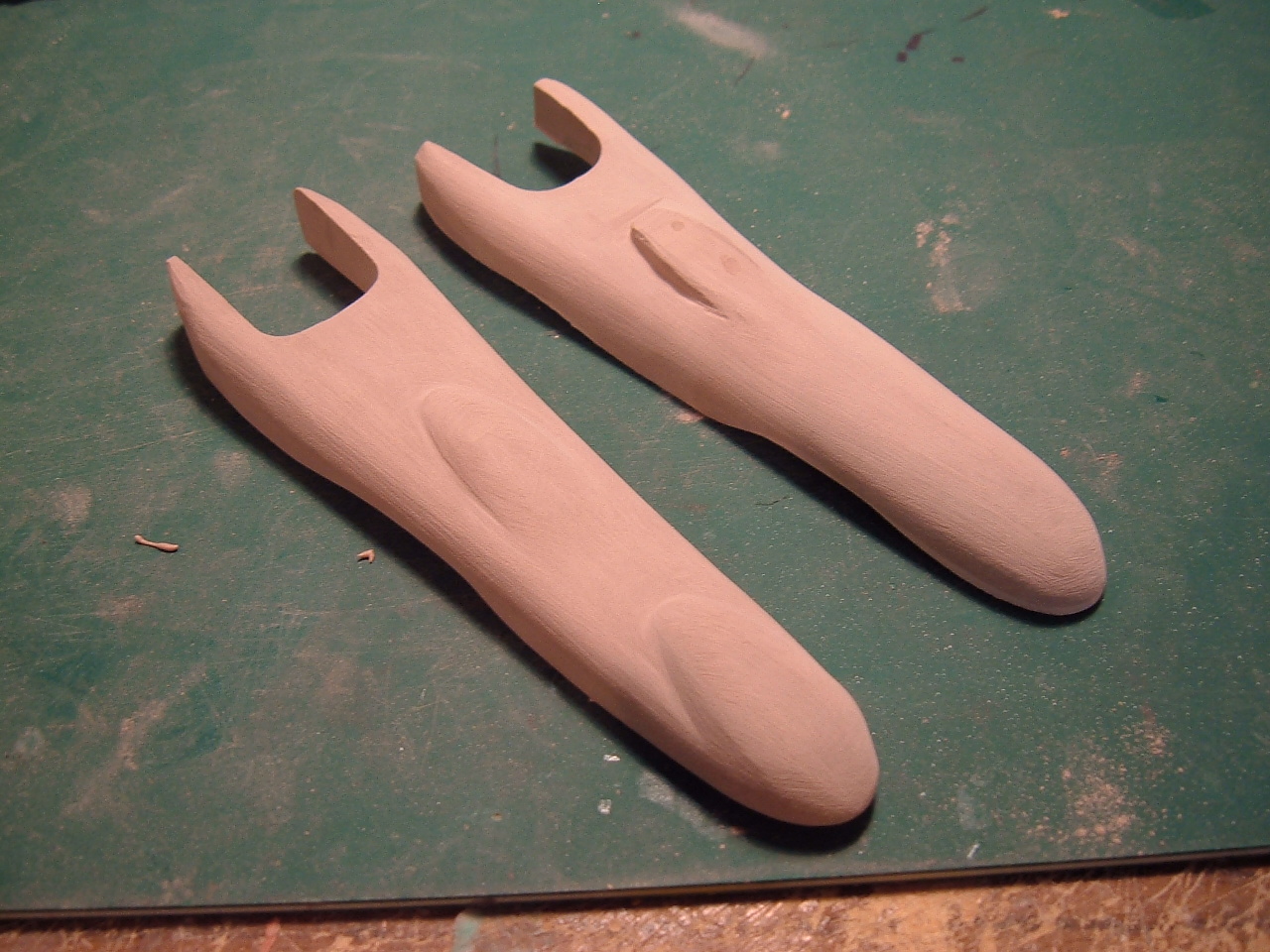

Pic 5: one of the aft hull halves being milled. The organic shape of the part makes the amount of milling challenging, but removing excess material this way is preferable to hand-dremelling as it maintains precise dimensions.

Pic 6: the same part now goes under the grinding stone to remove the last of the excess for the profile dimensions.

Pic 7: one of the forward hulls also being milled. The shape is very organic, so I mill resolution "steps" by eye to remove as much excess as possible. I get to play "CNC" with the computer being my eyes and brain. This was actually a very long step.

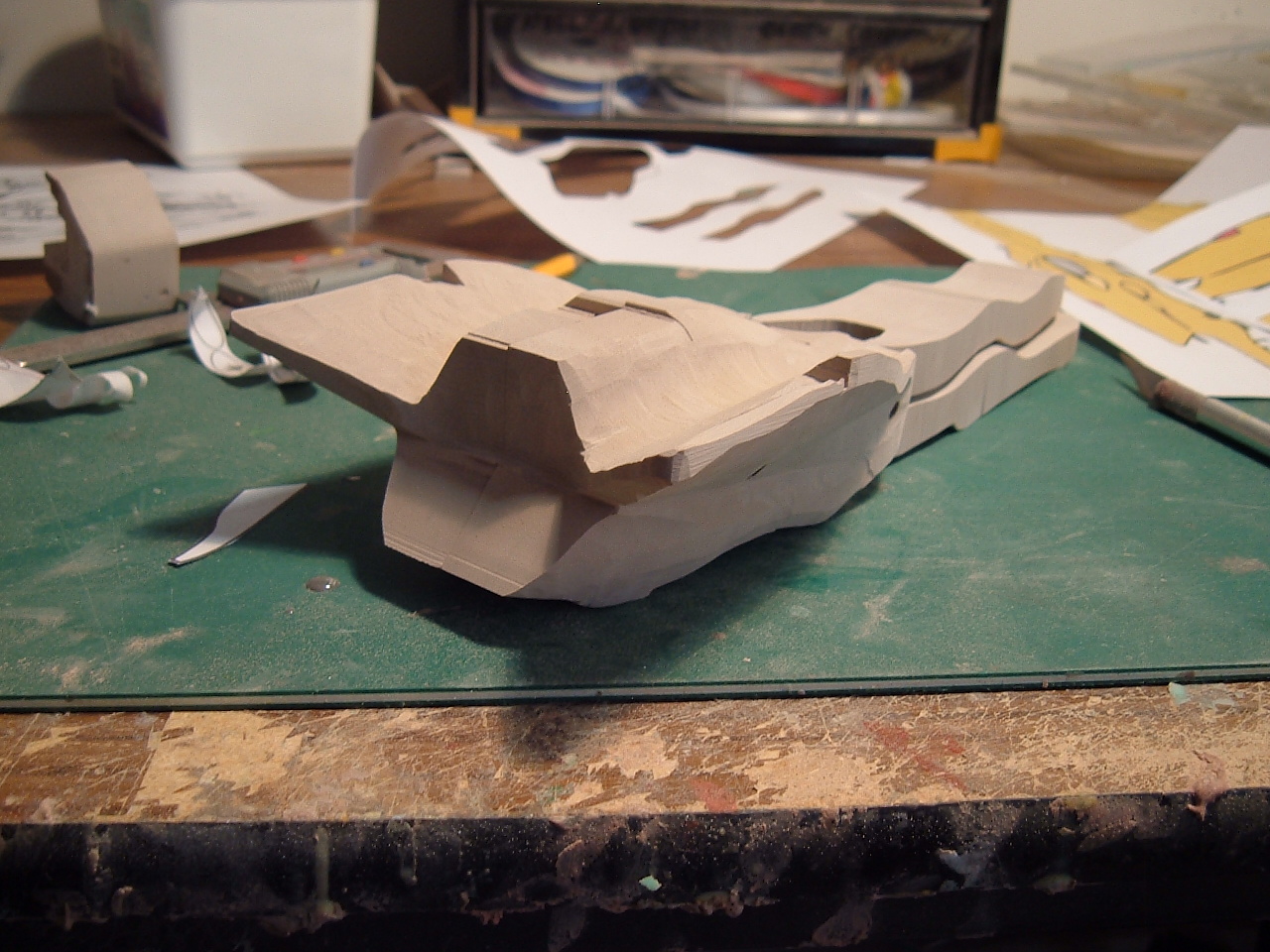

Pic 8: the forward hulls milled and needing to pass under the grinding stone.





0

Share this post


Link to post
Share on other sites

Pic 9: yet more milling. I do as much excess removal on the mill as possible not just for accuracy's sake, but because Dremelling produces copious amounts of very fine dust that gets into everything. Not good!

Pic 11, 12 and 13: well now we're getting somewhere! Bare in mind that this is the result of about four days' worth of chopping, but it already has a decent profile. As you can see, I have already started with the Dremeling to start giving the hull that neat organic look. The hard stuff is yet to come, but will also be the most gratifying. Stay tuned!





0

Share this post


Link to post
Share on other sites

Damm, cap ! You're really fast ! But i ( and a lot of our friends, i believe ) have a little question to you: who much $$$$$ :rolleyes:

0

Share this post


Link to post
Share on other sites

Damm, cap ! You're really fast ! But i ( and a lot of our friends, i believe ) have a little question to you: who much $$$$$ :rolleyes:

BILLLIONSSSS!!!! :lol:

Just kidding. Honestly, I have no idea, but likely over $100. It's quite a large ship and thusly, will require lots of resin.

0

Share this post


Link to post
Share on other sites

I'm confused, I thought Meltran were only from the DYRL movie. So was this design in both the TV series and DYRL movie? one in green the other purple?

0

Share this post


Link to post
Share on other sites

I'm confused, I thought Meltran were only from the DYRL movie. So was this design in both the TV series and DYRL movie? one in green the other purple?

The ship is in both the DYRL and the TV series. In the DYRL it was on the Zentran side. You can see them in action during the battle between the Zentran and Meltran forces. In the TV series it can be seen in episode 27 when Earth is attacked by the Main Fleet. They are the ships doing the planetary bombardment and in the final episode, 36, when it does the suicide run.

0

Share this post


Link to post
Share on other sites

BILLLIONSSSS!!!! :lol:

Just kidding. Honestly, I have no idea, but likely over $100. It's quite a large ship and thusly, will require lots of resin.

I don't understand why I love and hate you so much at the same time. The skills are unquestionable, the stuff you make is always, without fail, awesome. But my wallet keeps saying "That guy is the devil, you need to ignore him and all of the foul temptations that he dangles in front of you.

I think that stupid wallet is sitting next to my bed brainwashing me in my sleep. You know what, screw him. Cap'n wins, I want mooooooooooooore!!!!

Lookin good. I'm really happy that you've come out as a zentran/meltran design fan and are excited about doing their ships. I love watching them come together and can't wait to get my copy(ies)!

0

Share this post


Link to post
Share on other sites

Go Captain! I need to throw to the trash all my old Arii gunship model kits, so go ahead with this collection!! happy.gif

0

Share this post


Link to post
Share on other sites

Cap!!! I'M IN!!! only just noticed this mate, 1/5000 is perfect man, thankyou!

I love it, the Main cannons can separate, genius. Dream come true for us 1/5000 SDF-1 Wave owners! :)

Ever thought of doing DYRL? version later down the track?

What are your plans for this scale Cap? Kamjins?? :o

Edited by ruskiiVFaussie
0

Share this post


Link to post
Share on other sites

Captain's Log: Monday, September 13th.

Hi everyone. Please forgive my tardiness with this latest update, it seems that my camera developed a serious malfunction last week, which disrupted the usual flow of things. Alas, that is now rectified, so on to business as usual!

Pic 1: while I spend a lot of time showing the master patterns of my works in various stages of completion, I thought that it might be interesting to focus on some of the simpler but critical tools that I use in the shaping of parts. Despite what you might think, much of the work I do does not involve the mill or the lathe; those are merely to accentuate the manual labor that goes into making a given model.

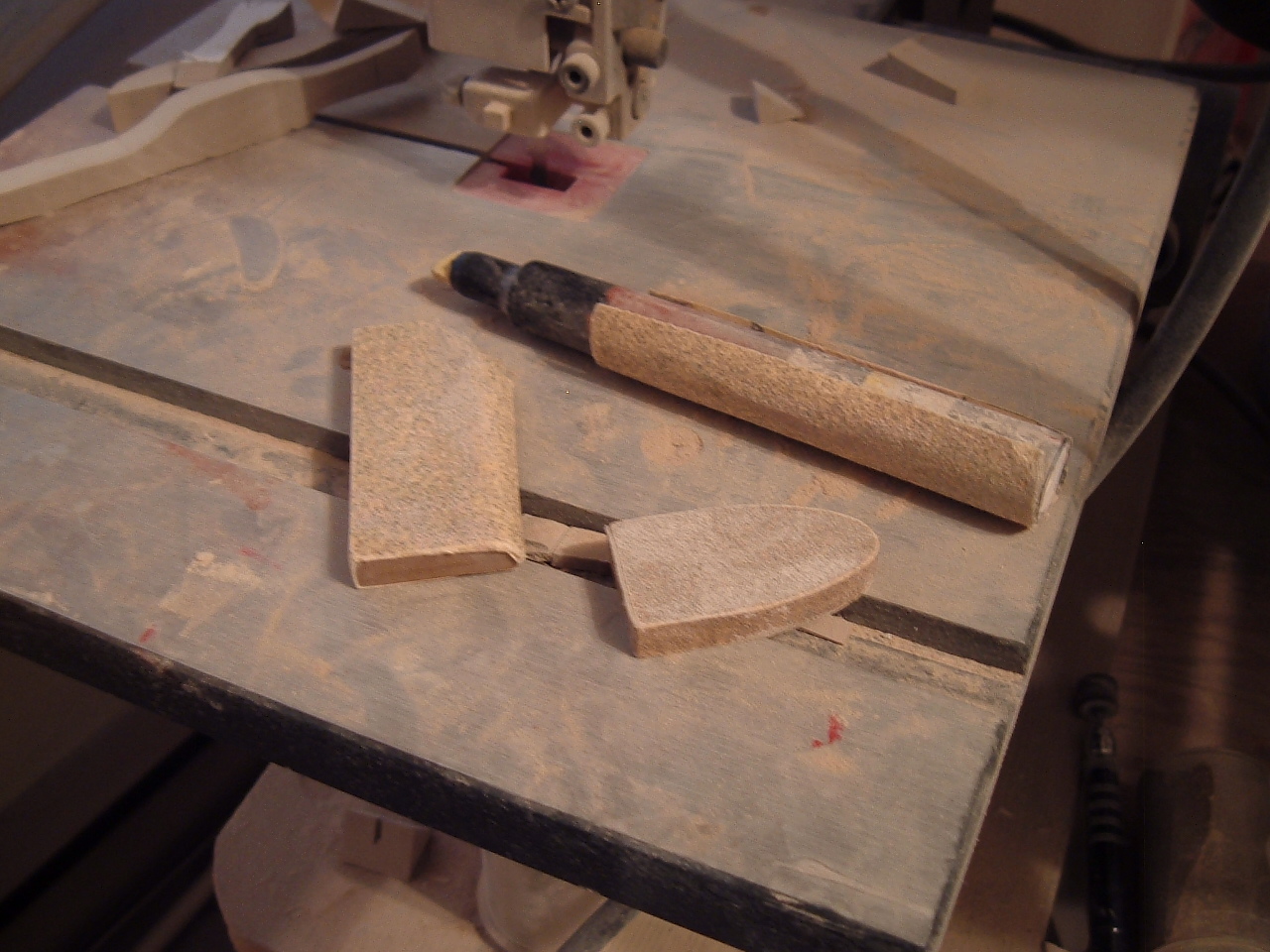

The Dremel and sanding blocks are really the "meat and potatoes" of the operation, and as such, I have quite a variety of oddly shaped blocks and sanding shapes which I rely on. Many are themselves made of modelling board, but also sometimes made from more common, household items like a marker (but never again, because those markers are now over 5 bucks each at the art store--OUCH!!) I use spray photo adhesive to bond heavy grit sandpaper to the shapes for sanding. When they wear out, a bit of lighter fluid is used to remove the worn sandpaper without damaging the block. Old-Earth technology, but it works!

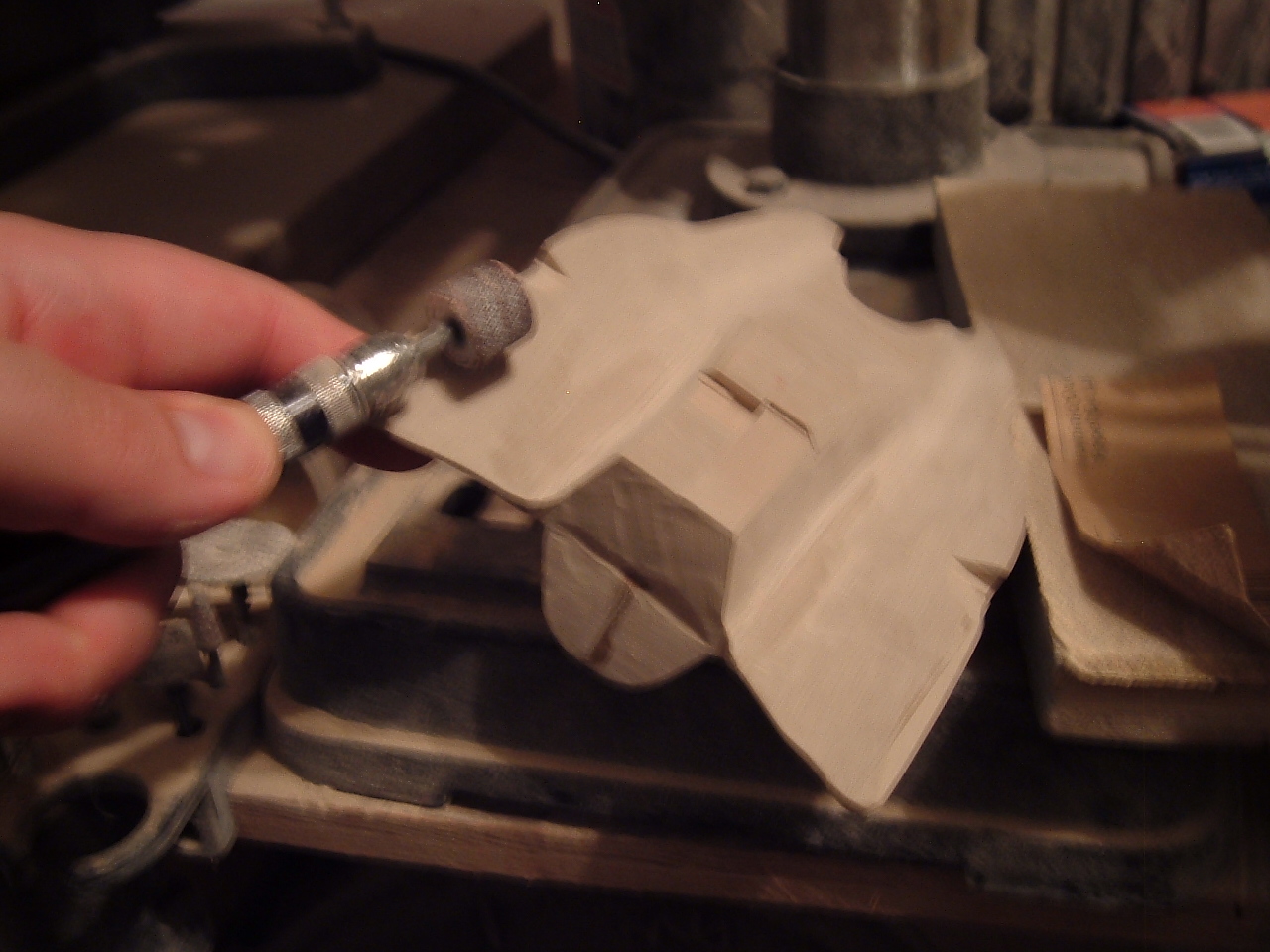

Pic 2: a (obviously) staged pic of me pretending to Dremel the aft hull of the ship. For an organic ship like this, I generally go slower, because I want to keep the ship symmetrical, and also, it takes just a fraction of a second to remove too much material, and easily 5-6 as much time is needed to repair it.

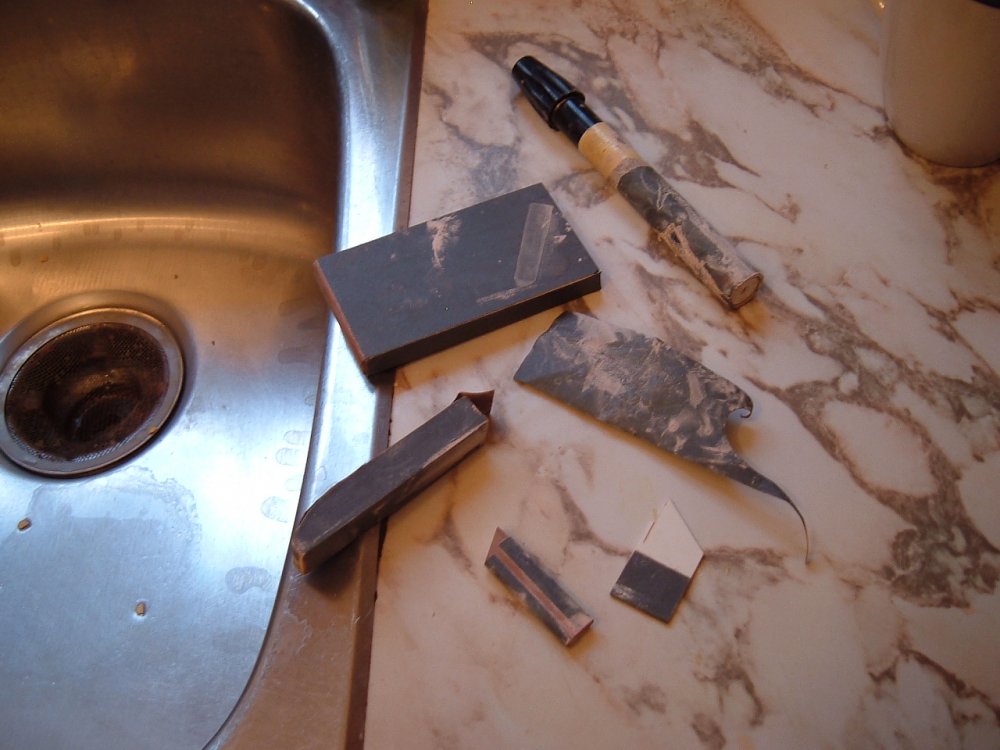

Pic 3: similar sanding blocks and forms are used for wet-sanding; I generally do this under the kitchen tap, and using a little bit of dish soap to keep the sandpaper from clogging.

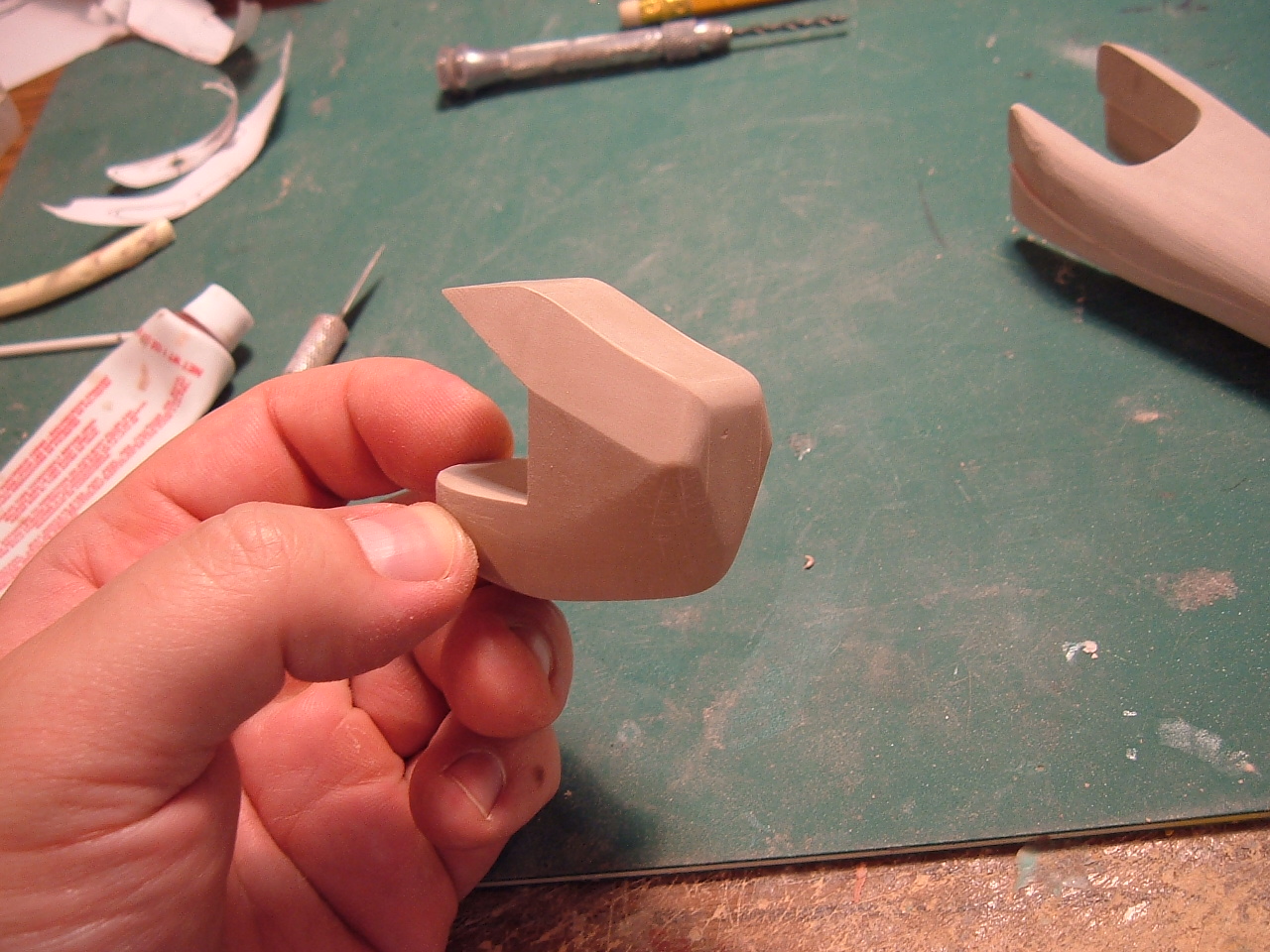

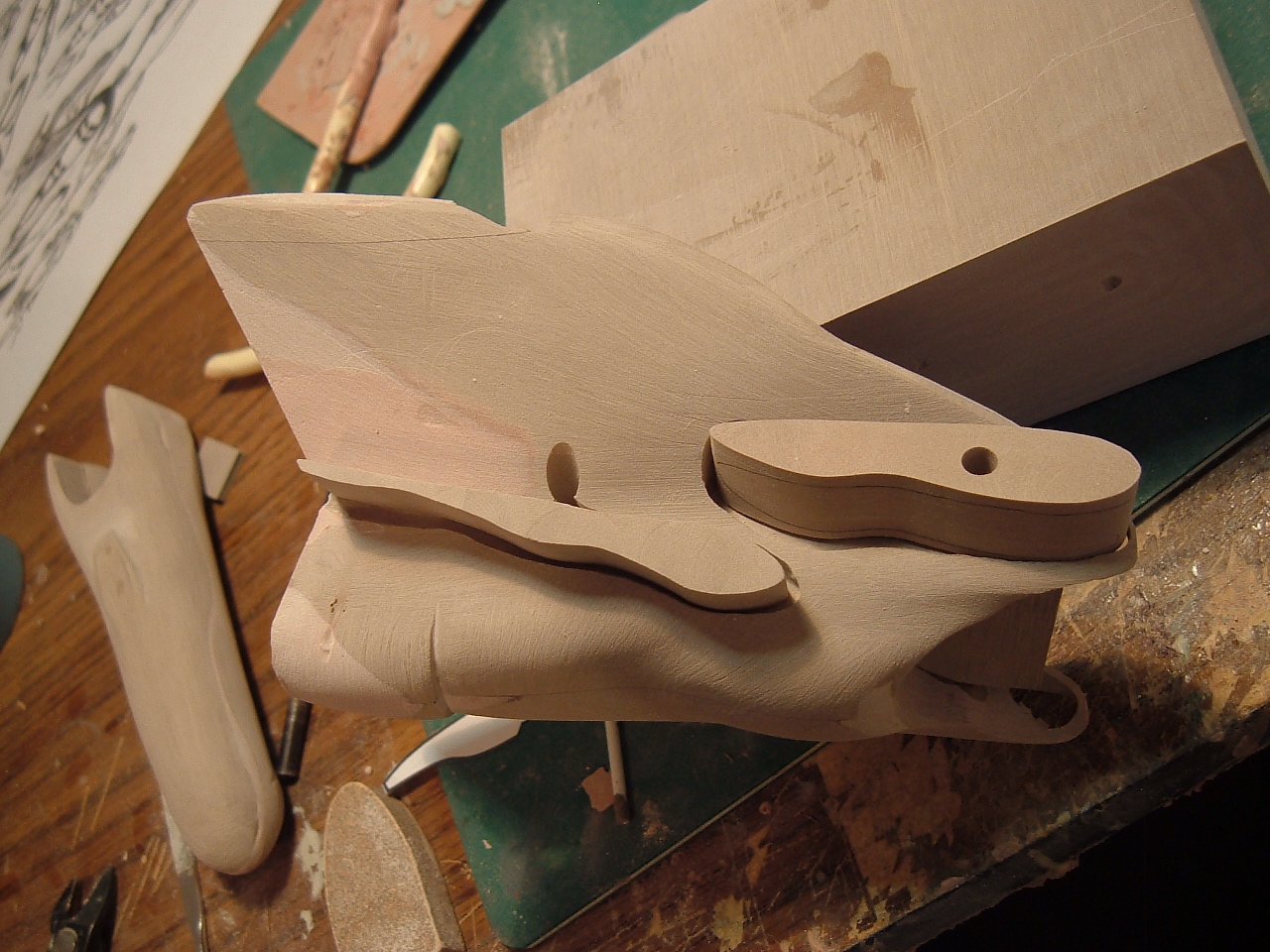

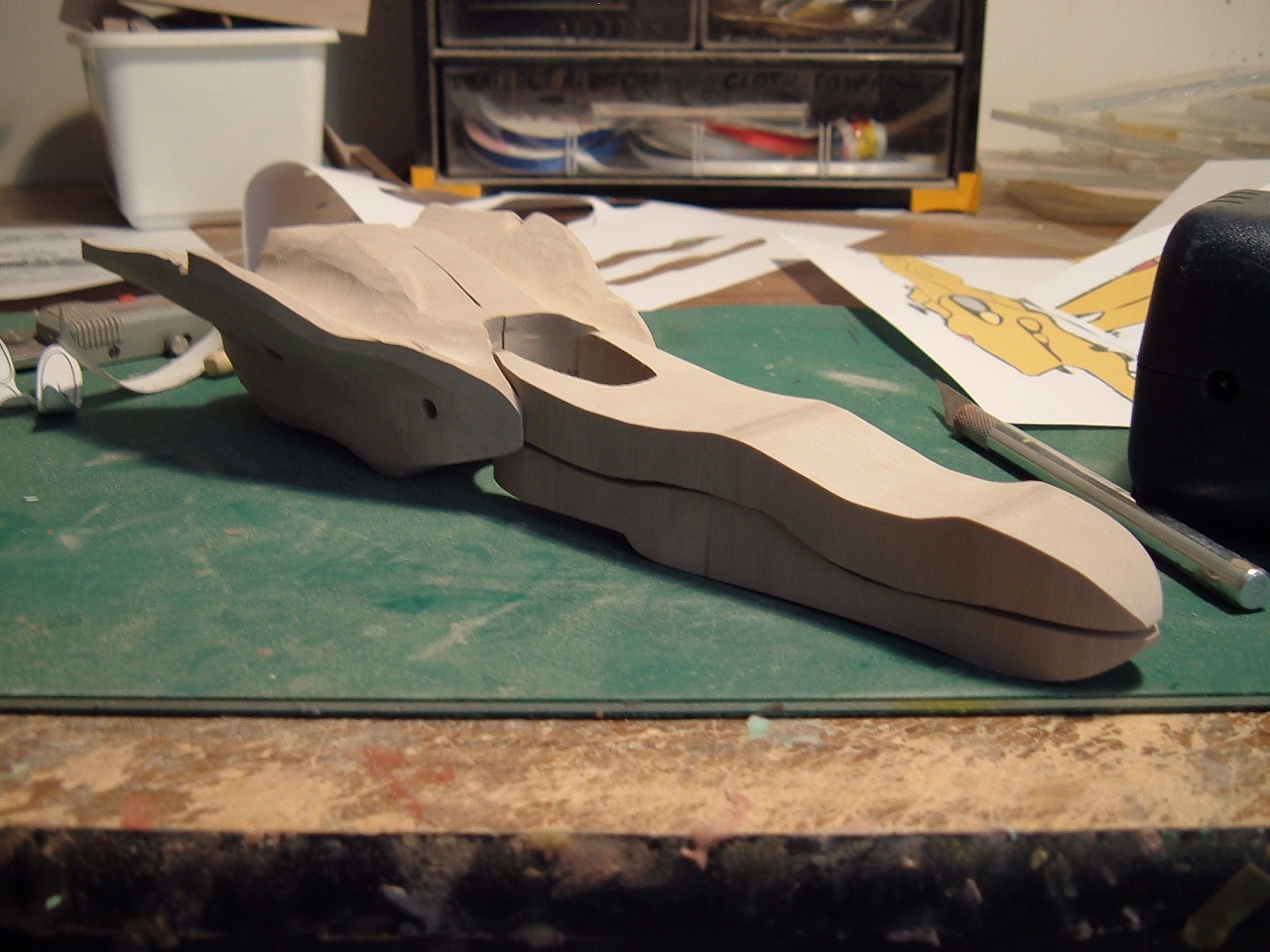

Pic 4: this particular piece is/will be the "heart" of the ship. It's where I imagine the bridge would be, and serves to link the forward hull/gun halves and the aft hull. Special care was taken to make sure all the dimensions followed my diagrams.

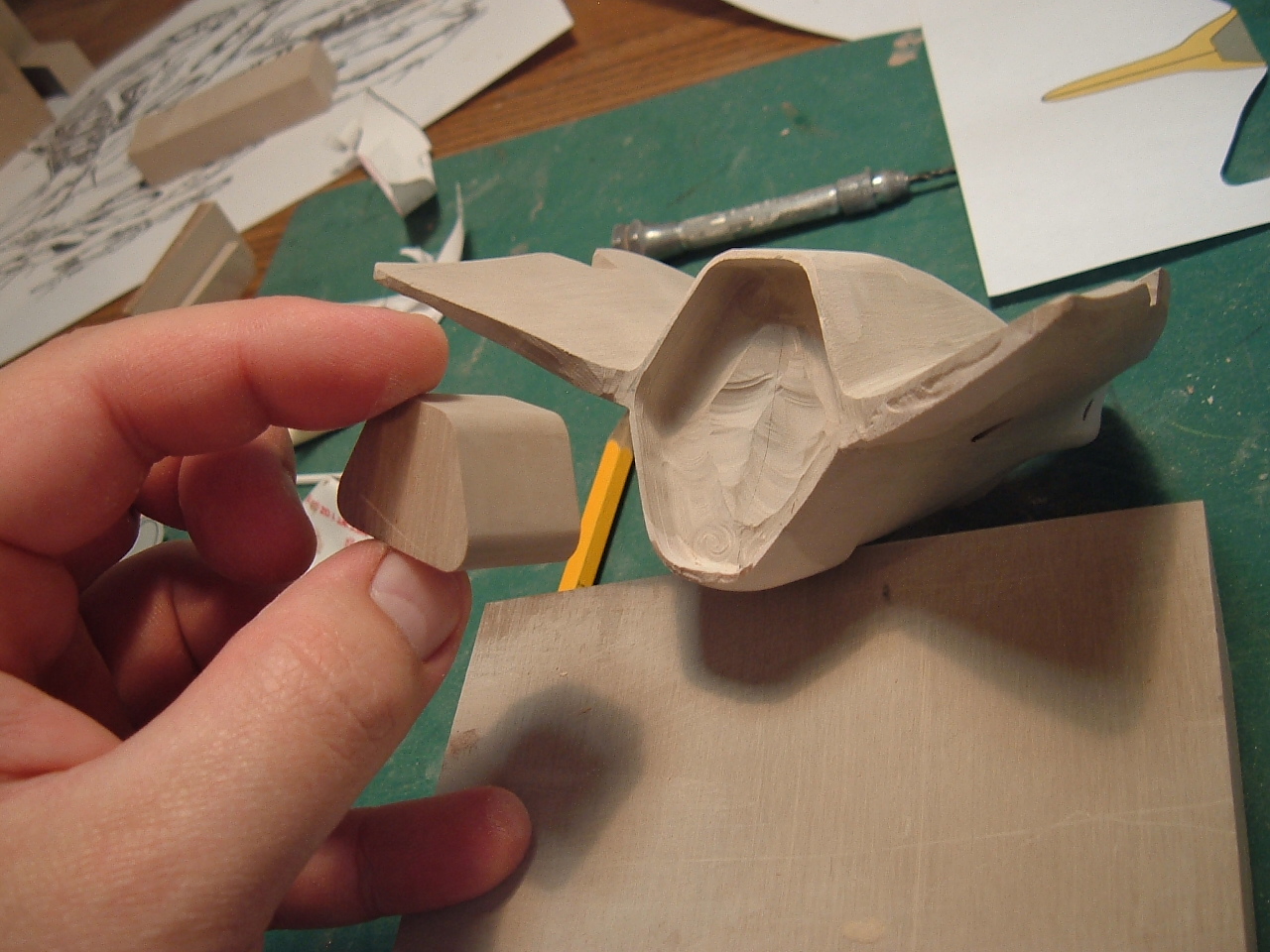

Pic 5: here I will be producing a buck with which I will "imprint" the shape of the ship's "eye socket" into the hull. By making one master with two usable sides, I ensure that the organic curvatures will be identical left and right.

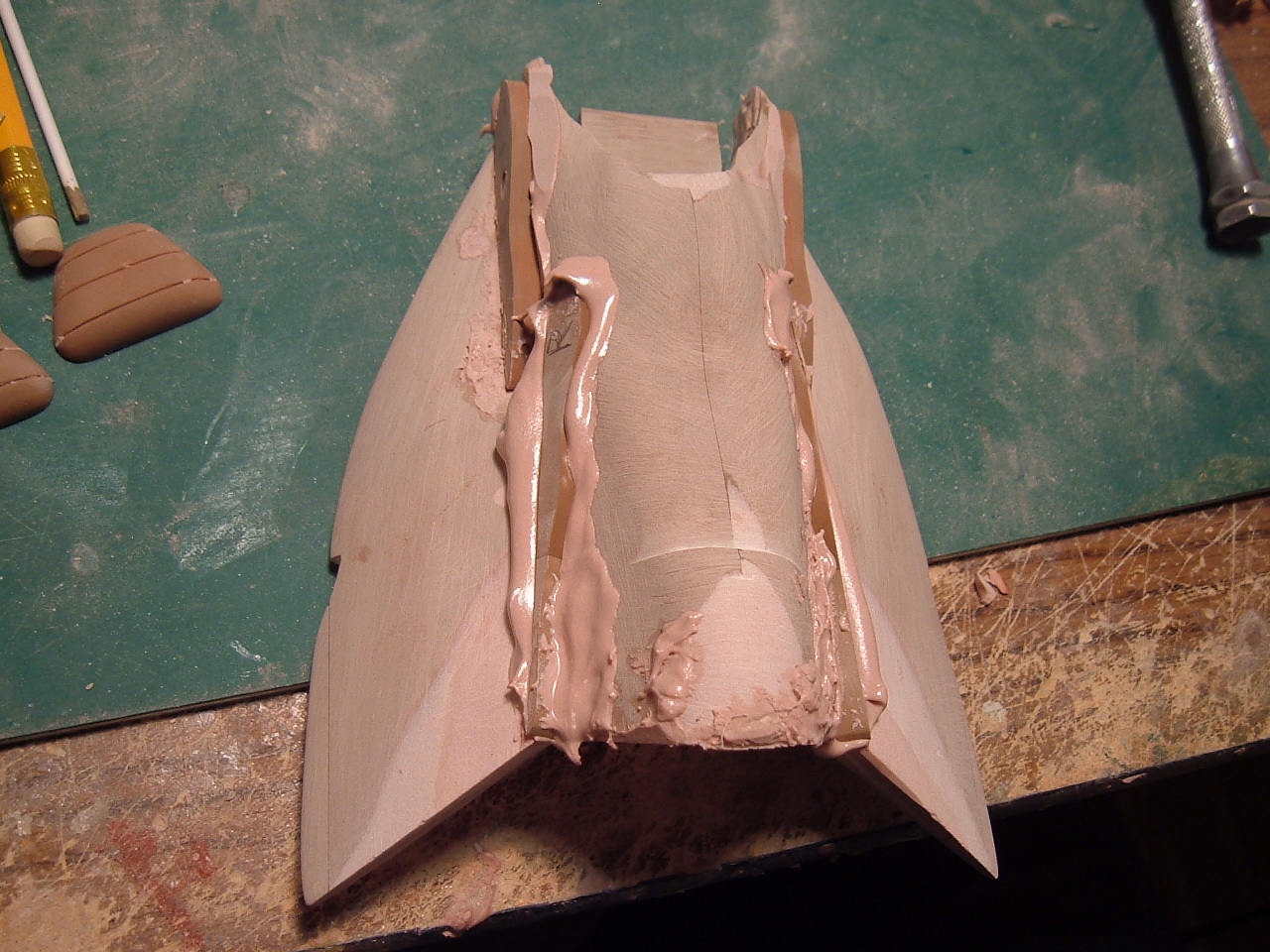

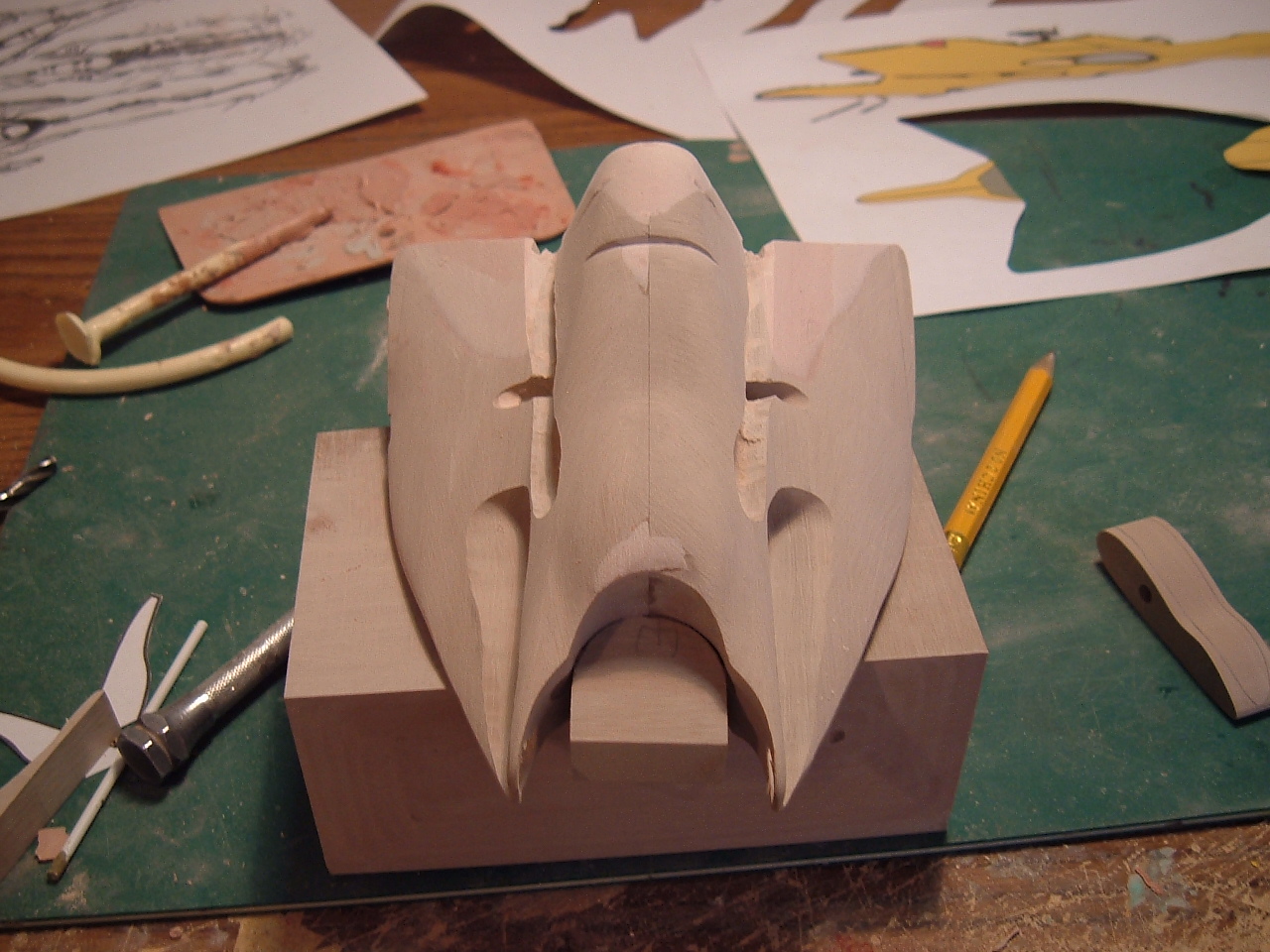

Pic 6: the "bridge" module again. The shapes were a bit tricky due to how it appears in the line-art on top (more squarish) and the bottom, which looks almost egg-like. Still-frames of episode 36 were useful in getting these details, and was also helpful in determining the overall shape of the ship in Plan view.

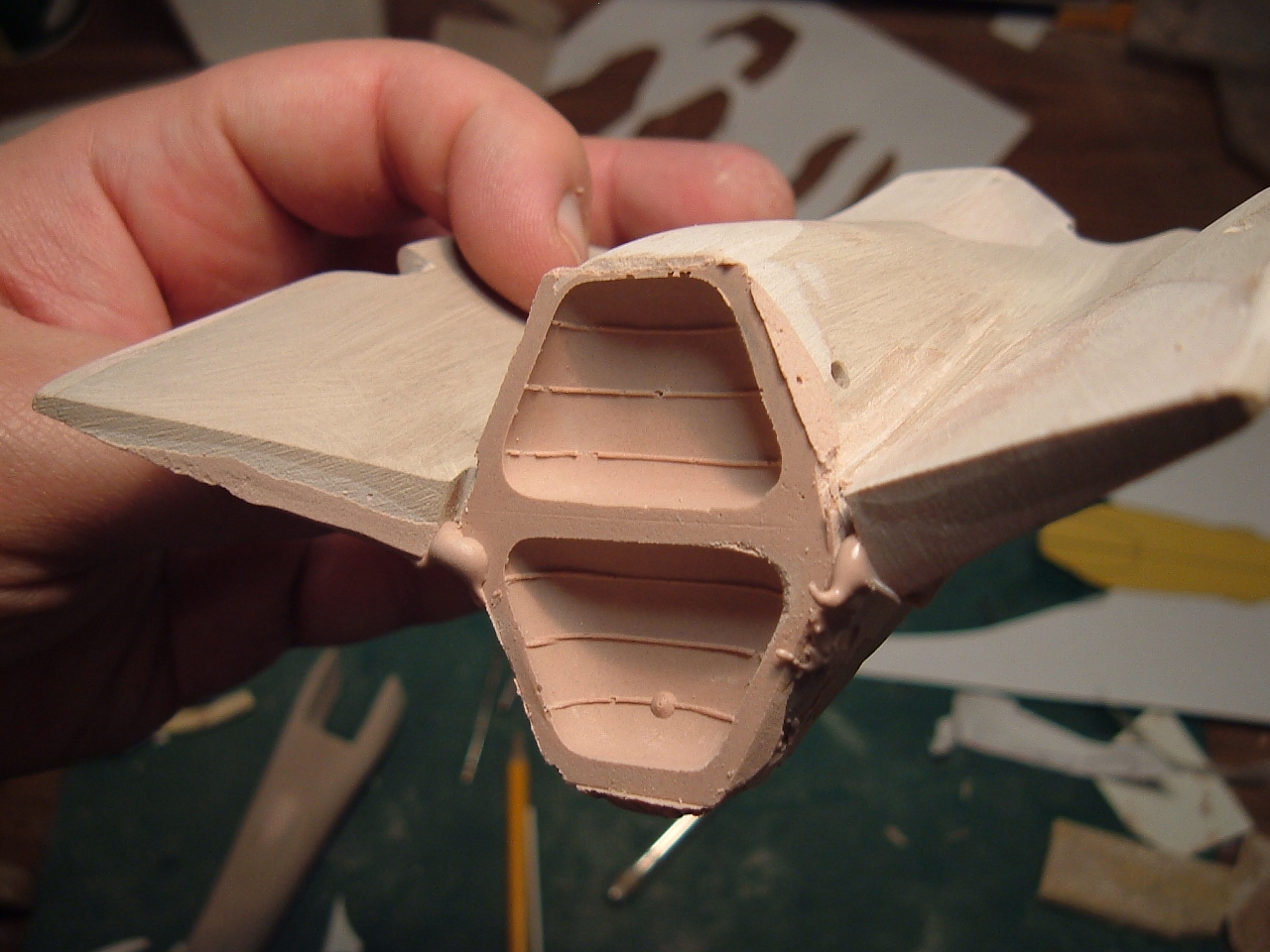

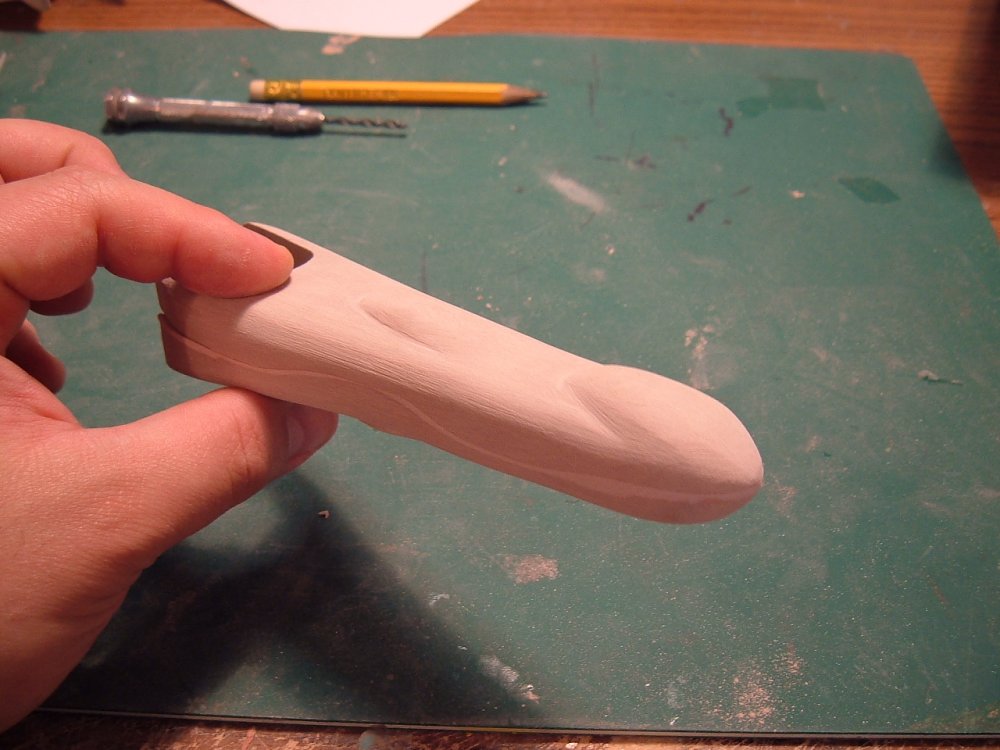

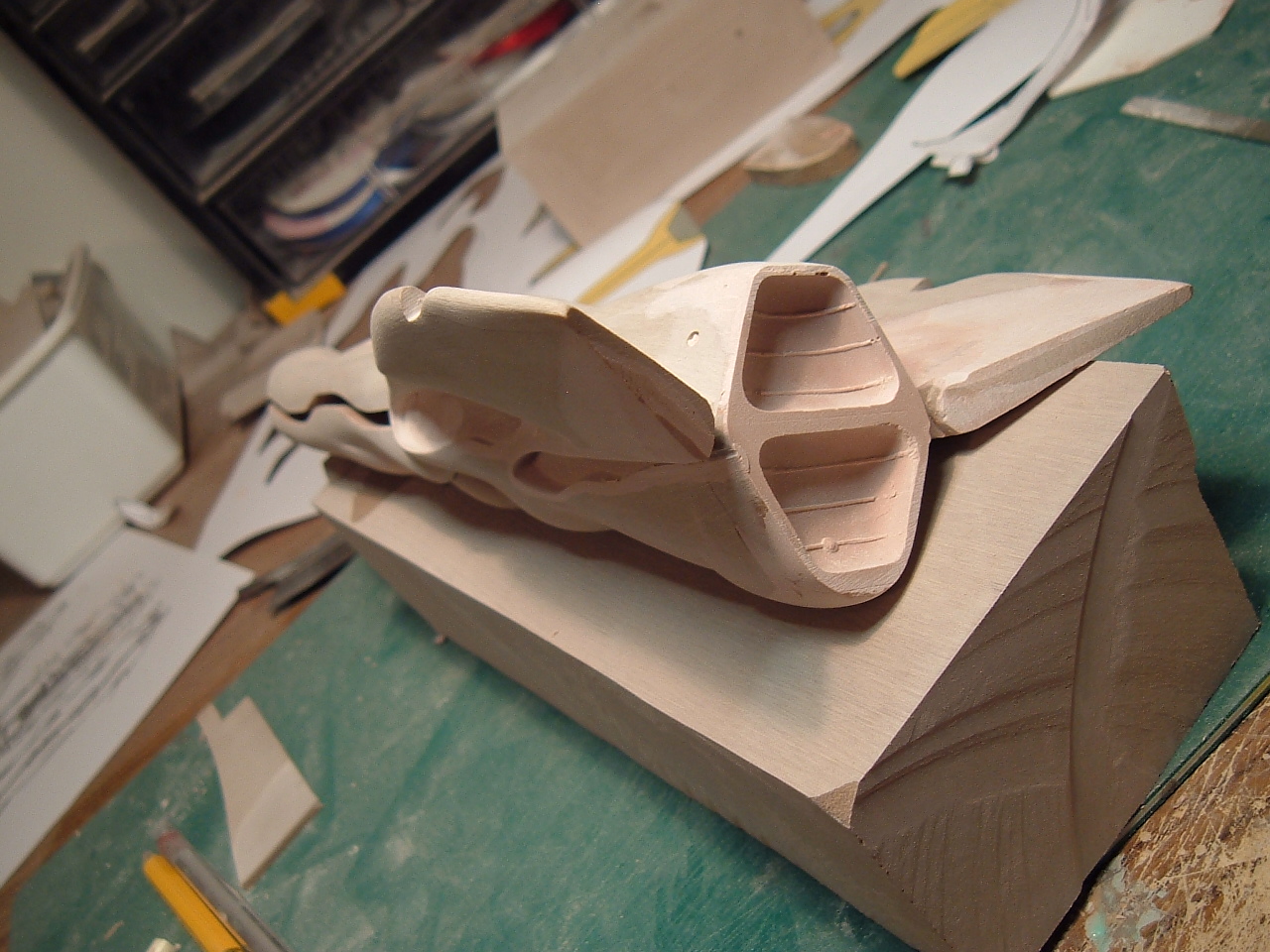

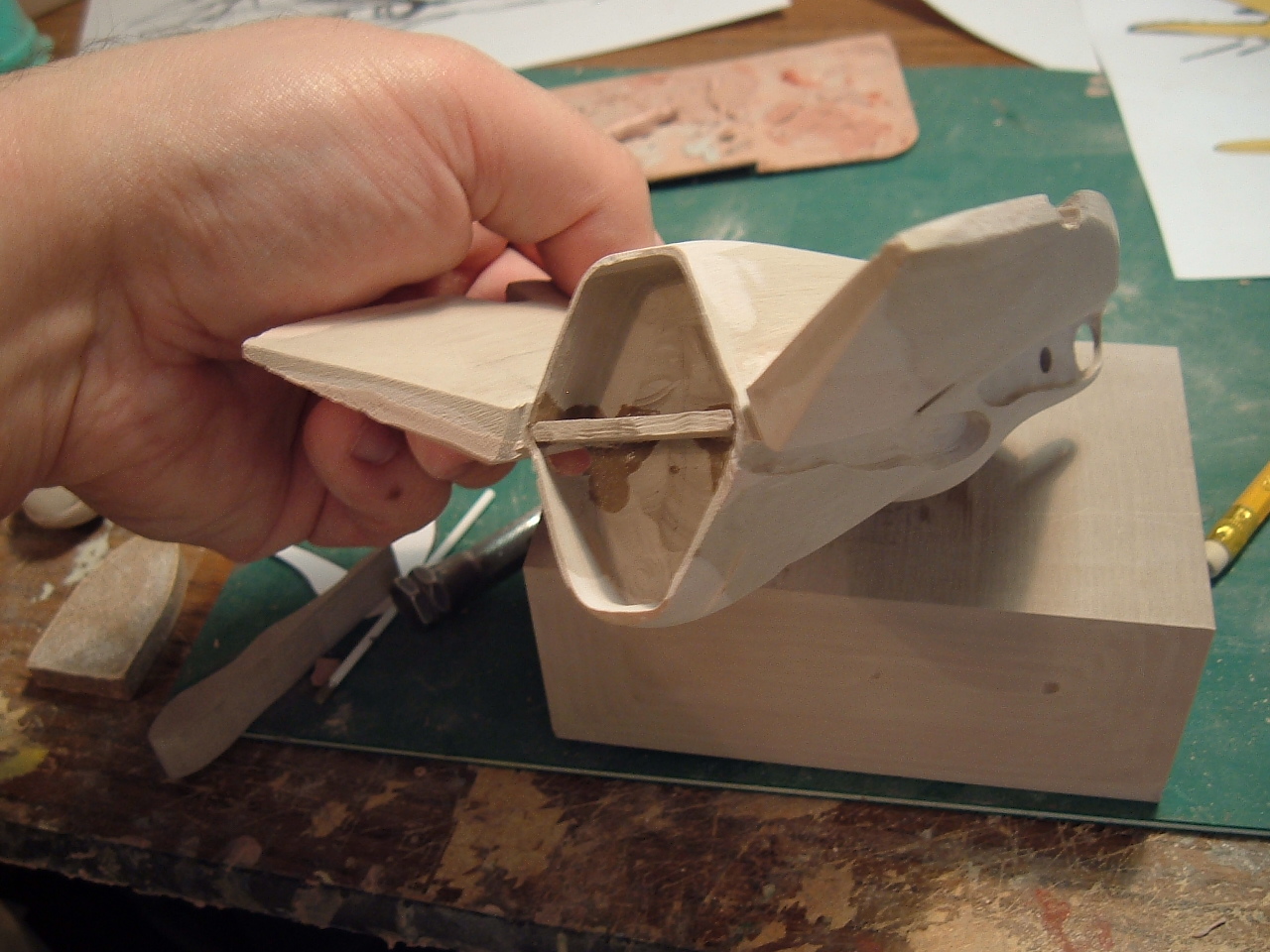

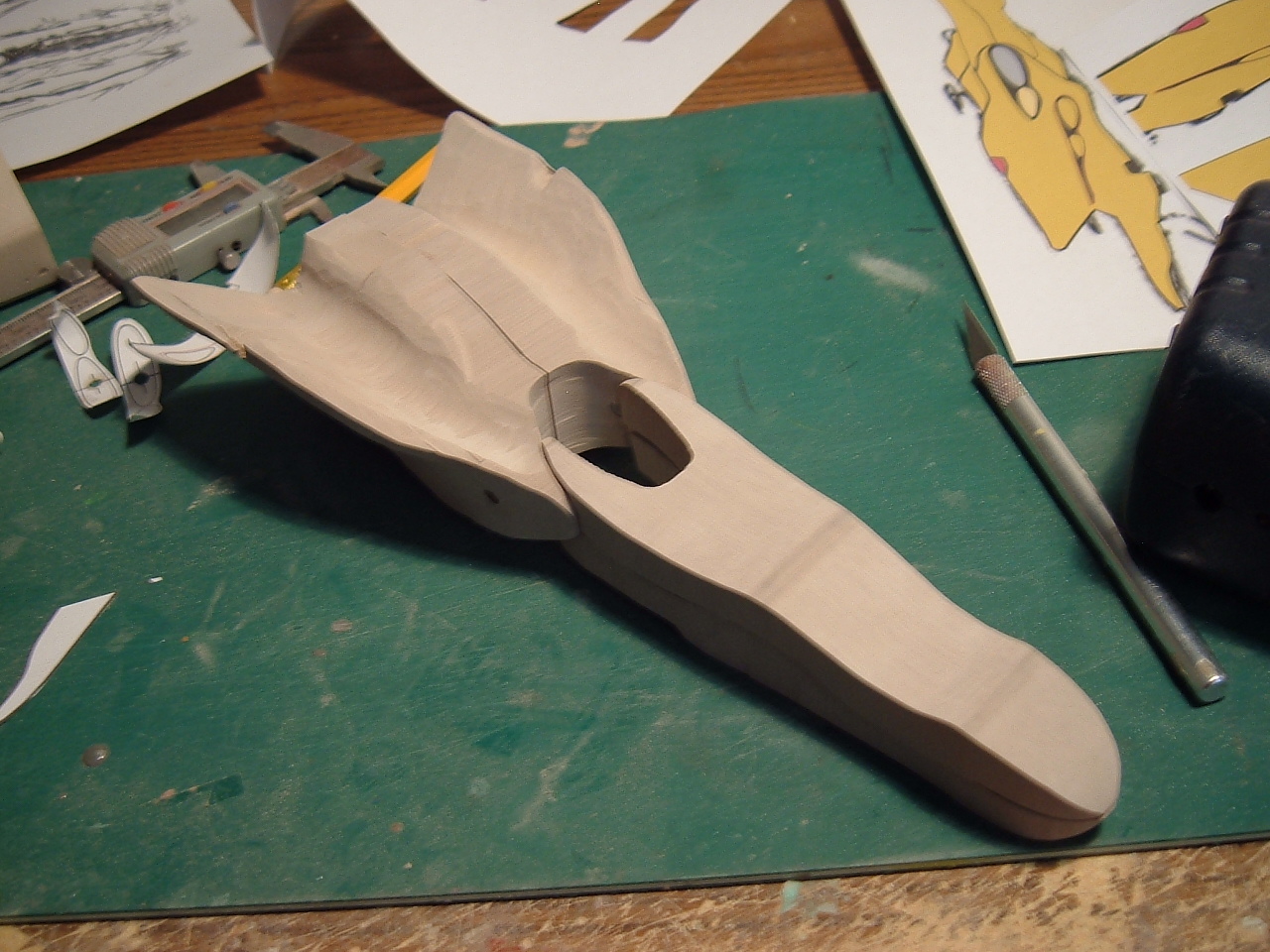

Pics 7, 8 and 9: the forward hulls having been further refined. Some crude tab-and-groove technology was used to align the hulls while they are shaped. Details will, of course, come later.

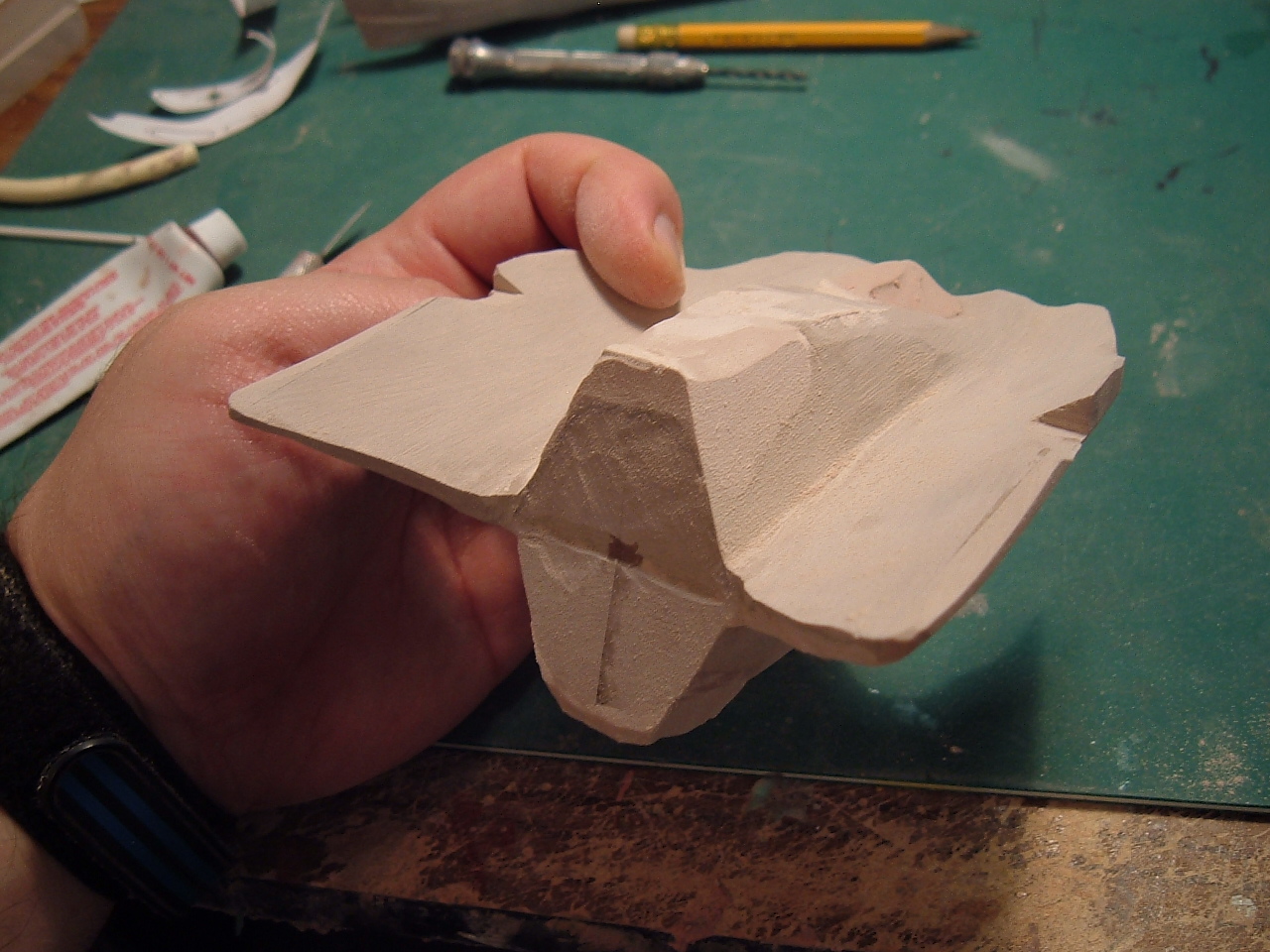

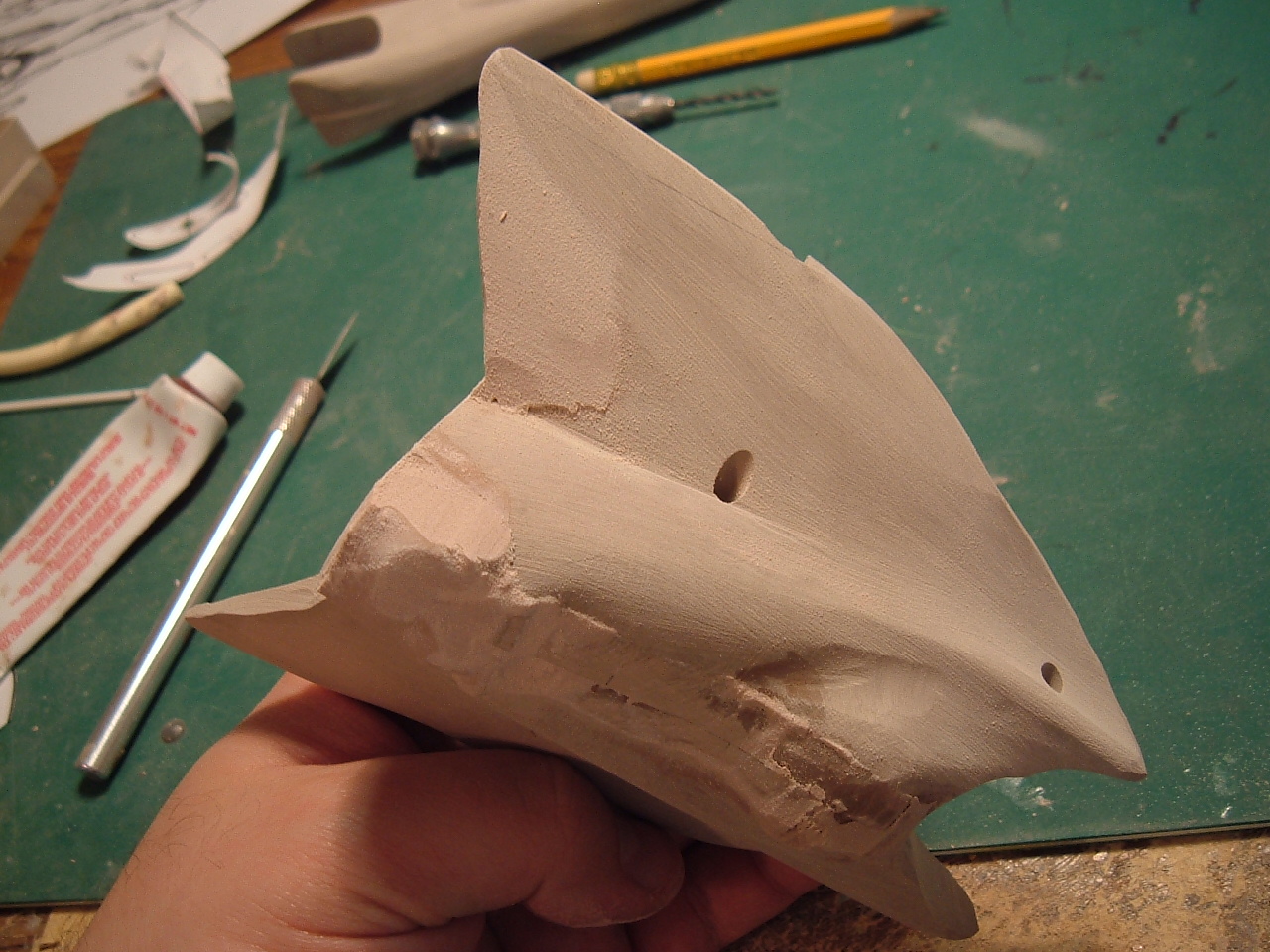

Pics 10 and 11: the aft hull, undergoing some minor putty work and re-shaping to match the line-art. As usual, the various views of the ship tend to not be in harmony with each other, but not nearly as bad as when I was working on the Destroids. The hull is actually a bit further along than is sown in the pics, but I didn't want to let the update slip too far back. More pics to come next week, so stay tuned ;)












0

Share this post


Link to post
Share on other sites

Captain's log: September 17th.

Hi everyone! There is no rest for the wicked, especially when they scratchbuild…

Though I could have postponed the update, I was quite happy about the level of progress that I made in the last few days, so I figured I'd share.

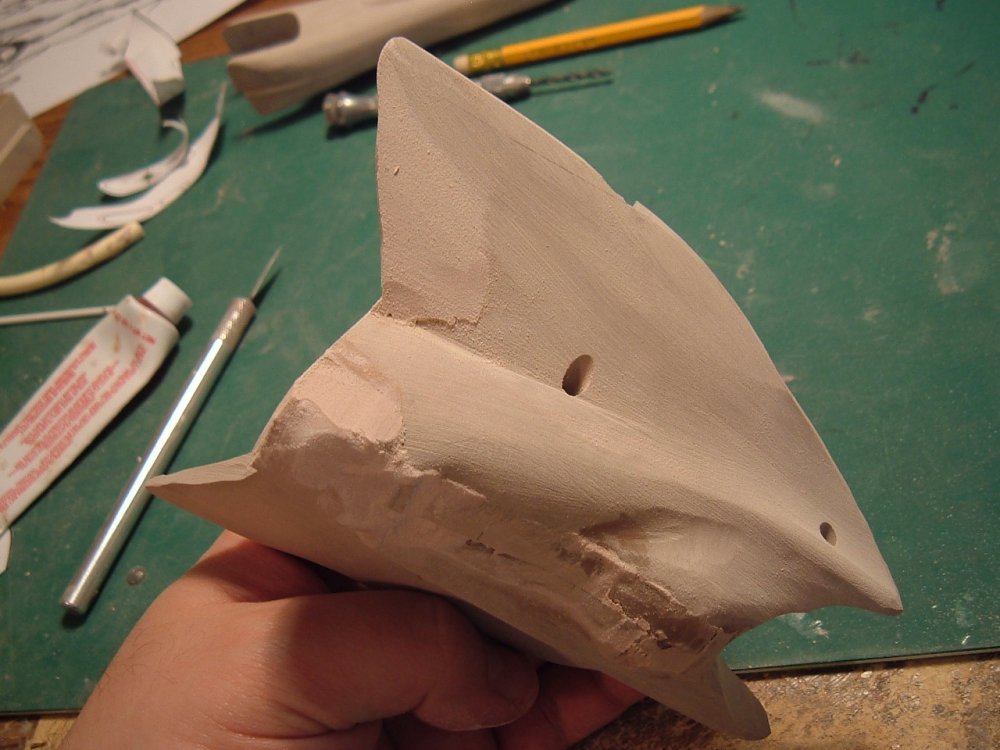

Pic 1: though initially neglected, the rear of the ship is finally getting some much-needed attention. As you can see, I've done some crude hollowing of the area that will become the main thrusters. Precision isn't necessary in this particular operation, as the actual shape of the thrusters will be achieved by squashing a male plug (made from the piece I'm holding in the pic) into the cavity filled with polyester putty.

Pic 2: this same "putty squashing" method will be used to achieve the openings of the eye-like sensor pods on each side of the hull. But before I do that, the hull has to have the general areas around the openings carved out.

Pic 3: back to the aft thruster. I have made a crude separator to act as a visual guide as I calculate the shapes and carve-out the plug pieces

Pic 4: here, you can clearly see the plugs sitting in the unfinished cavities. I want to ensure that the cavities I dremeled are large enough and deep enough, so lots of checking and re-checking.

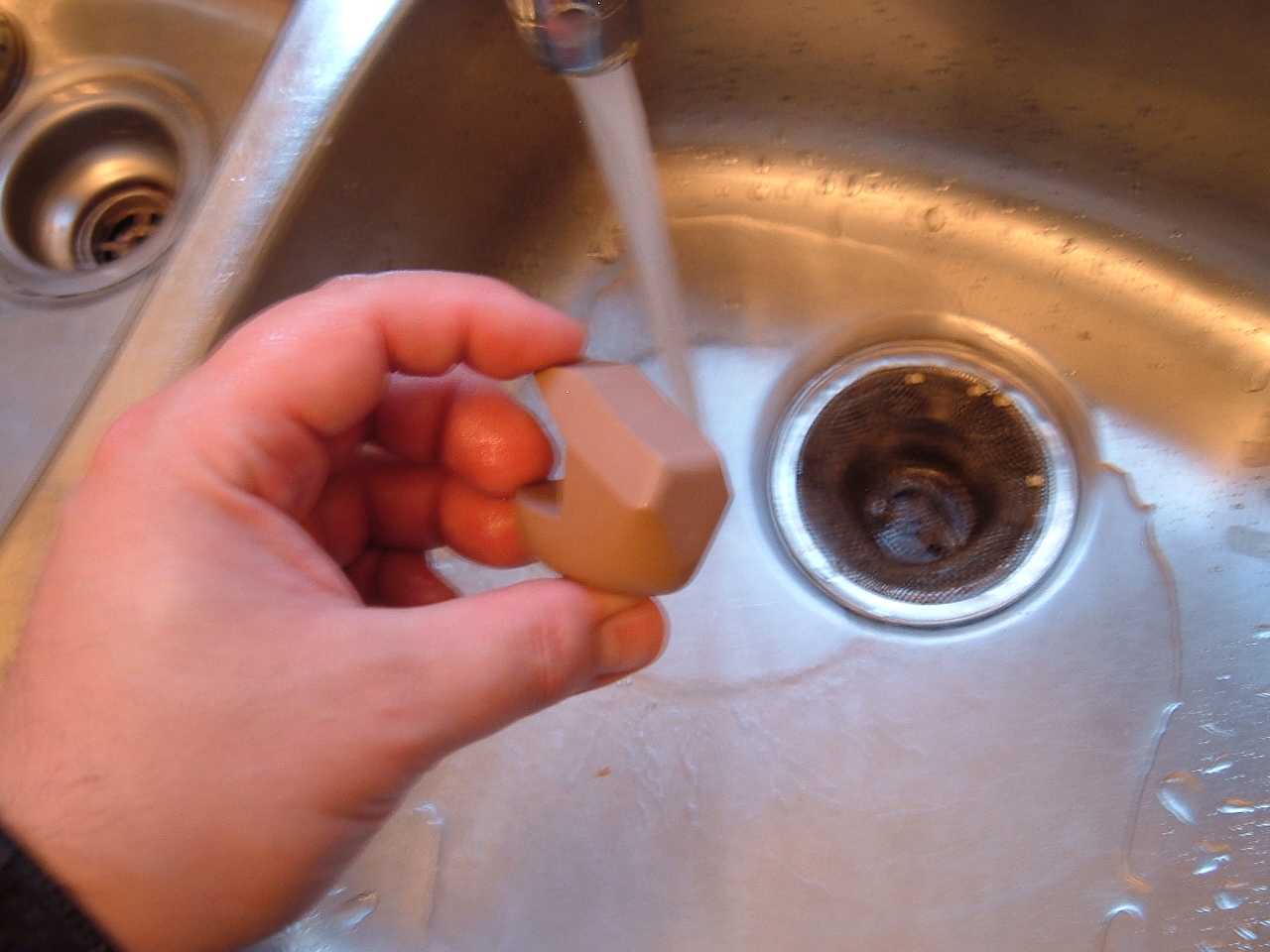

Pic 5: the plugs are given a generous coat of mold release and placed aside. Then, I mix up some polyester putty and place a good amount inside the cavity and then press the plug gently into the putty… Sometimes it feels (and looks) like I'm making a complete mess of the masters, but fear not, there is a method to my madness...

Pic 6: the same procedure is used for the rear thrusters, and with excellent results! The crude, horizontal lines are merely guides for the thrust diverter fins which will be added later. The same piece that was used as a plug will be segmented and made into the fins, and since one is moulded from the other, the fins will fit perfectly, like a glove!

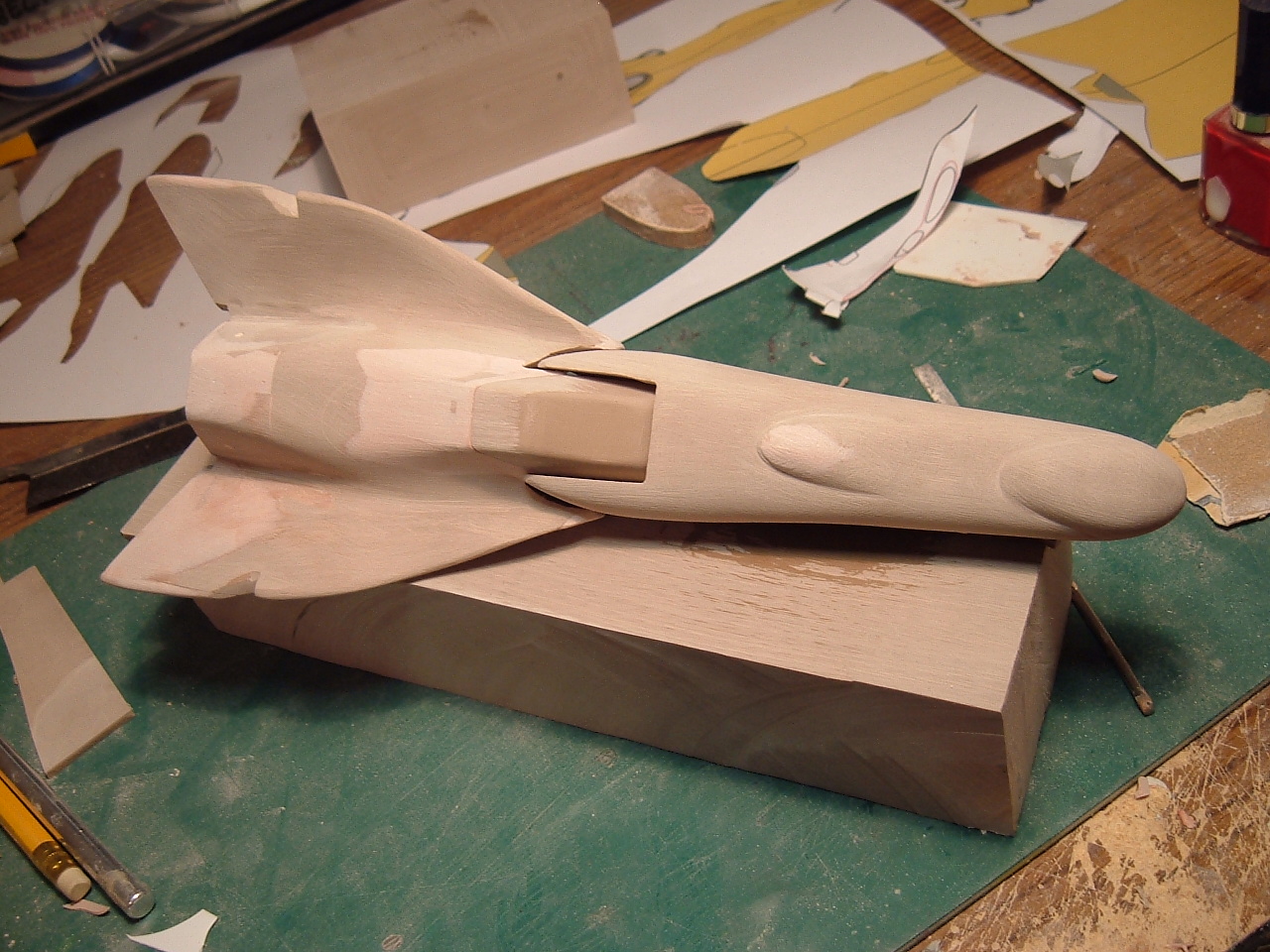

Pics 7, 8 and 9: aaaah, now it's really starting to look like a ship! The overall shape of the craft is almost there; just a few minor details to adjust here and there, but I'm really excited; all that work is finally starting to bear fruit… Those Microns will rue the day they crossed paths with Quamzin!!!
