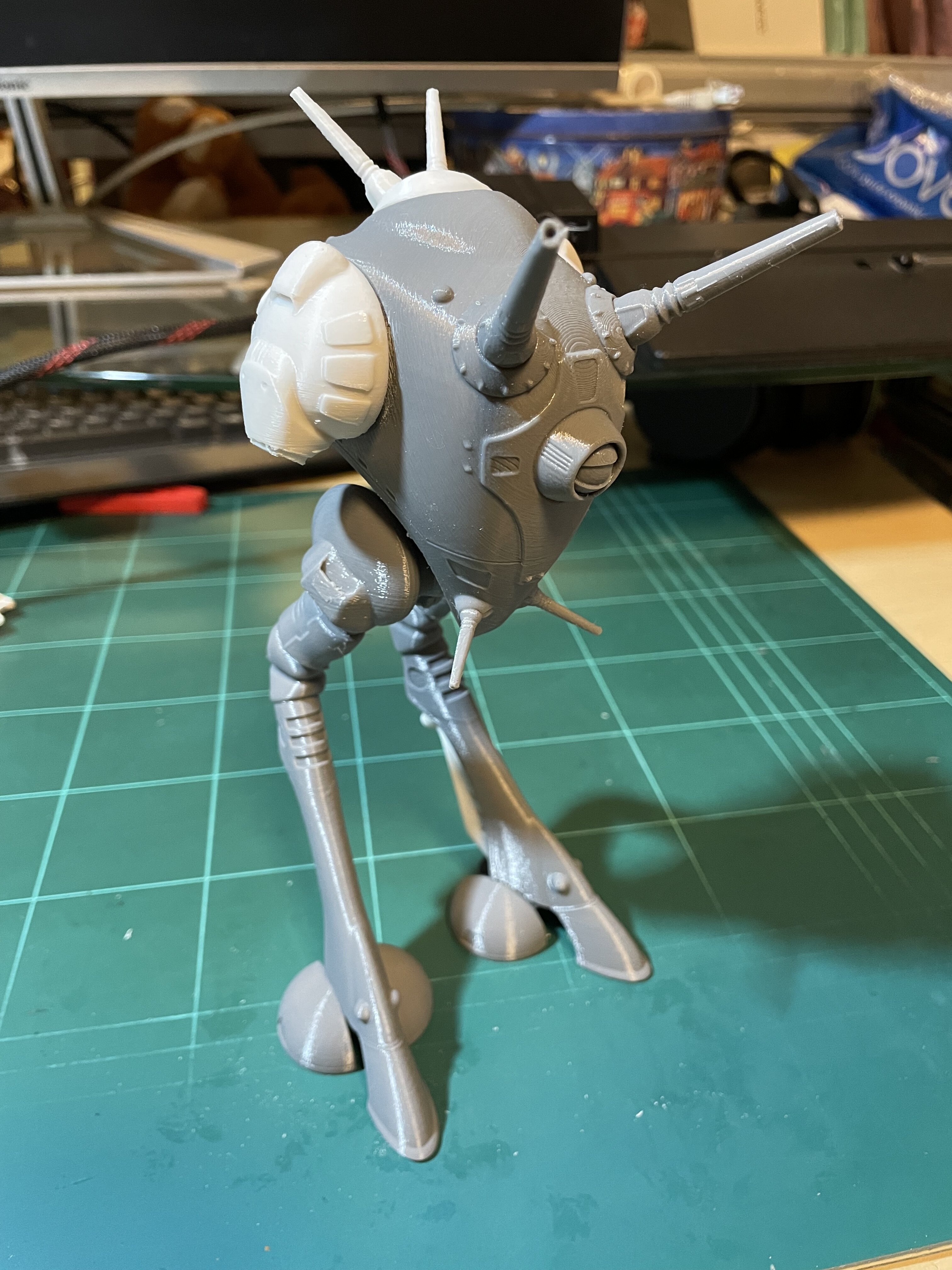

  1. Very cool models Just remember to make plan for sanding as the end product is a bit rough and will need to be sanded down .Is the models thin walled or solid ? What scale do you intend to use for print ?

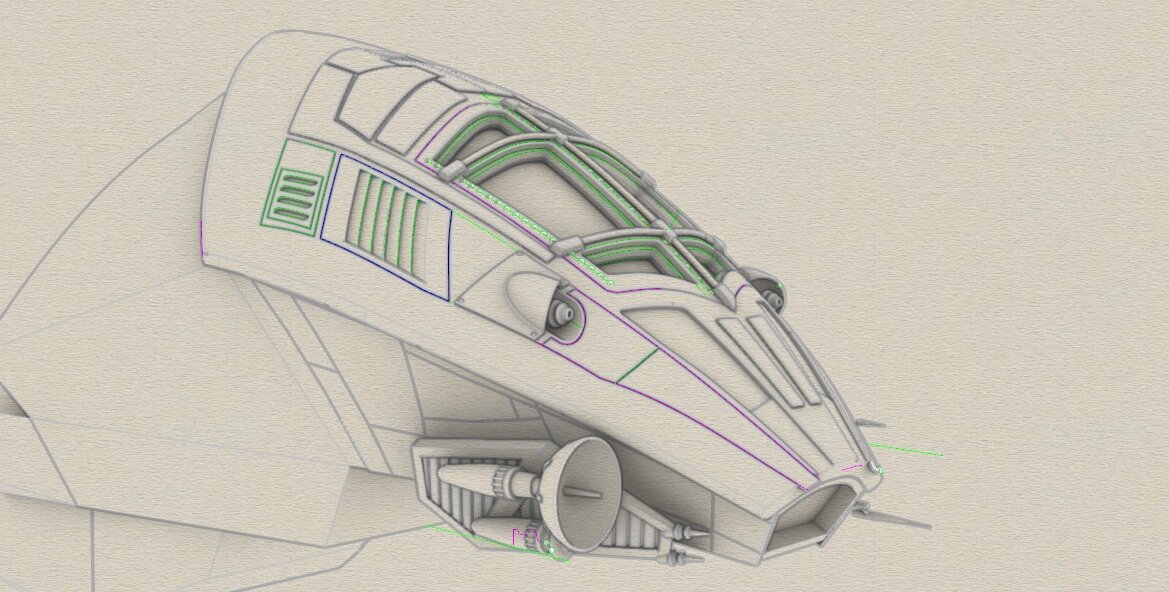

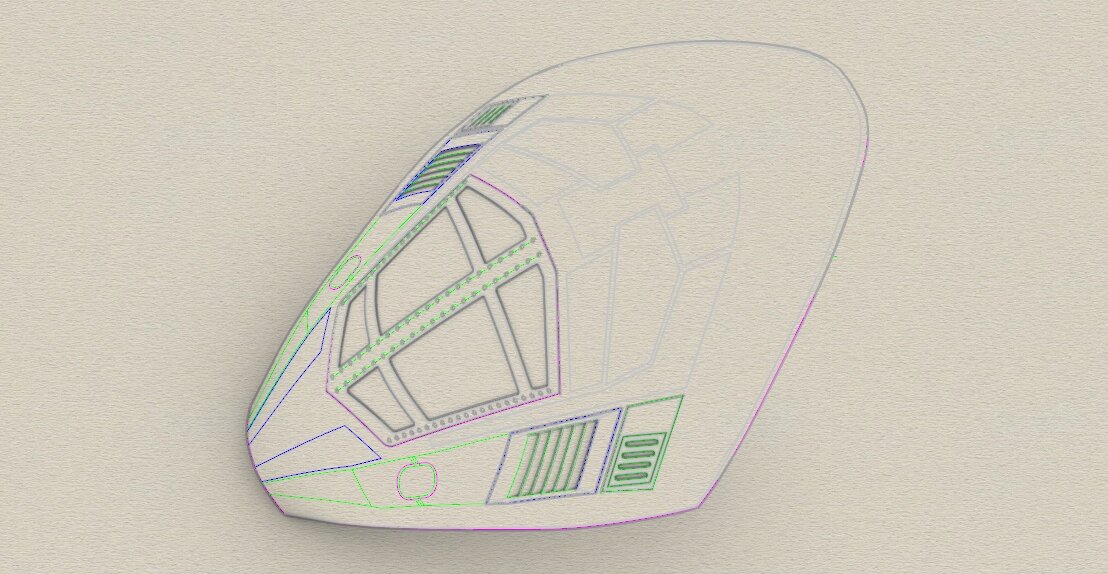

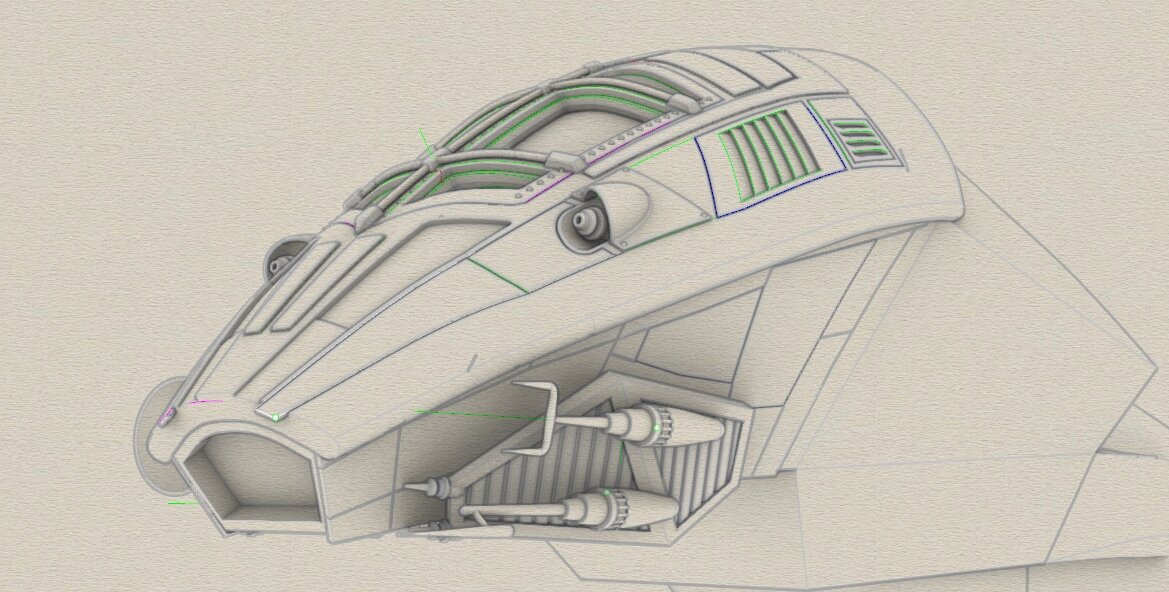

  2. VF-1S head unit

    Send me your mail address and what format you want it in - currently in Rhino 3D
  3. VF-1S head unit

    Maybe you can print a version of arm - I still have CAD version of that arm some where ...
  4. VF-0S

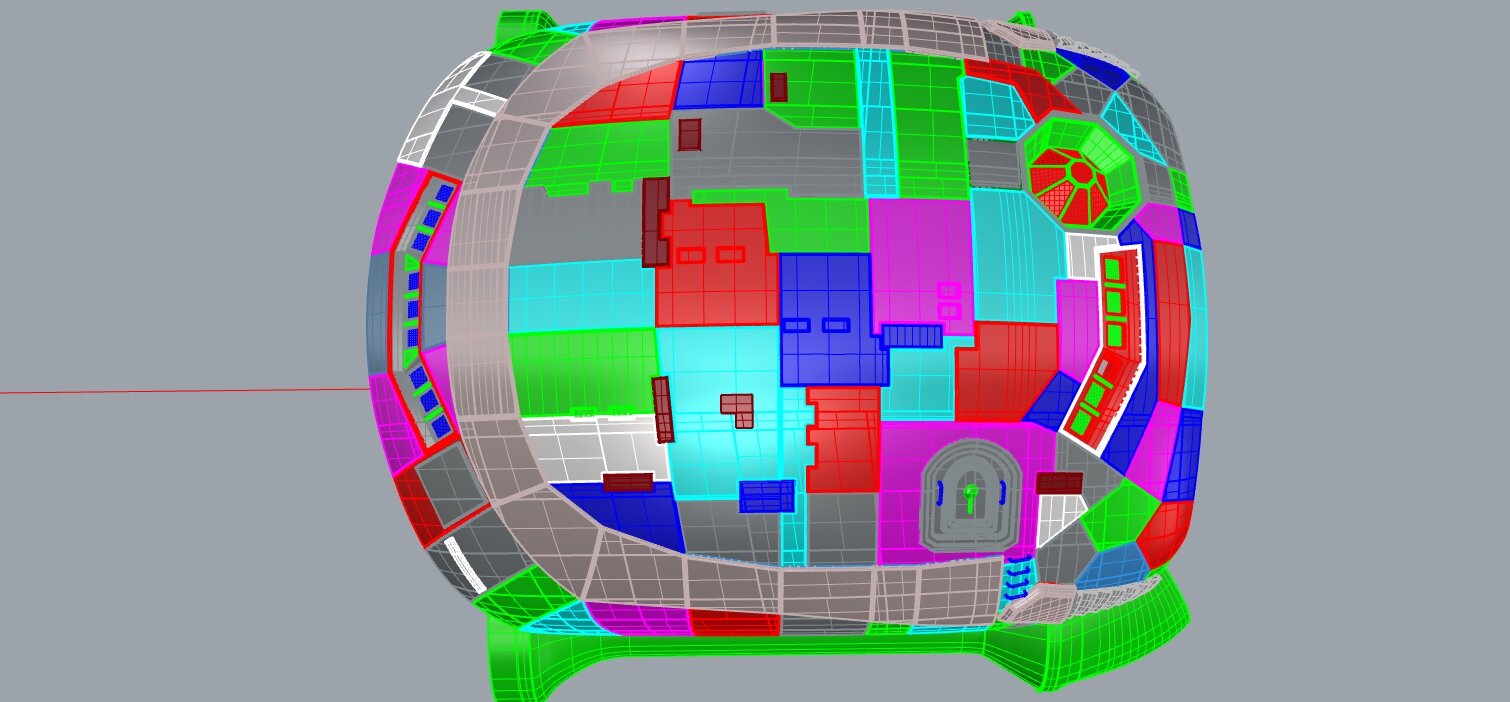

    Hi 3D- Brainx Nothing that fancy , they are CAD points , like lines and surfaces , they are place holders ( ref points ) I reuse while working or measure from .These are pics from Rhino3D , everything except for pilot is surface model ( CAD), not polygons. Once I have modeled it all , I will convert to polygons then export to Cinema4D or Blender.
  5. VF-0S

    Small updates
  6. Toy Manufacturing

    The whole process is based around the mold - how good it is and the process around it . Maybe slightly off center to this topic - Arcadia and Other companies uses old established methods of production that has not changed in many years same process , same waste and same issues . We , us the customers pay for all the processes used even hidden ones - R&D , mold design and even the guy that removes the waste is factored in by a "bean" counter ( financial ). They would not start a project if there was any indication of marginal profit , we still pay for injection molding machine , even if it is paid for because it then becomes cheap profit . What would be interesting would be to look at the old versus something like 3Dprint , manufacturing on demand ... That is future where small companies will manufacture on demand. Any just my thought.
  7. Old YF-19 model

    Will think about it - I have a old Rapman 3.2 3D printer , but real world pressure has been bad last year so only did a tests . Maybe after Sep 2017 when most my real world projects finish . What printer do you use and what scale are you thinking off . I will need to tinker with this model of course
  8. Old YF-19 model

    Been a while, I needed a short break from the VF-0S . Fixed some small issue need to work on the under side .
  9. VF-0S

    Agreed - Maybe we should CAD stuff in Workshop forum ....... with all the 3D printing
  10. VF-0S

    Very slow progress .
  11. Great then modeling is all sorted
  12. Doing the 3D model is easy , getting the sizes correct is the issue . If somebody can do a small sketch with some sizes or supply some reference material that will help .
